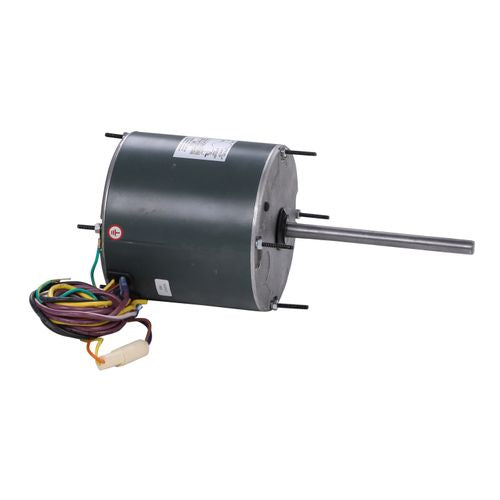

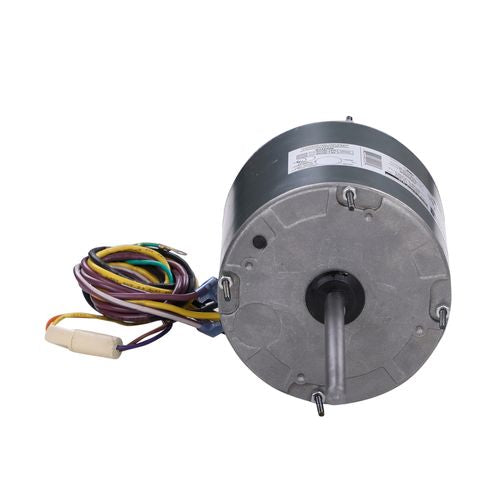

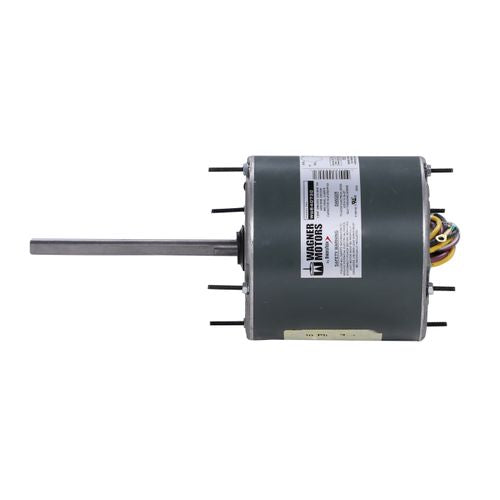

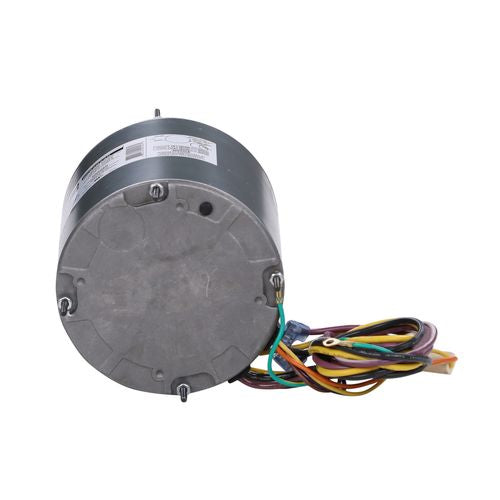

Diversech WG840730HT Condenser Fan Motor 1/2 HP 208-230 VAC

Product Description

The Diversitech WG840730HT condenser fan motor is suitable for aftermarket applications. This motor operates at 1/2 horsepower with a voltage of 208 to 230 VAC and runs at 1075 RPM. It is designed for reliability and ease of installation, featuring extended bolts and lead wires. The motor is electrically reversible and has a standard forty-eight frame motor casing size.

• Standard 48 frame motor casing size
• Electrically reversible
• High-temperature operation

Product Highlights

Ideal for HVAC systems needing a durable and efficient condenser fan motor for replacements or upgrades.

Product Information

Standard Information

• Product Type: Condenser Fan Motor
• Type: High Temperature

Technical Specifications

• Horse Power: 1/2
• Voltage: 208/230 V
• RPM: 1075
• Amperage: 4.2
• Speeds: 1
• Bearings: Ball
• Hertz: 60
• Rotation: Reversible
• Insulation Class: B
• Max Ambient Temperature: 158 °F
• Frame: 48
• Duty: Continuous Air Over
• Overload Protection: Thermally Automatic
• Body Diameter: 5.625 inches
• Capacitor: 10/370
• Enclosure: Totally Enclosed
• Motor Type: PSC
• Mounting: Belly Band
• Shaft: 1/2 inches x 5 inches
