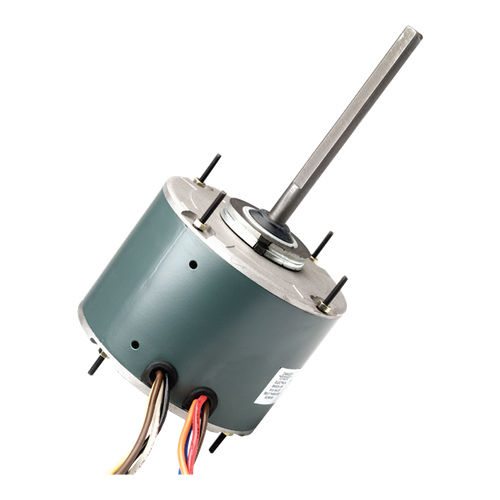

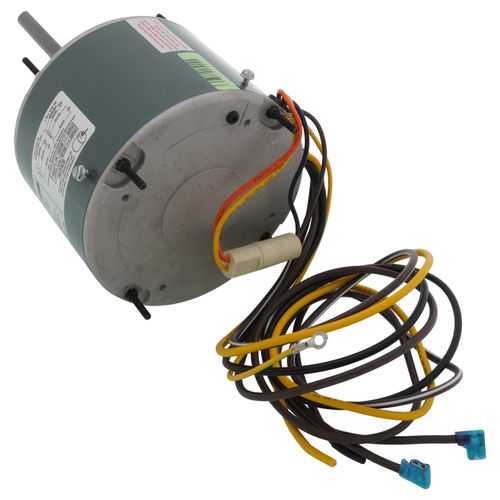

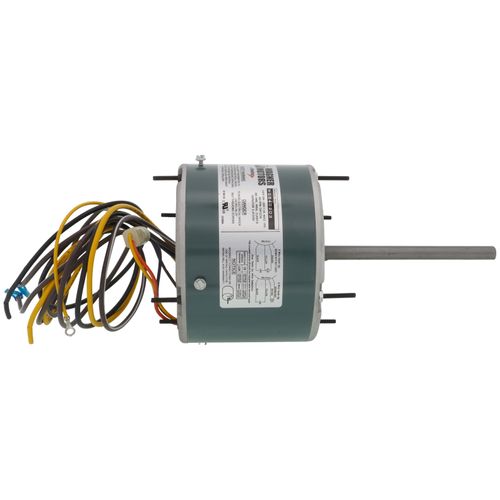

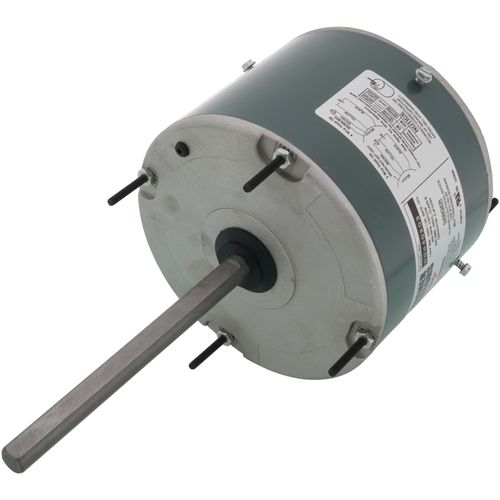

Diversech WG840203 Condenser Fan Motor 1/6 HP 825 RPM

Product Description

The Diversitech WG840203 condenser fan motor is built for aftermarket use. This 1/6 horsepower motor operates efficiently at 208/230 volts and spins at 825 RPM. It is designed for straightforward installation with extended bolts and lead wires. The motor features automatic thermal overload protection and is electrically reversible to fit various applications.

• Standard 48 frame motor casing
• Reversible rotation for flexibility
• Automatic thermal overload protection

Product Highlights

Experience dependable performance with this condenser fan motor ideal for HVAC applications.

Product Information

Standard Information

• Product Type: Condenser Fan Motor
• Horse Power: 1/6

Technical Specifications

• Voltage: 208/230V
• RPM: 825
• Amperage: 1.3
• Speeds: 1
• Bearings: Ball
• Hertz: 60
• Insulation Class: B
• Max Ambient Temperature: 140 °F
• Frame: 48
• Duty: Continuous Air Over
• Overload Protection: Automatic
• Shaft: 1/2 inches x 5 inches
