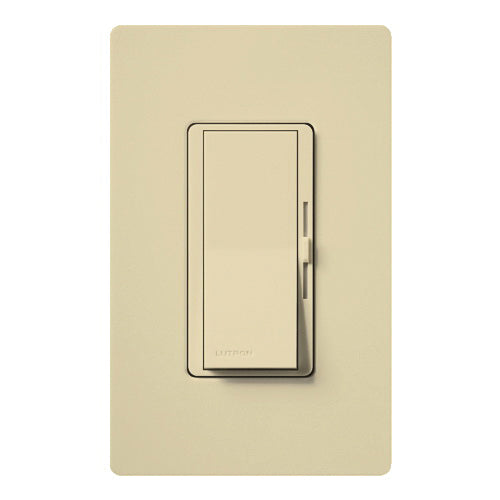

Diva DVSTV-IV 3-Way Dimmer Switch With Switching Box 120 to 277 VAC 8 A 50 mA 1 Poles

Product Description

The Diva DVSTV-IV is a 3-way dimmer switch from Lutron Electronics designed to manage lighting in a controlled and efficient manner. This dimmer operates at 120 to 277 VAC with a maximum current of 8 A, suitable for fluorescent and LED lamps.

• Operates within a voltage range of 120 to 277 VAC
• Paddle/slide control for easy light adjustment
• Suitable for indoor use only

Product Highlights

This dimmer switch combines functionality and style. It features a large paddle switch and a captive linear-slide control for easy light management, returning to your preferred setting with just a touch.

Product Information

Standard Information

• Manufacturer: Lutron Electronics
• Brand: Diva

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 8 A, 50 mA
• Control: Paddle/Slide
• Type: 3-Way
• Dimensions: 4.69 in H x 2.94 in W x 0.3 in D
• Enclosure Type: NEMA 4/10
• Material: Plastic
• Frequency Rating: 50/60 Hz
• Temperature Rating: 32 to 104 deg F
• Insulation: Class 1
• Start Type: Preset
• Operation Mode: On/Off
