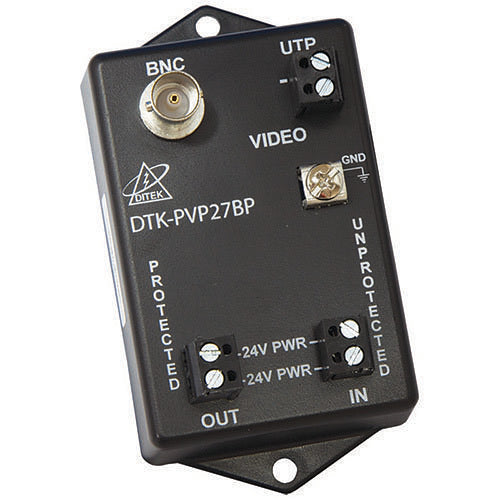

DITEK DTK-PVP27BP Surge Suppressor/Protector for Coaxial Cable Connection 12V/24V

Product Description

The DITEK DTK-PVP27BP is a dedicated surge protector designed to shield fixed analog CCTV and HDCCTV cameras operating on coaxial cabling systems. This surge suppressor integrates passive Balun conversion, enhancing compatibility with varied camera systems. It also features a hybrid design combining multi-stage SAD technology with a 12/24 voltage circuit. This design is aimed at providing robust surge protection, ensuring safety and longevity of connected devices.

• Compact design efficiently combines power and video protection in one unit.
• Supports 12/24V circuits for power feeds, applicable to camera heaters, blowers, and defrosters.
• Features a single point ground setup which significantly reduces installation time and enhances protection.

Product Highlights

Engineered in the United States, the DTK-PVP27BP comes equipped with a 10-year limited warranty, demonstrating reliability and quality assurance. This model is also compliant with both TAA and NDAA, affirming its adherence to rigorous standards.

Product Information

Standard Information

• Brand: DITEK
• MPN: DTK-PVP27BP

Technical Specifications

• Type: Surge Suppressor/Protector
• Input Voltage: 12V AC, 24V AC
• Output Voltage: 12V DC, 24V DC
• Connectivity: BNC, Terminal Block
• Dimensions: Width 2.1 inches, Height 1.4 inches
• Weight: Approximately 2.57 ounces
