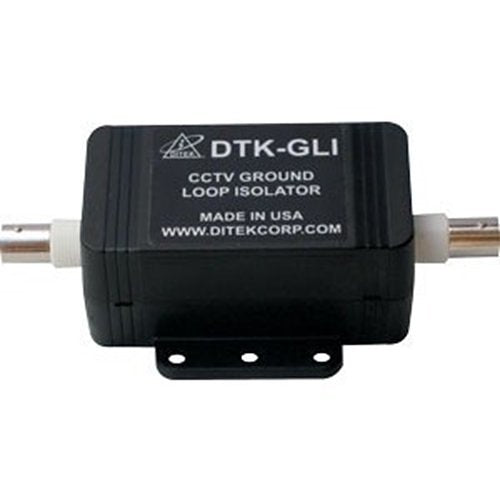

DITEK DTK-GLI Ground Loop Isolator for Two-Way Communication

Product Description

The DITEK DTK-GLI Ground Loop Isolator is engineered to prevent video-signal distortion caused by ground loops in two-way communication and control systems. This device is crucial for maintaining the integrity of video transmissions in various installations.

• Passive device with a hybrid circuit design
• BNC female connections for straightforward installation
• Designed for durability with an ABS housing

Product Highlights

This isolator is designed to operate effectively between -40F to 158F, with a common mode ground loop rejection rate of 90 dB at 50/60 Hz, ensuring reliable performance under diverse environmental conditions.

Product Information

Technical Specifications

• Connection Type: BNC Female In/Out
• Impedance: 75 Ohms
• Insertion Loss: 1.1dB at 5 MHz
• Dielectric Withstand Voltage: 1000 V AC @ 60Hz for 2 seconds
• Operating Temperature: -40F to 158F
• Maximum Humidity: 95% non-condensing
• Dimensions: 1.3 inches H x 3.0 inches W x 2.4 inches D
• Weight: 4 oz
• Housing Material: ABS
• Warranty: Ten Year Limited
