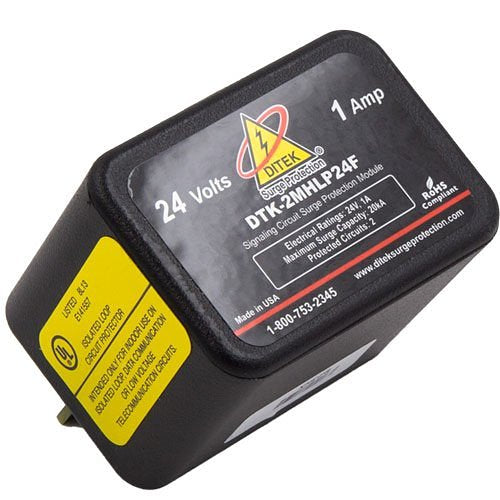

DITEK DTK-2MHLP24F Data and Signaling Circuit Surge Protection Module for 24V Circuits

Product Description

Engineered for reliability, the DITEK DTK-2MHLP24F Surge Protection Module provides robust defense against power surges for 24V data and signaling circuits. Suitable for trade environments requiring sturdy, dependable modules to secure sensitive electronic equipments from unpredictable electrical spikes.

• Supports up to two 24V pairs with load removal technology.
• Incorporates Multi-stage SAD technology ensuring optimal protection.
• Modular design with snap-track bases enabling protection of up to 10 pairs with a common ground.

Product Highlights

Featuring a field replaceable modular edge card connection, this surge protector streamlines fast installation and is suitable for both AC and DC circuit setups. A critical component for safeguarding voice and data applications, the DTK-2MHLP24F enhances stability across systems.

Product Information

Standard Information

• Input Voltage: 24V DC
• Technology: SAD

Technical Specifications

• Dimensions: Height: 1.9 inches, Width: 1.4 inches, Depth: 2.1 inches
• Compliance: TAA Compliant, NDAA Compliant, ROHS Certified
• UNSPSC Code: 39121610
• Manufacturer: DITEK Corporation
• Warranty: 10 Year Limited Warranty
