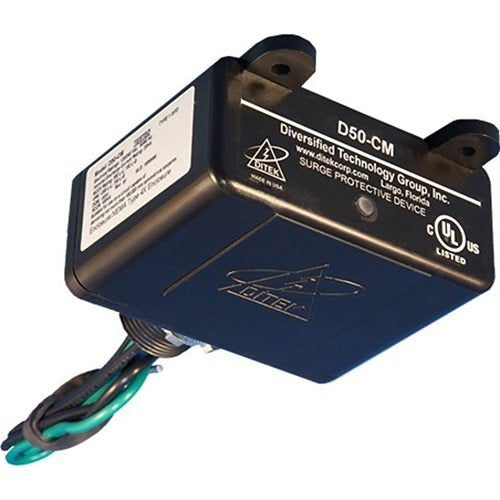

DITEK D50-CM Surge Protective Device 120/240VAC 50kA/Phase Electrical Panel Protection

Product Description

The DITEK D50-CM is a surge protective device designed to safeguard your electrical panels, AC disconnects, irrigation systems, and residential pumps and motors from power surges. Offering 120/240V Split Phase protection, this device is essential for effective electrical system defense.

• Hybrid technology featuring SAD and TP MOV™ ensures optimal surge protection.
• Built with a NEMA 4X weatherproof enclosure, making it suitable for various environmental conditions.
• Easy installation with a parallel connection that does not require a circuit breaker.

Product Highlights

This device is capable of handling surge currents up to 50,000 Amps per phase, thanks to its robust construction and advanced technology. The inclusion of a diagnostic LED aids in monitoring power, grounding, and surge protection status.

Technical Specifications

• Brand Name: DITEK
• Product Type: Surge Suppressor/Protector
• Input Voltage: 120V AC, 230V AC
• Width: 3.5 inches
• Height: 1.6 inches
• Weight (Approximate): 8 oz
• NDAA Compliance: Yes
• Warranty: 10 Year Limited
