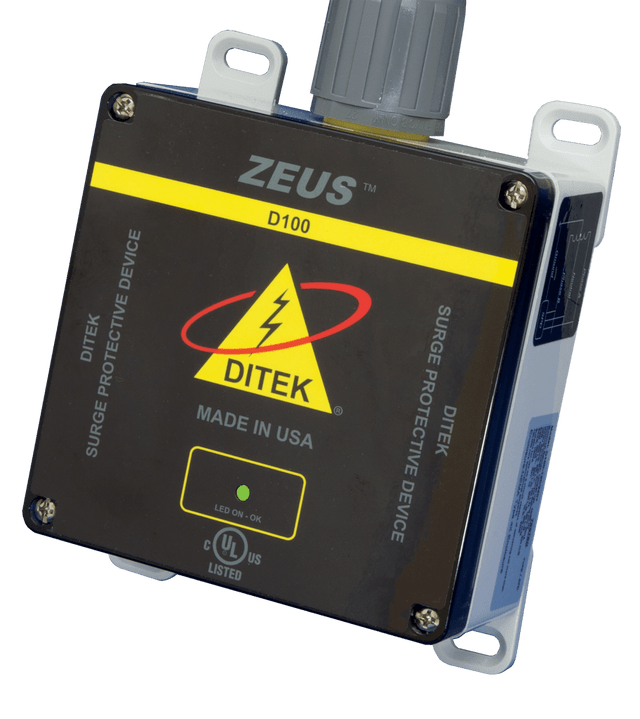

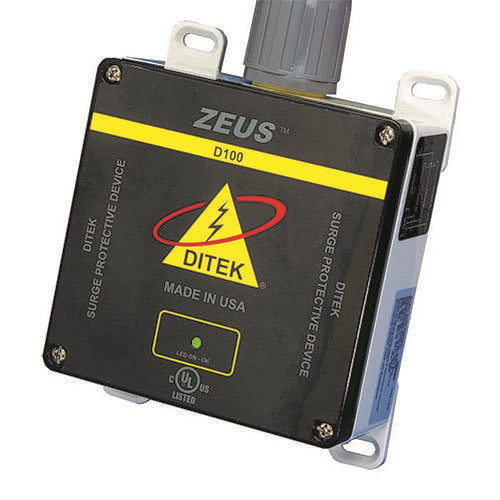

DITEK D100-120/2083Y Industrial Surge Protective Device, 100kA/Phase, 120/208VAC

Product Description

DITEK's D100-120/2083Y is an industrial surge protective device designed to protect AC power systems in challenging environments. With a surge current rating of one hundred thousand Amps per phase and fifty thousand Amps per mode, it ensures reliable performance. This device is suitable for electrical panels rated between two hundred and six hundred Amps, specifically protecting 120/208VAC three phase wye panels.

• Surge current rating of one hundred thousand Amps per phase.
• Compact size for close mounting to the electric panel.
• Diagnostic LED displays system power and functionality.

Product Highlights

Designed for maximum performance, the D100 series incorporates individually fused components. The compact design allows for minimal wire length, enhancing performance during installation.

Product Information

Standard Information

• Brand: DITEK
• Manufacturer: DITEK Corporation

Technical Specifications

• Input Voltage: 120V AC, 208V AC
• Output Voltage: 120V AC, 208V AC
• Surge Current Rating: 100kA/Phase
• Weight: 2 lb
• Dimensions: 4.7 inches (Width) x 6.5 inches (Height) x 2.4 inches (Depth)
• Material: Polycarbonate
• Operating Temperature: -32°F to 104°F
• Environmental Certification: ROHS
