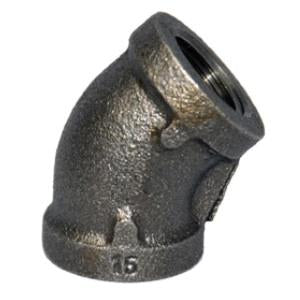

Directedair dab014-05 Black Iron 45 Degree Elbow 1/2 in

Product Description

The DIRECTEDAIR dab014-05 is a black iron 45-degree pipe elbow fitting rated for 150 lb pressure service. Constructed from iron with a standard black finish, this elbow changes pipe direction by 45 degrees in gas, compressed air, and general plumbing distribution systems. The 1/2-inch nominal size fits common supply line configurations found in residential and light commercial installations. Plumbers, pipefitters, and HVAC technicians install this fitting when routing pipe around obstructions or transitioning pipe runs at an angle. The 150 lb pressure class rating meets standard requirements for most low-pressure gas and air distribution applications.

This elbow is suited for use in black iron pipe systems, including natural gas distribution lines, propane supply runs, and compressed air headers in residential and light commercial settings. The 1/2-inch nominal size is a high-frequency size in branch supply and appliance connection runs. The 45-degree angle is commonly used alongside 90-degree elbows to navigate structural framing and equipment clearances during rough-in and service work.

Key Features

• Iron construction provides durability in gas and air distribution service
• 45-degree angle for directional changes without a full 90-degree turn
• 1/2-inch nominal pipe size fits standard threaded black iron pipe
• 150 lb pressure class rating suitable for low-pressure gas and compressed air systems
• Black finish standard for iron pipe fittings in gas service

Compatibility

Designed as a standard threaded fitting for use with 1/2-inch nominal black iron pipe in 150 lb pressure class piping systems.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter following local code requirements and IFGC guidelines where applicable. Shut off and depressurize the gas or air supply completely before disassembling any pipe joint. Apply an approved thread sealant or pipe compound rated for the service medium to all threaded connections. Do not over-tighten threaded iron fittings, as cracking can occur.

Technical Specifications

• Nominal Size: 1/2 inch
• Fitting Angle: 45 degrees
• Pressure Class: 150 lb
• Material: Iron
• Color: Black

Standard Information

• Brand: DIRECTEDAIR
• Manufacturer Part Number: dab014-05
