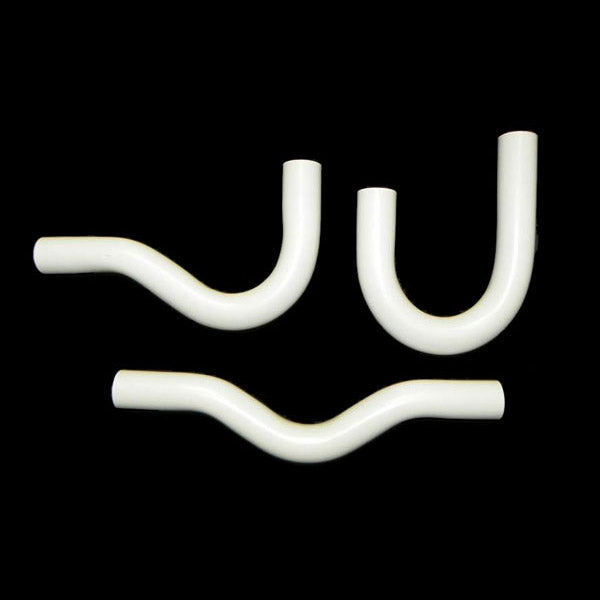

Directedair da3075j Pvc Condensate Trap 3/4 Inch Npt

Product Description

The DIRECTEDAIR da3075j is a PVC condensate trap designed to drain condensate water away from HVAC air handling equipment while preventing outside air from being drawn back into the system. Built from Schedule 40 PVC, it connects via a 3/4-inch NPT slip fitting and delivers full flow capacity to keep condensate moving under normal operating conditions. This trap is a standard component in split systems, air handlers, and fan coil installations where negative-pressure drain pans require a properly seated trap to maintain system efficiency and prevent drain pan overflow.

The da3075j is suited for residential and light commercial HVAC installations where a reliable, low-maintenance condensate management solution is needed. It is typically installed at the primary drain outlet of an air handler or evaporator coil drain pan. HVAC technicians use it during new installations or as a direct replacement when an existing trap is cracked, clogged, or undersized for the system drain line.

Key Features

• Schedule 40 PVC construction resists corrosion and chemical degradation from condensate water
• 3/4-inch NPT slip connection for straightforward integration into standard PVC drain lines
• Full flow capacity supports adequate condensate removal under normal system load
• Prevents negative-pressure air ingestion that can reduce system efficiency and cause drain pan backup
• Lightweight and easy to access for seasonal inspection and cleaning

Compatibility

Designed as an OEM-style replacement condensate trap for residential and light commercial HVAC systems using 3/4-inch PVC drain lines with standard NPT slip fittings.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler or fan coil unit before beginning any work on the drain assembly. The trap must be primed with water at startup to create the seal that blocks air ingestion. Verify local mechanical codes for minimum trap depth requirements, as drain pan negative pressure determines the required trap leg height.

Technical Specifications

• Material: PVC Schedule 40
• Connection Size: 3/4 inches NPT
• Connection Type: Slip
• Flow Capacity: Full flow

Standard Information

• Brand: DIRECTEDAIR
• Manufacturer Part Number: da3075j
