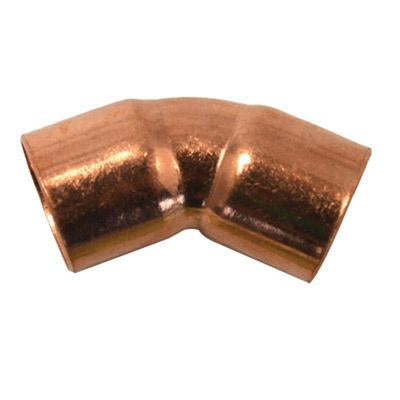

Directedair da014-11 45 Degree Copper Elbow 1-1/8 in

Product Description

The DIRECTEDAIR da014-11 is a 45-degree copper elbow fitting designed for joining copper refrigerant or fluid lines in HVAC and plumbing systems. Both connection ends are 1-1/8 inches, making this a same-size elbow for routing copper tubing through directional changes. The fitting is constructed entirely from copper and is manufactured to industry standards for dimensional accuracy and material composition. HVAC technicians and plumbers use this type of fitting when hard-piping refrigerant lines, chilled water systems, or similar copper-piped applications that require a 45-degree change in direction.

This elbow is suited for residential and light commercial HVAC installations, refrigeration piping, and copper plumbing applications where a 45-degree bend is required without field bending the tubing. It is appropriate for use wherever copper-to-copper sweat or press connections are made on 1-1/8 inch OD tubing. Installers working on split system refrigerant lines, chilled water distribution, or hydronic systems will find this fitting applicable to standard copper piping layouts.

Key Features

• 45-degree elbow geometry for directional routing without field-bending tubing
• 1-1/8 inch copper connection on both ends for same-size line transitions
• Full copper construction meets industry standards for material composition
• Dimensionally certified to industry standards for consistent fit during installation
• Compatible with standard sweat (solder) joining methods used in HVAC and plumbing

Compatibility

Designed as an OEM-style copper elbow fitting for use with 1-1/8 inch copper tubing in HVAC, refrigeration, and plumbing piping systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber. Shut off and recover any refrigerant or isolate and drain the fluid system before cutting into existing lines. Sweat soldering requires a properly cleaned and fluxed joint; follow applicable codes including IFGC and IPC for plumbing and mechanical applications. Avoid overheating the fitting during soldering, as excessive heat can compromise the integrity of the copper material.

Technical Specifications

• Fitting Type: 45-Degree Elbow
• Connection Size 1: 1-1/8 inches
• Connection Type 1: Copper
• Connection Size 2: 1-1/8 inches
• Connection Type 2: Copper
• Material: Copper

Standard Information

• Brand: DIRECTEDAIR
• Manufacturer Part Number: da014-11
