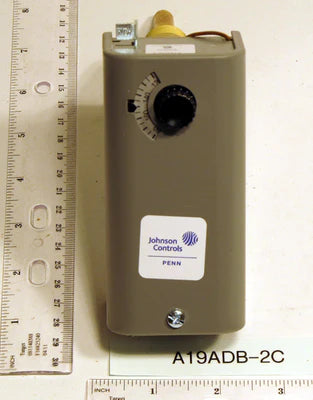

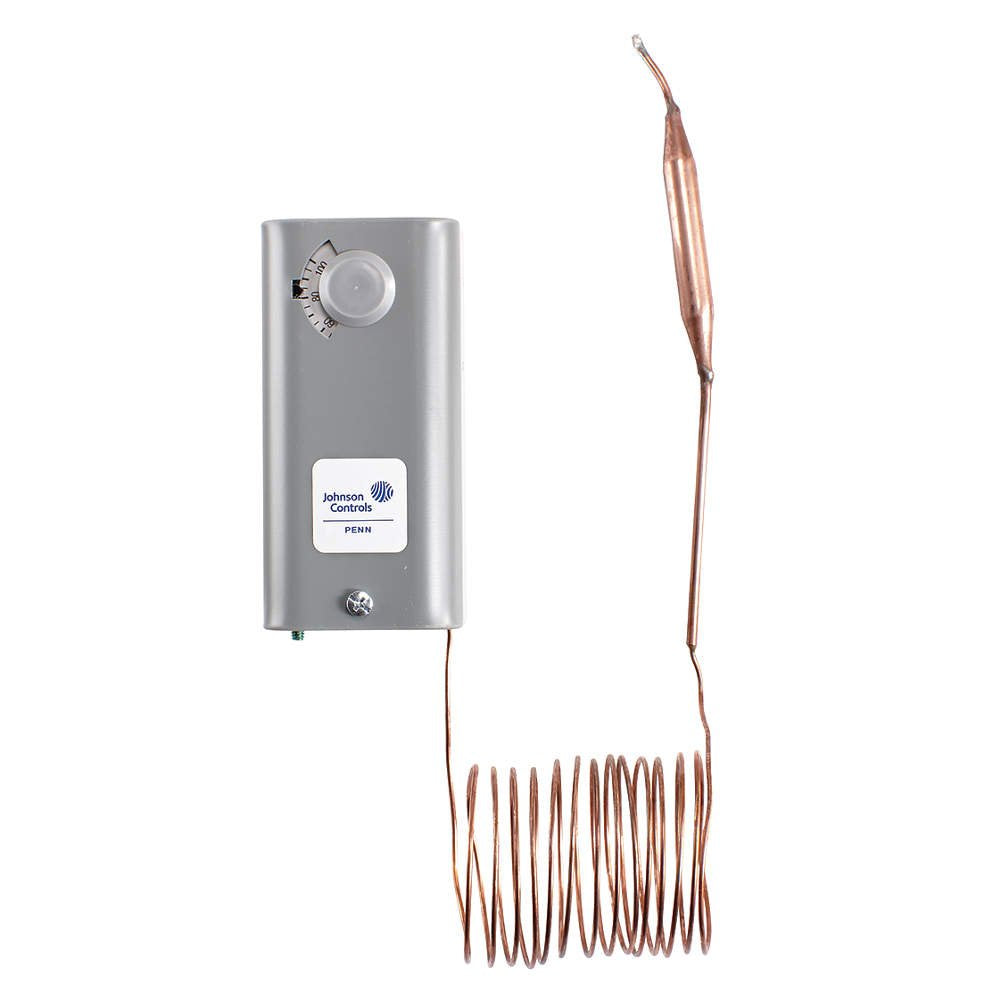

Johnson Controls A19ADB-2C Line V Mechanical Thermostat, 24 to 600 VAC, 10 Amp

Product Description

The Johnson Controls A19ADB-2C is a mechanical thermostat designed for line voltage applications. It operates within a voltage range of twenty-four to six hundred VAC and supports a maximum current of ten amps. This thermostat is suitable for various heating and cooling systems.

• Voltage Range: 24 to 600 VAC
• Current Rating: 10 amps
• SPST Switch Action

Product Highlights

This specific model is effective for hot water cutout and temperature control in industrial settings, ensuring reliable operation in various temperature ranges. The device is built to last and withstand harsh conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A19ADB-2C

Technical Specifications

• Control Type: Direct Immersion
• Temperature Range: 100 to 240°F
• Amperage: 10 Amps
• Connection Type: 1/2 inch immersion sensor
• Weight: 4 lbs
• Dimensions: 10.5 x 3 x 2.5 inches
