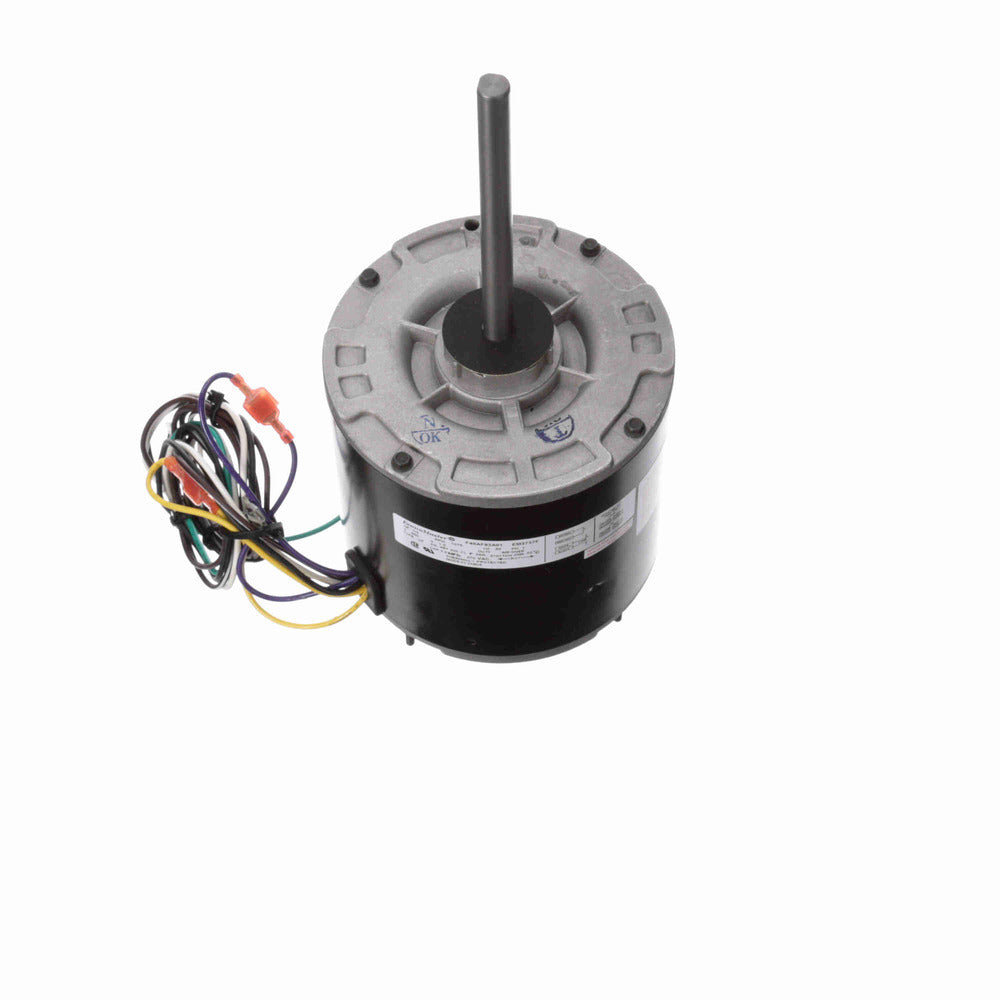

Century EM3737F Condenser Fan Motor 1/3 HP 460V 1075 RPM

Product Description

The Century EM3737F condenser fan motor is designed for efficient and reliable performance. This model is commonly used in HVAC systems to drive the condenser fan. It provides smooth operation with durable construction.

• 1/3 horsepower motor
• 1075 RPM speed
• 460 volts

Product Highlights

This fan motor is ideal for HVAC applications, ensuring the optimal performance of the condenser fan. The ball bearings and auto overload protection enhance reliability and durability.

Product Information

Standard Information

• Brand: Century
• Model: EM3737F
• Type: Motor > HVAC/R Motor > Condenser Fan Motor
• Class: Condenser Fan Motor

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/3
• KW: 0.25
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 460
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 1.3
• Shaft Type: Flat
• Shaft Extension: 6 inches
• Assembly: Any
• Shaft Diameter: 0.5 inches
• Certification: CSA, UL Recognized
• Insulation Class: F
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
• Duty: Air Over
