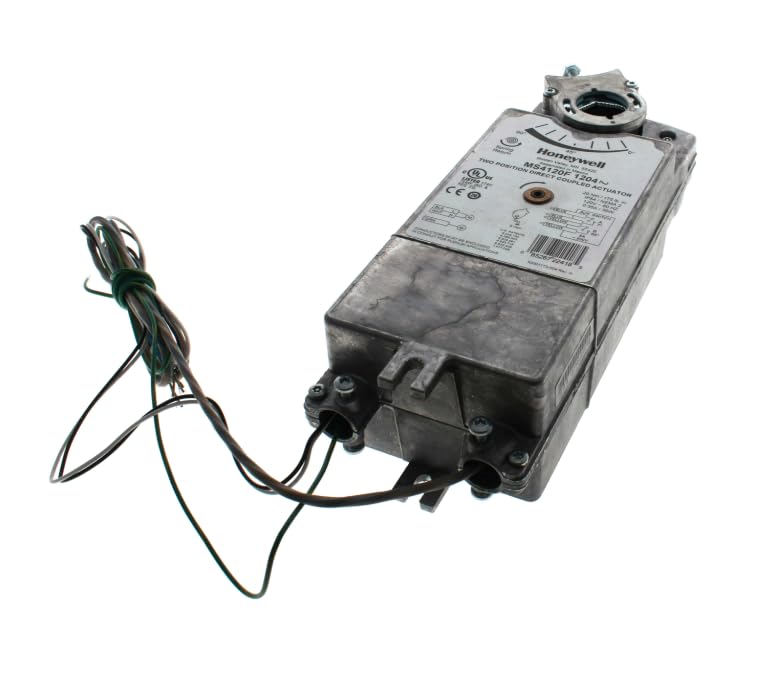

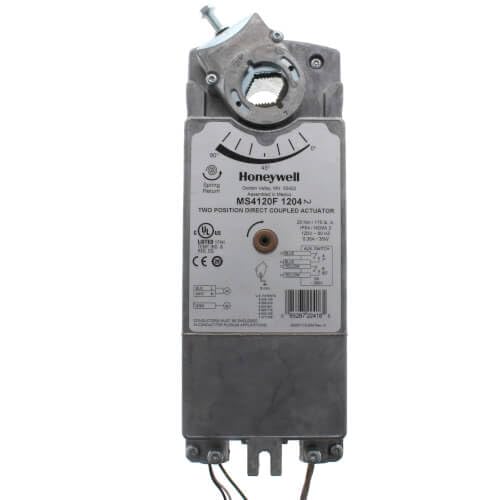

Braukmann MS4120F1204 - Direct Coupled Actuator (MS4120F1204)
In Stock - Ships in 1-2 business days
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Overview
The Honeywell Fast
Acting Two
Position Actuators are line volt (120V) 80 lbin. spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a singlepole singlethrow (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Features
- 80 lbin. (5.9 N•m) minimum driving torque at 350 F (176 C)
- Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
- Integral spring return ensures level of return torque
- Fifteensecond spring return timing
- No special cycling required during longterm holding
- No audible noise during holding
- Patent pending design eliminates need for limit switches to reduce power consumption
- Models available for 24 120 and 230 Vac
- Ninetyfive degree angle of rotation
- Actuator holds rated torque at reduced power level
- Diecast aluminum housing
- Housing design allows flush mounting to damper
- Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350 F
- Models available with SPST positionindicating switches (7 degree 85 degree stroke)
