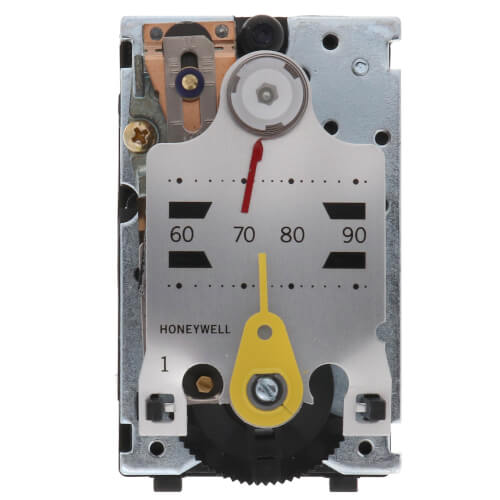

Honeywell TP973A2209 Pneumatic Thermostat Direct Acting for 1 or 2 Pipe Systems

Product Description

Explore superior temperature control with the Honeywell TP973A2209, a pneumatic thermostat that is ideal for one or two-pipe systems. This thermostat simplifies managing heating and air conditioning systems by providing proportional control of pneumatic valves and damper actuators.

• Designed for direct-action and single-temperature control.
• Features a durable, satin chrome cover and offers options for vertical or blank window configurations.
• Appropriate for low capacity heating and air conditioning systems.

Product Highlights

The TP973A2209 comes with a locking cover enhancing security and durability. Its pilot-operated design ensures high capacity and efficient performance. Suitable for both commercial and industrial environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: TP973A2209

Technical Specifications

• Temperature Range: 59 F to 90 F
• Throttling Range: 2 F to 10 F
• Maximum Safe Operating Pressure: 25 psi
• Operating Temperature Range (F): Up to 100 F
• Dimensions: 3-1/4 inches high x 2 inches wide x 1-5/8 inches deep
• Mounting: Wall
