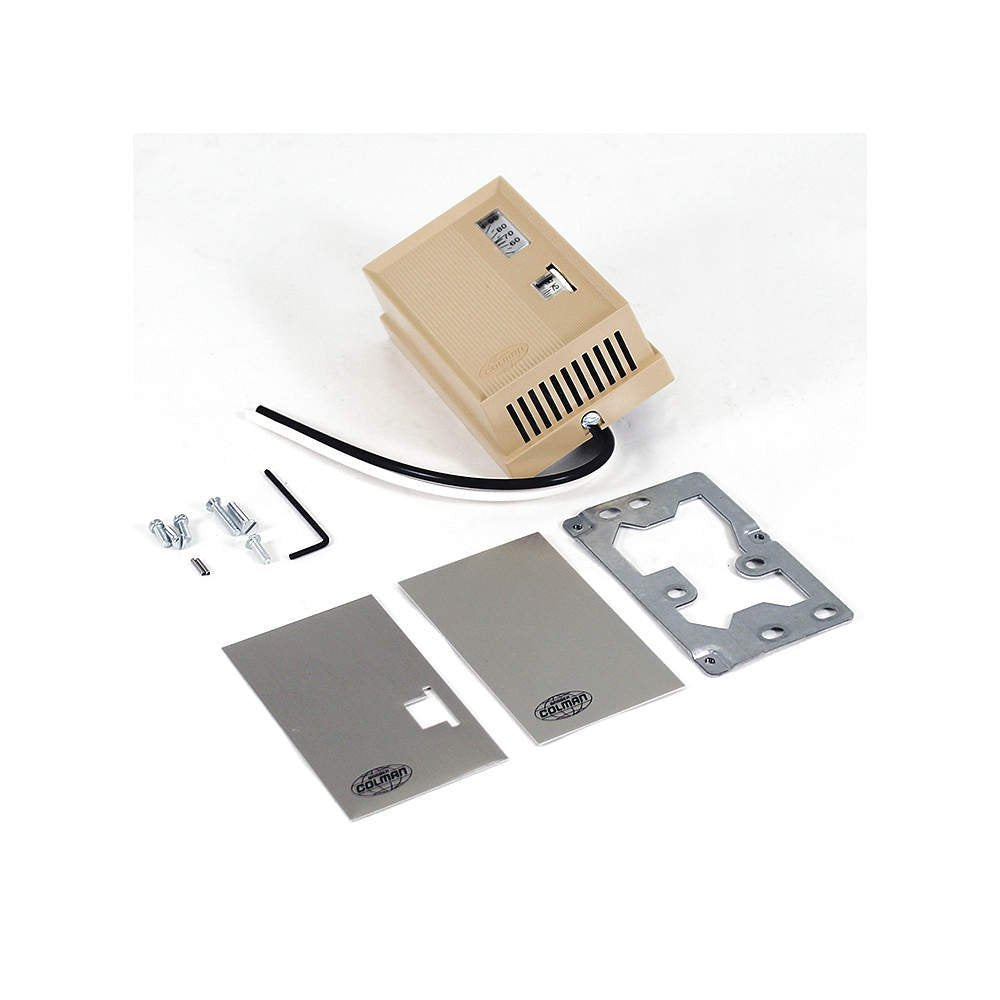

Schneider Electric TK-1001 Pneumatic Room Thermostat, 55/85 DF, 2-Pipe, Direct Acting

Product Description

The Schneider Electric TK-1001 is a pneumatic room thermostat designed for accurate temperature management in heating applications. It features a two-pipe, direct acting system with a dial range of 55 to 85 degrees Fahrenheit and is supplied with 15 or 20 psi air pressure.

• Schneider Electric TK-1001 Pneumatic Thermostat
• Dial range: 55-85 degrees Fahrenheit
• Direct acting, 2-pipe system

Product Highlights

This thermostat is ideal for maintaining precise temperature control in commercial buildings like offices and warehouses. Its durable construction ensures long-lasting performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: TK-1001

Technical Specifications

• Dial Range: 55 - 85 degrees Fahrenheit
• Operating Pressure: 15 or 20 psi
• Installation Type: Wall-mounted or duct-mounted
• Output: 3-15 psi
• Differential Temperature: ±2.5 degrees Fahrenheit
• Dimensions: 5.3 x 3.7 x 2.9 inches
• Weight: 12.48 ounces
• Use Case: Commercial buildings, offices, warehouses
