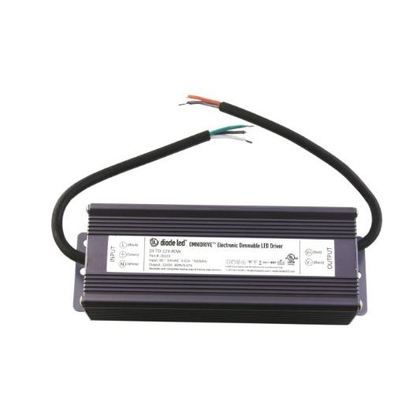

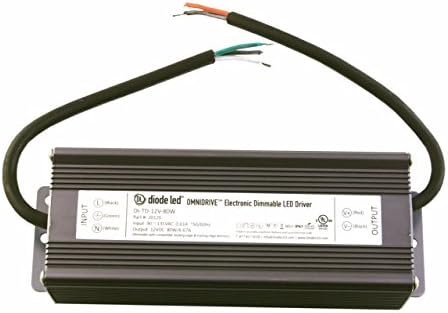

Diode Led DI-TD-12V-80W Omnidrive Electronic Dimmable Driver 80W (7.9 x 2.7 x 1.8 in)

Product Description

The Diode LED DI-TD-12V-80W is an Omnidrive electronic dimmable LED driver that provides 12 V DC output and up to 80 W of power. It supports smooth, flicker-free dimming down to 10% with broad dimmer compatibility and delivers 6.67 A at full load. The unit cools by free-air convection, operates across a wide ambient temperature range, and includes hiccup-mode, short-circuit and over-current protection.

• 12 V DC output, 80 W maximum power, 6.67 A full-load output
• Omnidrive electronic dimmable with built-in filter for smooth, flicker-free dimming (100% to 10%); compatible with TRIAC, MLV, ELV and incandescent/halogen dimmers
• Free-air convection cooling; hiccup-mode automatic recovery, short-circuit and over-current protection; -40 to 176 �F ambient rating

Product Highlights

Omnidrive 12 VDC, 80 W dimmable LED driver; 6.67 A full-load; versatile dimmer compatibility; IP67 outdoor-rated variant listed

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TD-12V-80W

Technical Specifications

• MPN: DI-TD-12V-80W
• Brand: Diode LED
• Type: Omnidrive electronic dimmable LED driver
• Output Voltage: 12 VDC
• Output Current: 6.67 A (full load)
• Input Current: 0.61 A at 110 VAC
• Power Rating: 80 W
• Power Factor: >0.95
• Dimming Range: 100% to 10%
• Dimmer Compatibility: TRIAC, MLV (magnetic low voltage), ELV (electronic low voltage), incandescent/halogen; supports 3/4/5-way and on/off switching
• Frequency: 50/60 Hz
• Cooling Method: Free-air convection
• Protection: Hiccup mode with automatic recovery; short-circuit and over-current protection
• Ambient Temperature Range: -40 to 176 deg F
• Dimensions: 7.9 x 2.7 x 1.8 in (L x W x H)
• Ingress Protection: IP67 (outdoor)
• Cable/Leads: 18 AWG 3C leads with framed ground connection; H05RN-F cable (300/500 VAC rating)
• Safety Class: Class 2
• UPC: 848333002724
