Diode Led DI-TD-12V-120W Omnidrive Electronic Dimmable Driver 120W (12V)

Product Description

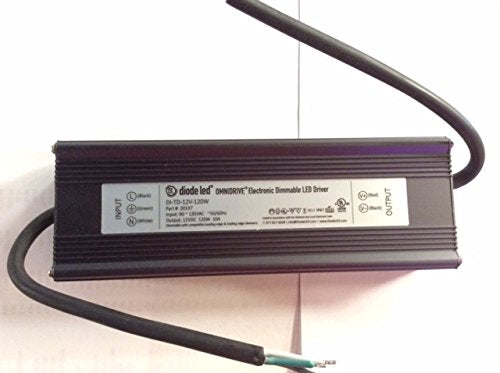

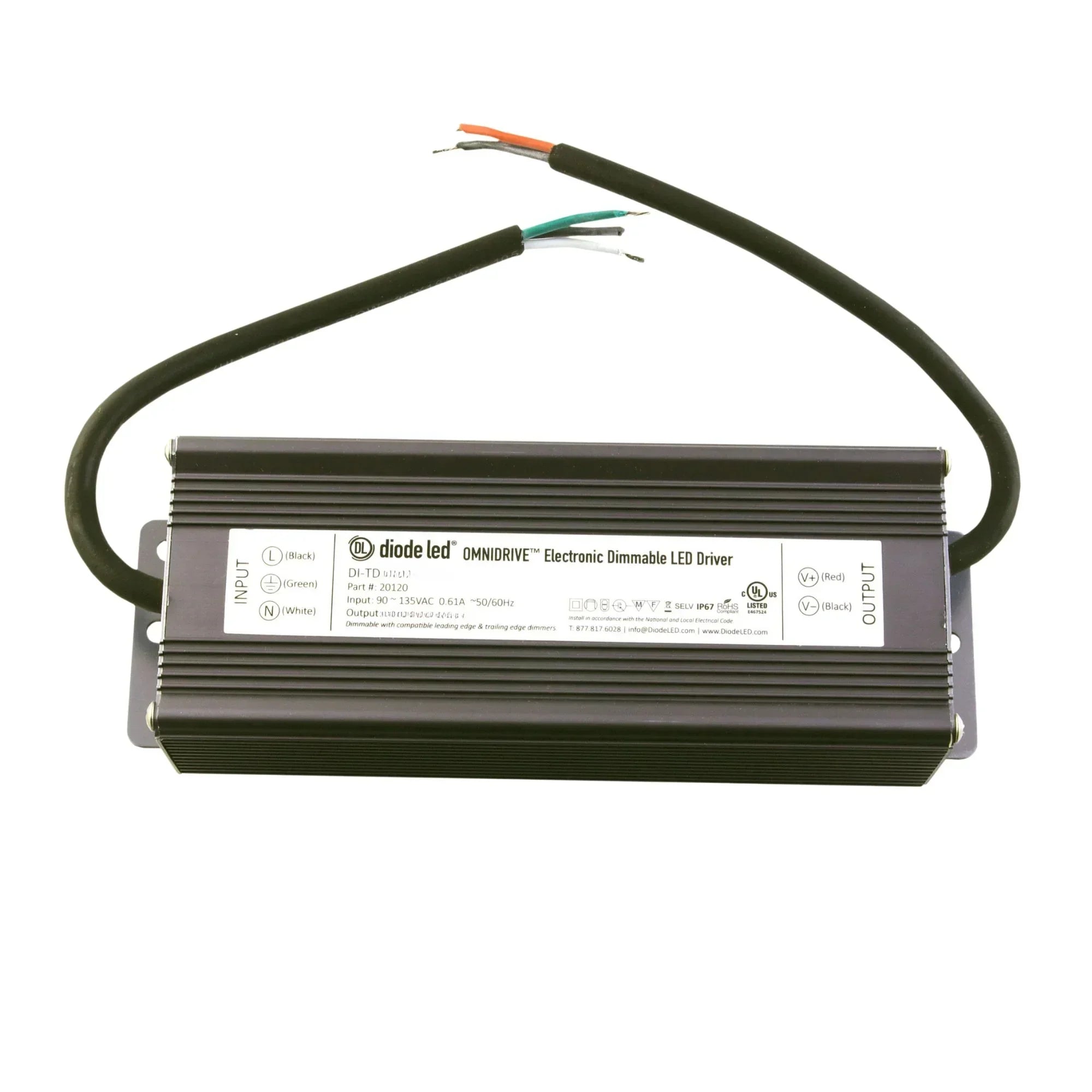

Diode LED DI-TD-12V-120W is an Omnidrive electronic dimmable LED driver that delivers a 12V DC constant-voltage output with a maximum 120W load. The driver is designed for dimmable 12V LED lighting systems and supports electronic dimming protocols for compatibility with a wide range of dimmer types. It includes protection features and an IP67-rated enclosure for wet-location installations where specified.

• Omnidrive electronic dimmable driver providing 12V DC output and up to 120W maximum power
• Supports electronic/multi-protocol dimming with minimum load requirements (minimum 60% load where specified)
• IP67-rated enclosure option, short-circuit and over-current protection, cooled by free-air convection

Product Highlights

12V DC constant-voltage Omnidrive driver, 120W output, electronic dimming compatibility, IP67 protection where applicable

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TD-12V-120W
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-TD-12V-120W
• Model: DI-TD-12V-120W
• Series: OMNIDRIVE
• Product Type: Omnidrive electronic dimmable LED driver
• Output Voltage: 12V DC
• Maximum Power: 120 W
• Output Current: 10 A
• Dimming: Electronic / Multi-Protocol dimming (forward-phase and reverse-phase compatibility)
• Minimum Load: 60% of labeled load (where required for dimming)
• Enclosure Rating: IP67 (wet-location models where specified)
• Certifications: cULus Listed
• Protection: Short circuit and over current protection
• Cooling: Free-air convection

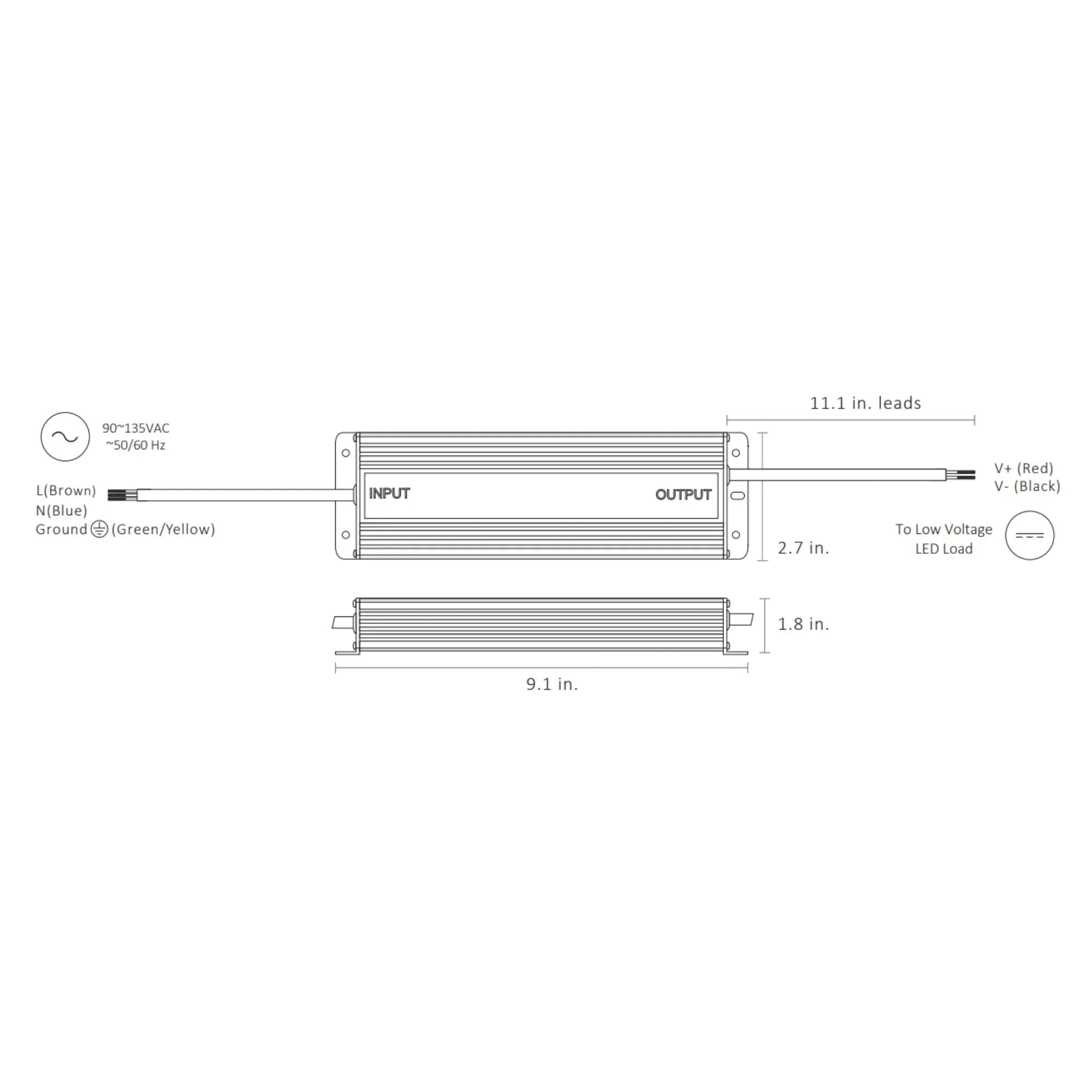

• Dimensions (L x W x H): 9.1 in x 2.7 in x 1.8 in
• Recommended Applications: Dimmable LED tape light, linear lighting, under-cabinet lighting, cove lighting, display lighting, architectural accent lighting
• UPC: 848333005398
