Diode Led DI-TB8-CONN-TTT-5 8mm tape light terminal block connector (pack of 5)

Product Description

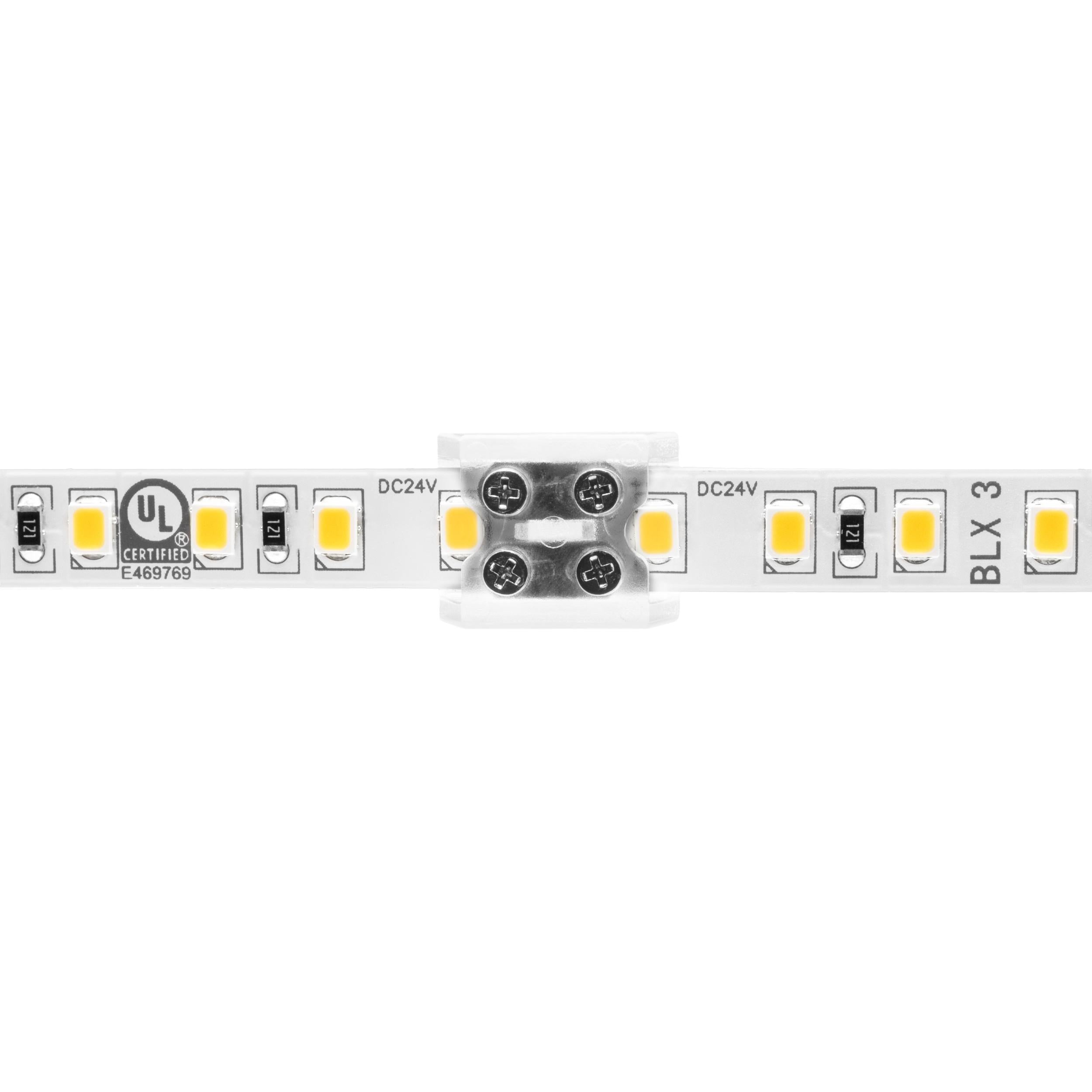

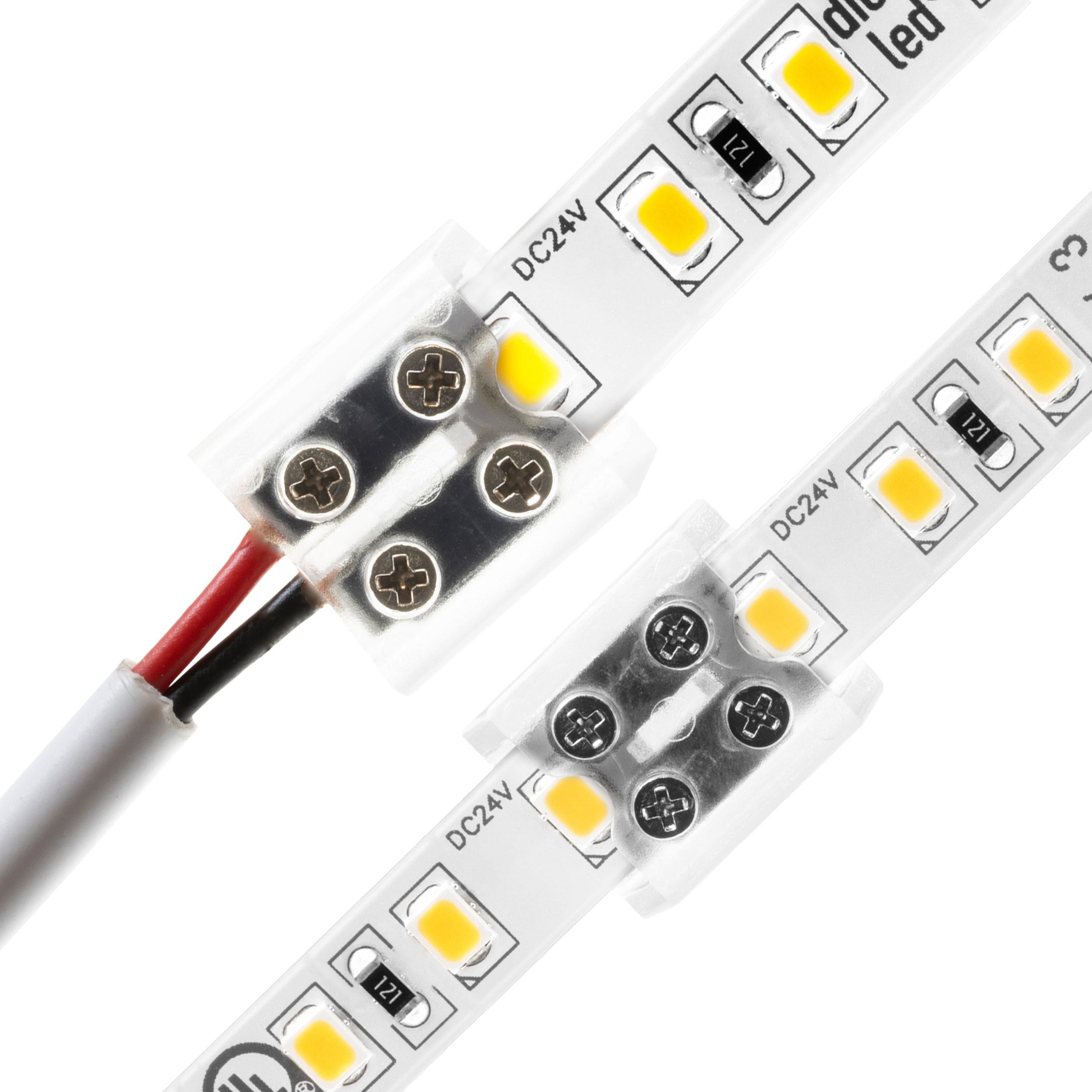

Diode Led DI-TB8-CONN-TTT-5 is a tape light terminal block connector for 8 mm LED tape, sold as a pack of 5. The connector uses screw-down terminals for secure electrical contact and a tape-to-tape configuration to join LED tape segments, with a compact form factor that fits inside channels. It supports 12�24 VDC systems and accepts 16�20 AWG wire for low-voltage LED installations.

• Screw-down tape-to-tape connector designed for 8 mm LED tape
• Compatible with 12�24 VDC systems; current rating: 12V � 5A, 24V � 4A
• Compact form factor fits inside channels; accepts 16�20 AWG wire; pack of 5

Product Highlights

Screw-down tape-to-tape connector for 8mm LED tape; pack of 5; 12�24 VDC, accepts 16�20 AWG

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TB8-CONN-TTT-5
• Country of Origin: China

Technical Specifications

• Brand: Diode Led
• Manufacturer Part Number: DI-TB8-CONN-TTT-5
• Product Name: 8mm tape light terminal block connector
• Connector Type: Screw down, tape-to-tape
• Connection Type: Screw terminal
• Configuration: Tape-to-tape
• Tape Width: 8 mm
• Pack Quantity: 5
• Input Voltage: 12-24 VDC
• Current Rating: 12V - 5A, 24V - 4A
• Wire Gauge: 16 AWG - 20 AWG
• Recommended Tape Lights: Blaze, Blaze X, Blaze Colors
• UPC: 84833301466
• Country of Origin: China
• Material / Color: White
