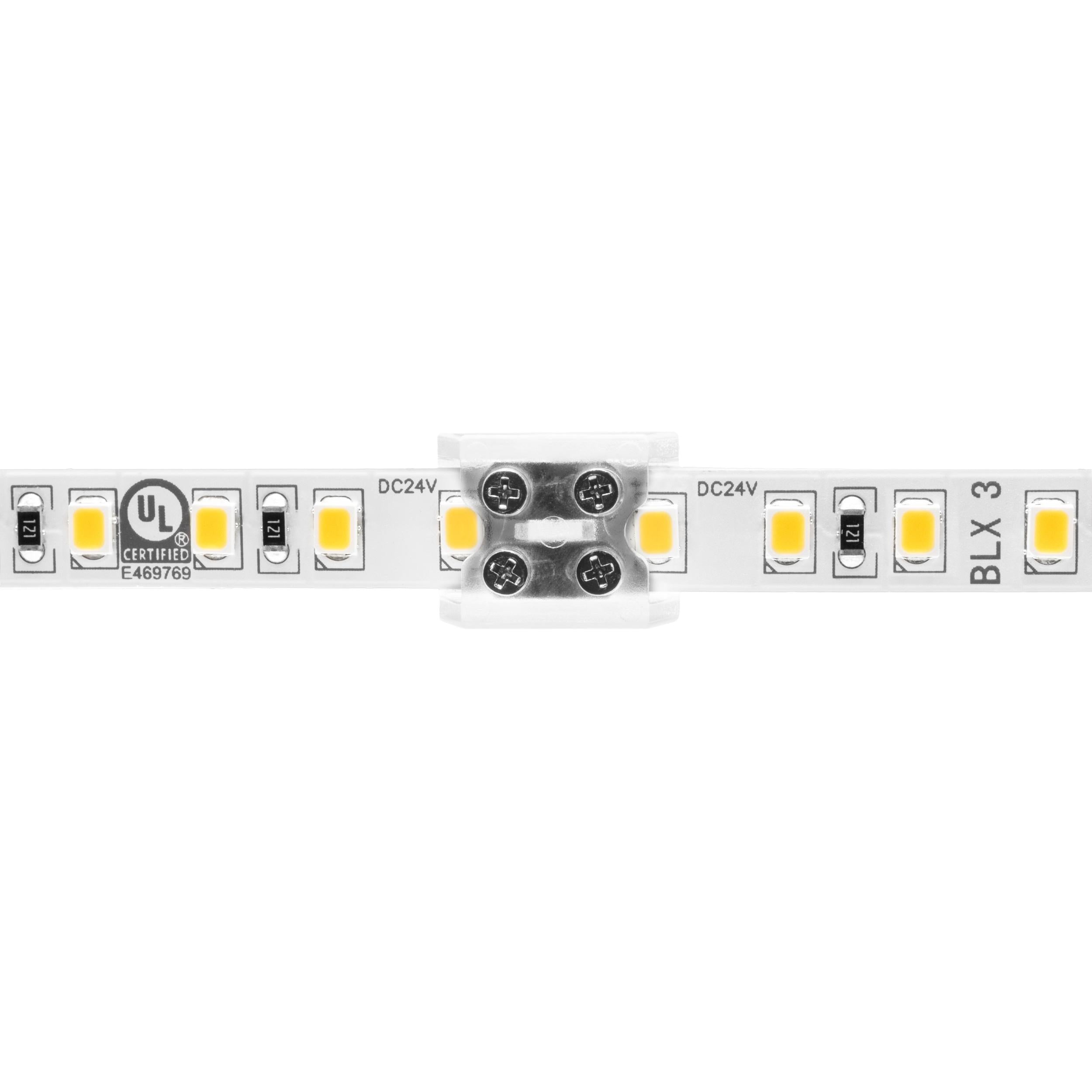

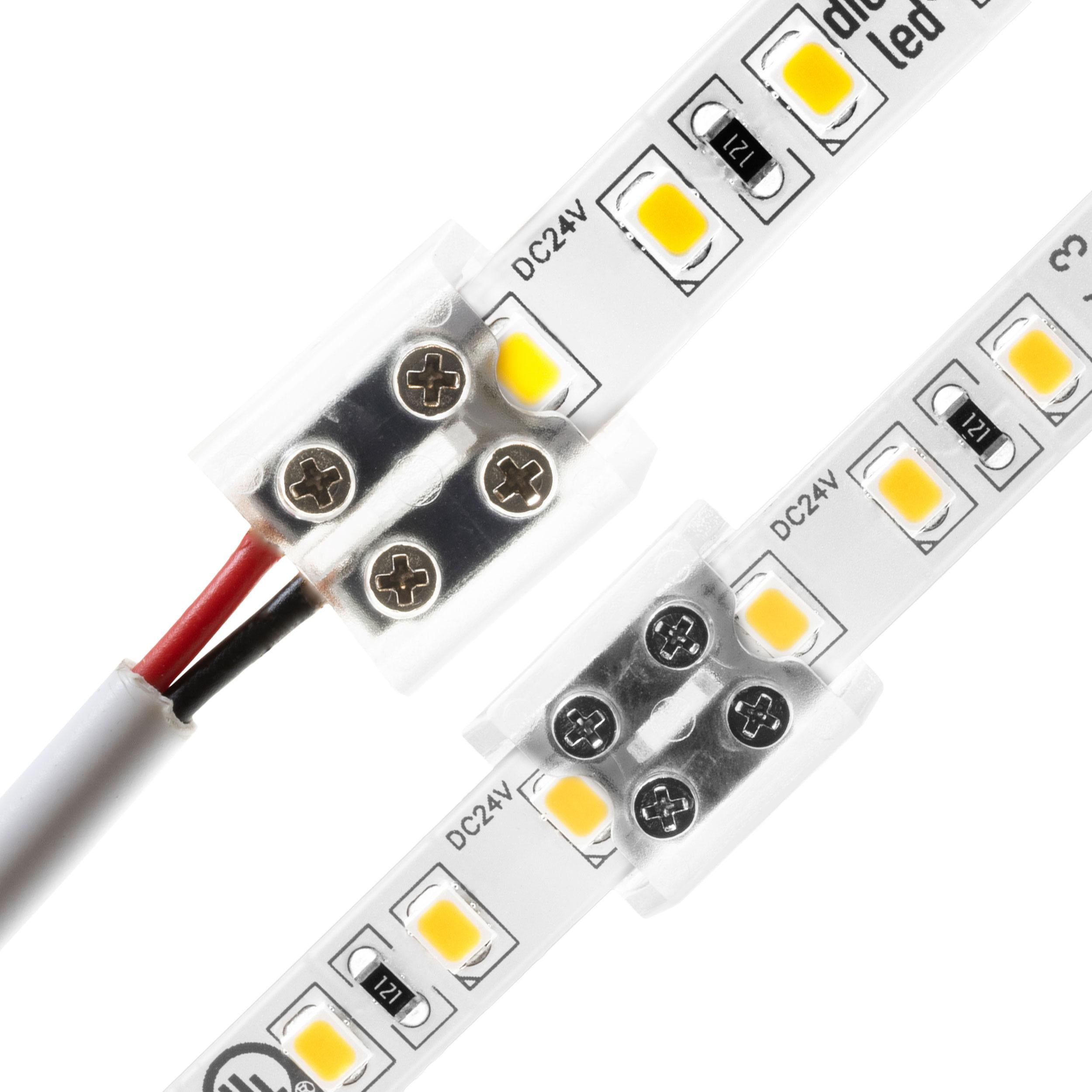

Diode Led DI-TB8-CONN-TTT-25-B 8mm Tape Light Terminal Block Connector 12-24 VDC (Pack of 25)

Product Description

The Diode LED DI-TB8-CONN-TTT-25-B is an 8mm tape light terminal block connector that provides screw-down tape-to-tape connections for indoor low-voltage LED installations. The pack of 25 connectors accepts 16 to 20 AWG wire, is rated for 12-24 VDC with maximum currents of 5A at 12V and 4A at 24V, and includes 3M adhesive for mounting; its compact form factor fits inside channels for neat installations.

• Screw-down screw terminal connection for secure tape-to-tape wiring; fits 8mm LED tape.
• Electrical rating: 12-24 VDC; max amperage 12V = 5A, 24V = 4A; accepts 16�20 AWG wire.
• Pack of 25 connectors with 3M adhesive; compact design suitable for indoor installations; minimum ambient temperature -4 �F.

Product Highlights

Screw-down 8mm tape-to-tape connector, 12-24 VDC rating, accepts 16�20 AWG, pack of 25 with adhesive

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TB8-CONN-TTT-25-B
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-TB8-CONN-TTT-25-B
• Model / MPN example: DI-TB8-CONN-TTT-25-B
• Connection Type: Screw Terminal, Tape Light (tape-to-tape)
• Intended Use: For use with 8mm tape light only
• Input Voltage: 12-24 VDC
• Max Amperage: 12V - 5A / 24V - 4A
• Wire Gauge: 16 AWG - 20 AWG
• Included Accessories: 3M adhesive tape
• Environment: Indoor
• Minimum Ambient Temperature: -4 �F
• Pack Quantity: 25
• Overall Length: 0.63 in
• Country of Origin: China
• Category: Lighting Accessories
