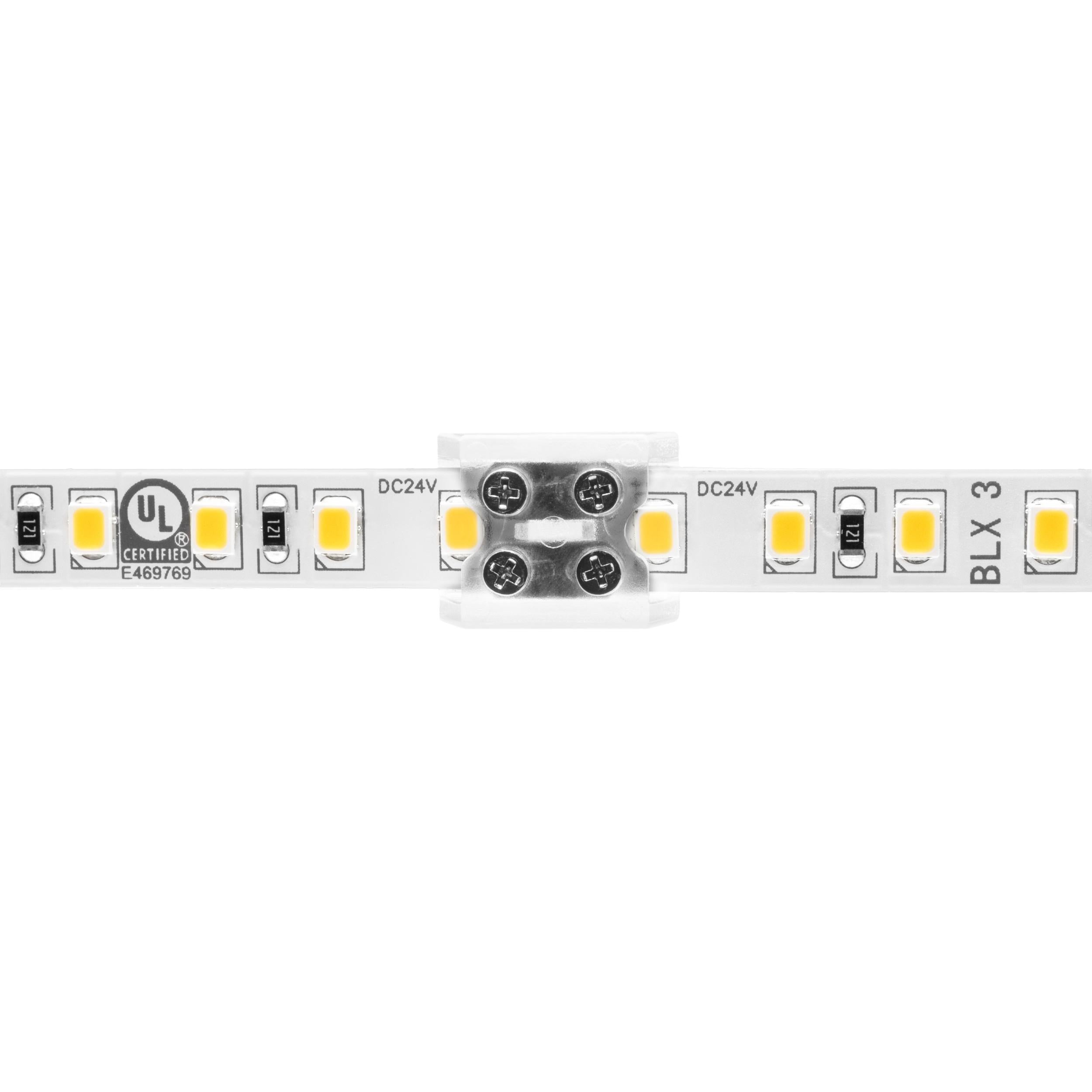

Diode Led DI-TB8-CONN-TTT-1 LED Tape Light Terminal Block Connector 12-24 VDC (8mm / Pack 1)

Product Description

Diode LED DI-TB8-CONN-TTT-1 is a screw-down tape-to-tape terminal block connector designed for 8 mm LED tape light that provides a compact mechanical and electrical junction. It supports 12 to 24 VDC operation with current ratings of 12V up to 5A and 24V up to 4A, accepts 16�20 AWG wire, and features a small form factor suited for channel installations and inline splices.

• Screw-down tape-to-tape connector for 8 mm LED tape light; supports tape-to-wire and jumper configurations
• Voltage rating 12�24 VDC with current rating 12V: 5A, 24V: 4A; accepts 16�20 AWG
• Compact dimensions and 3M adhesive backing for installation inside channels; operating temperature -4 to 122 F

Product Highlights

Screw-down 8 mm tape-to-tape connector, 12�24 VDC, 12V up to 5A / 24V up to 4A, accepts 16�20 AWG

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TB8-CONN-TTT-1

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-TB8-CONN-TTT-1
• MPN: DI-TB8-CONN-TTT-1
• Manufacturer: Diode LED
• Description: Screw-down tape-to-tape terminal block connector for 8 mm LED tape light
• Voltage Rating: 12 to 24 VDC
• Current Rating: 12V - 5A; 24V - 4A
• Tape Width: 8 mm
• Connection Type: Screw down, tape-to-tape
• Connector Configurations: Tape-to-tape, tape-to-wire splice, jumper, tape-to-wire
• Wire Gauge: 16 AWG - 20 AWG
• Operating Temperature: -4 to 122 F
• Dimensions: 0.45 x 0.4 x 0.3 in
• Weight: 0.01 lb
• Package Quantity: 1
• Adhesive: 3M adhesive backing (indoor rated)
• UPC: 848333030215
• Compatible Types: 8mm tape-to-tape, 8mm tape-to-tape jumper, 8mm tape-to-wire connector, 8mm tape-to-wire splice
