Diode Led DI-TB8-6JPR-TTT-1 Tape Light Tape-to-Tape Jumper 12 to 24 V (8mm)

Product Description

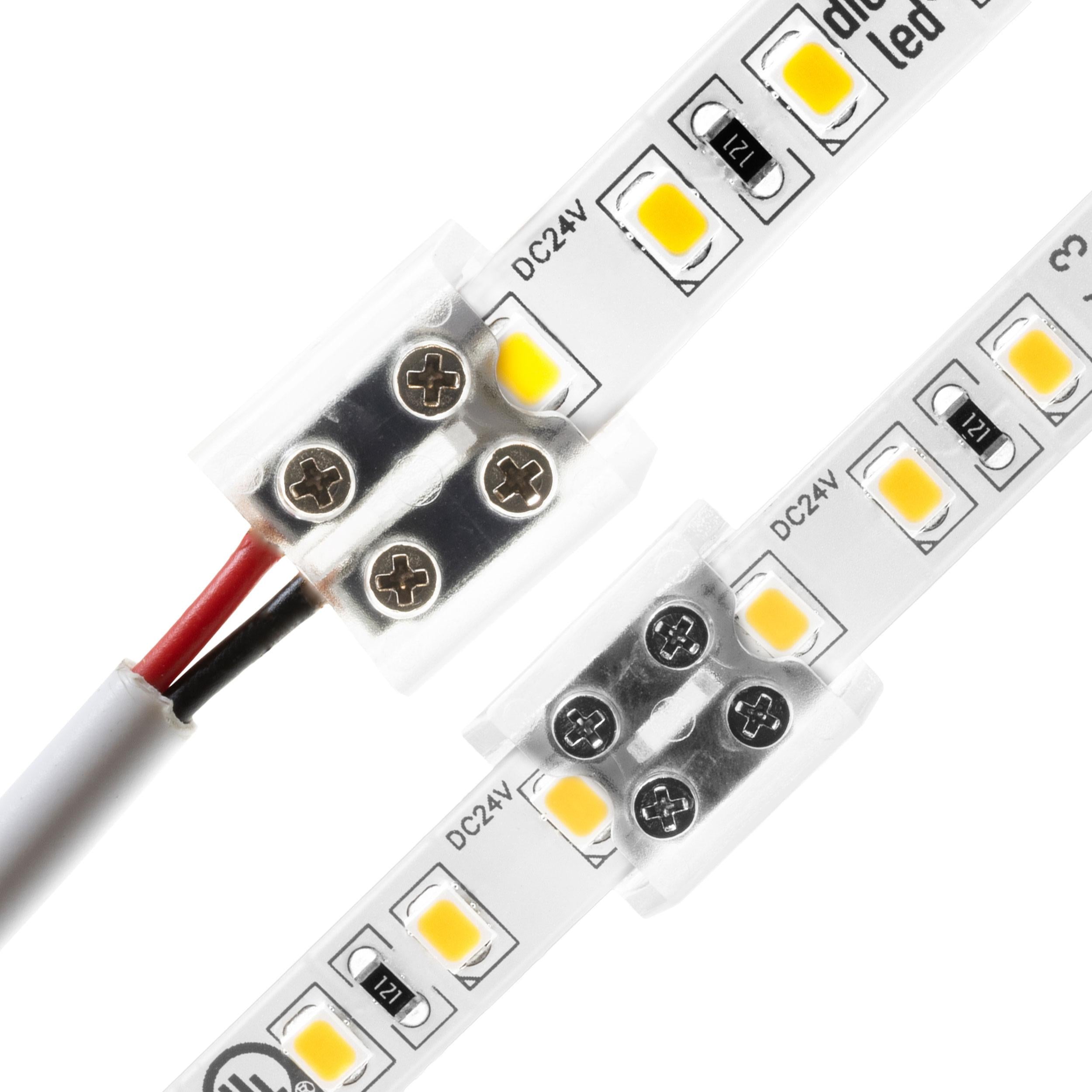

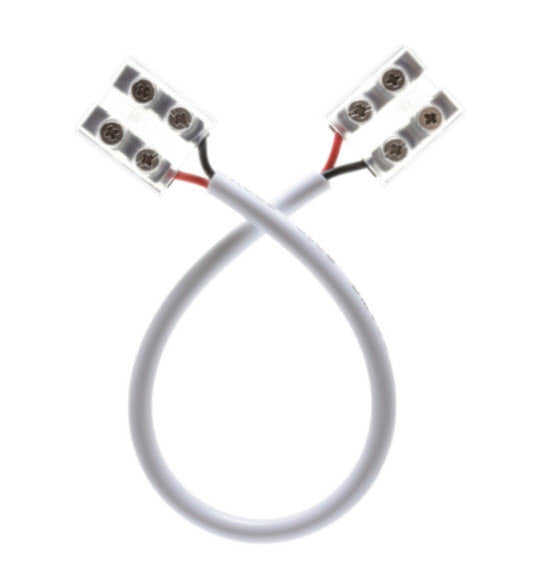

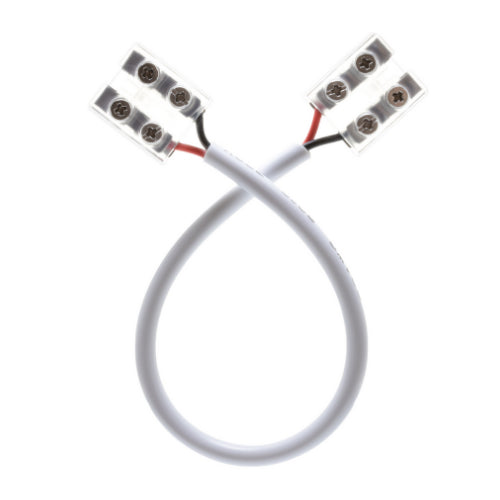

Diode LED DI-TB8-6JPR-TTT-1 is a tape-to-tape jumper terminal block connector for 8mm LED tape light rated for 12 to 24 V. It provides a secure screw-down connection for tape-to-tape and tape-to-wire splices, supports 16 to 20 AWG conductors, and is rated up to 5A at 12V and 4A at 24V. The compact clear housing and 6 in. jumper lead enable low-voltage indoor installations and field assembly without soldering.

• Screw-down terminal block for tape-to-tape and tape-to-wire connections; no soldering required
• Electrical rating: 12 to 24 V; maximum amperage 12V: 5A, 24V: 4A; supports 16�20 AWG wire
• Compact clear housing with 6 in. jumper lead and included 3M adhesive for mounting

Product Highlights

6 in. tape-to-tape jumper for 8mm LED tape; screw-down connection; rated 12�24 V and 5A/4A; supports 16�20 AWG

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-TB8-6JPR-TTT-1

Technical Specifications

• Brand: Diode LED
• MPN: DI-TB8-6JPR-TTT-1
• Model / Part #: N6397
• Connection Type: Screw Terminal, Tape Light
• Product Type: 8mm Tape Light Terminal Block Connector
• Connector Configuration: Tape-to-Tape Jumper Cable
• Tape Light Width: 8mm
• Input Voltage: 12 to 24 V DC
• Max Amperage: 12V: 5A; 24V: 4A
• Wire Gauge: 16 to 20 AWG
• Lead / Jumper Length: 6 in.
• Dimensions: 0.63 in L x 0.5 in W x 0.23 in H
• Included Accessories: 3M adhesive tape
• Environment: Indoor
• Operating Temperature: -4�F to 122�F (-20�C to 50�C)
• Package Quantity: Single / 1-Pack
• UPC: 848333031137
