Diode Led DI-TB8-60JPR-TTT-1 8mm Tape Light Terminal Block Connector 12-24VDC (60 in)

Brand: DIODE LED
SKU: DI-TB8-60JPR-TTT-1
Availability: In Stock

Ships same day if ordered by 12 pm
$18.03
$18.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

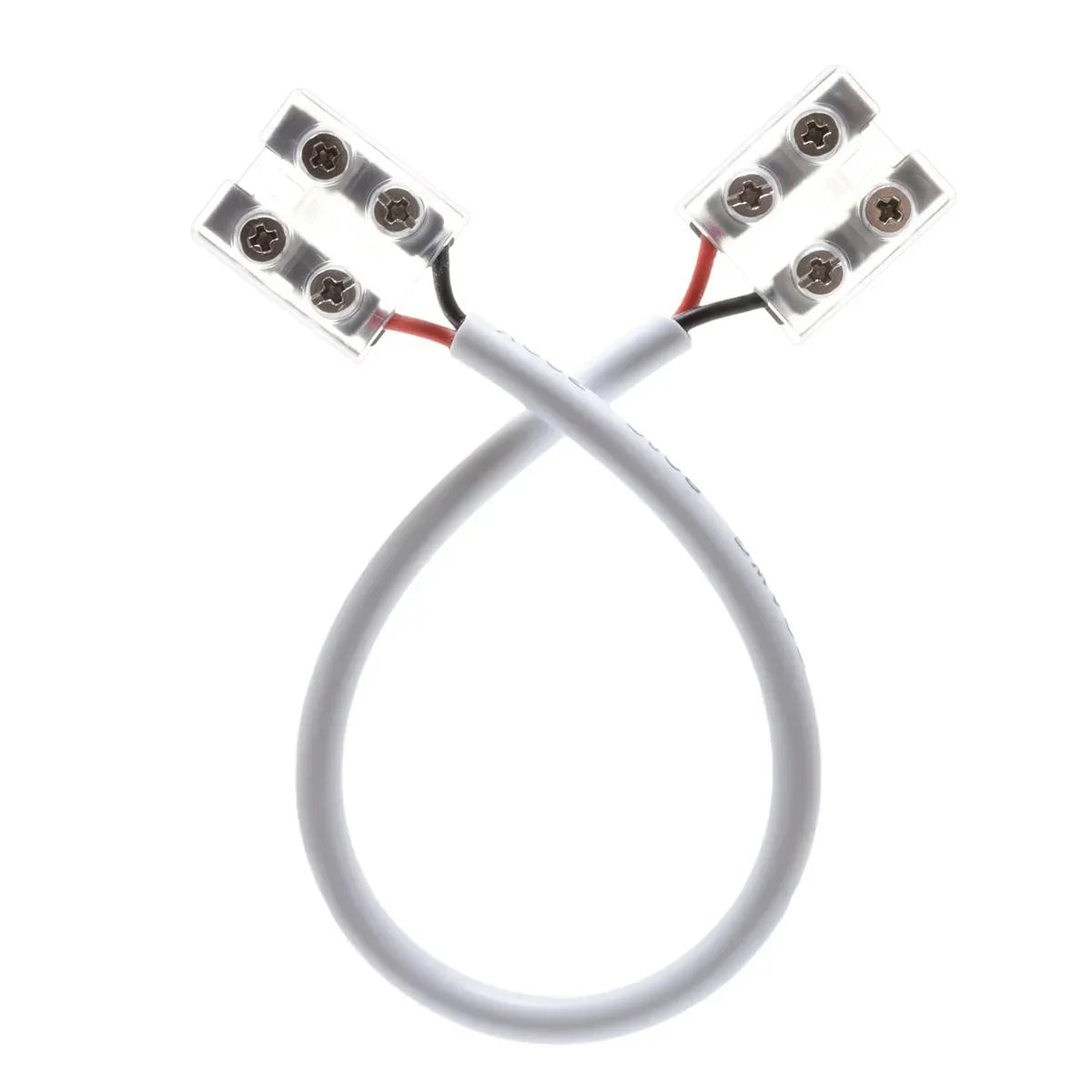

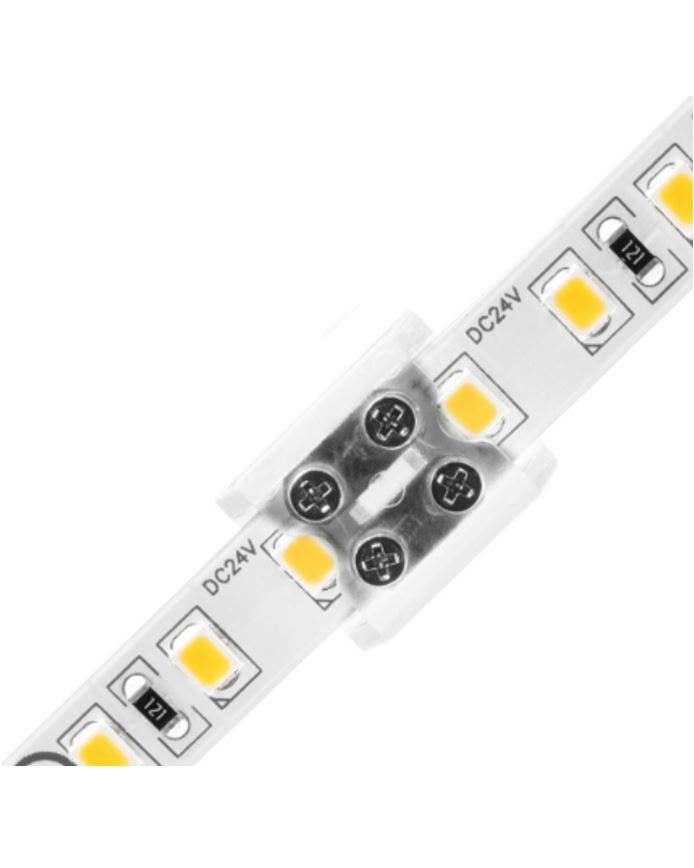

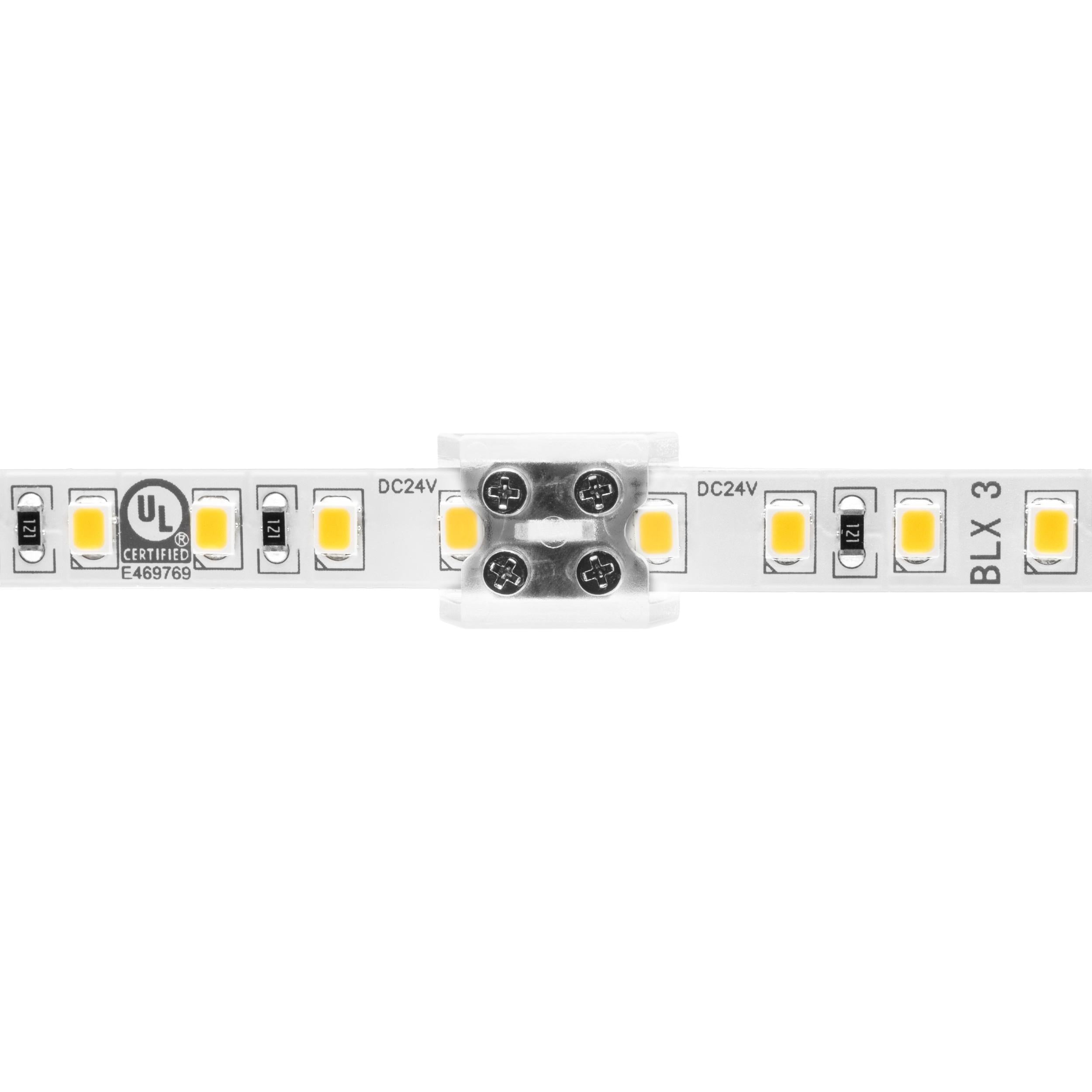

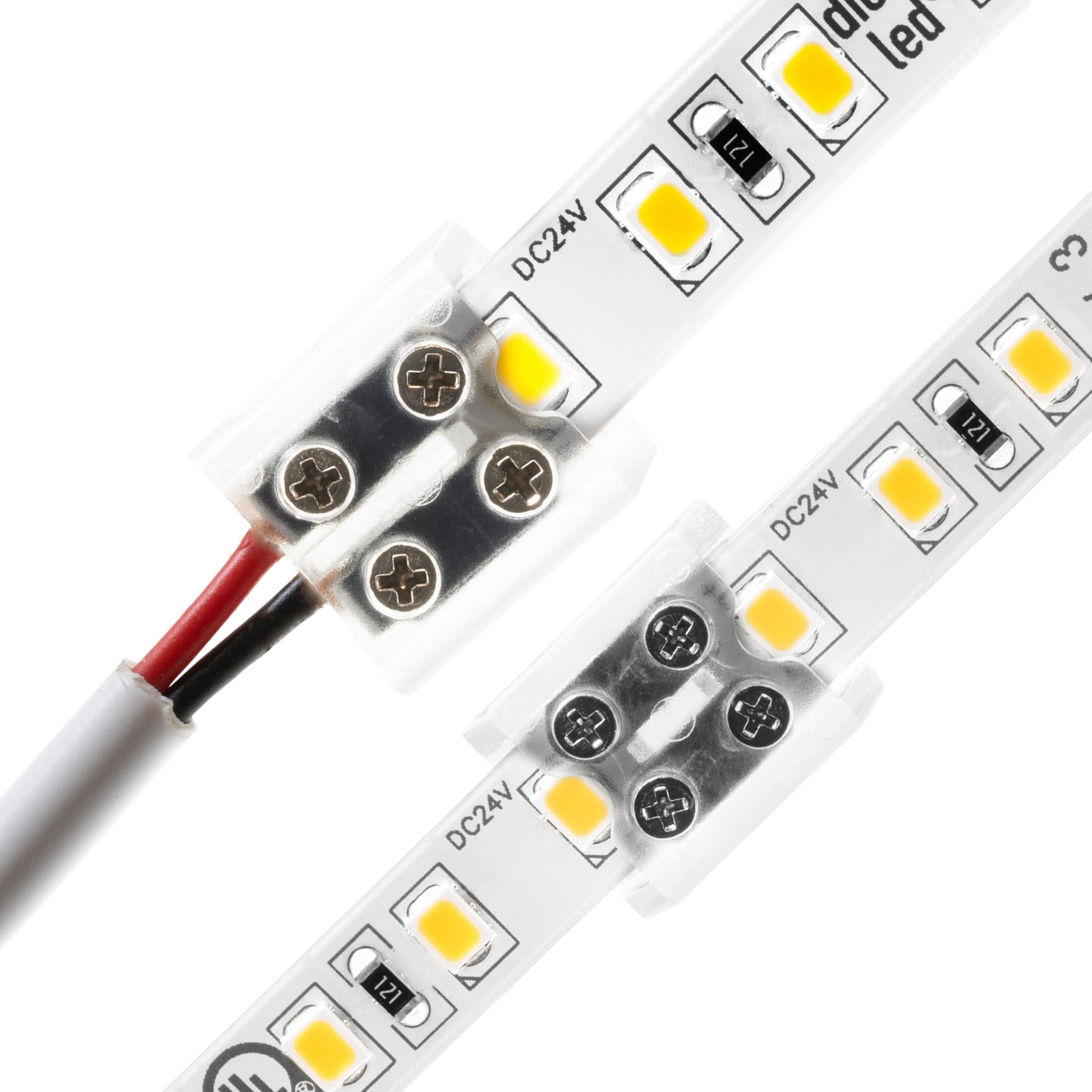

Diode LED DI-TB8-60JPR-TTT-1 is a tape-to-tape terminal block connector with a 60-inch jumper intended for use with 8mm LED tape light. It uses screw-down connections and 20 AWG conductors for secure joins, is rated for 12-24 VDC (12V: 5A; 24V: 4A), and is intended for indoor/dry locations. The small form factor fits inside mounting channels.

  • Screw-down terminal block for secure tape-to-tape connections
  • 60 in jumper with 20 AWG conductors, rated 12-24 VDC (12V: 5A, 24V: 4A)
  • Small form factor fits inside mounting channels; indoor/dry rated

Product Highlights

60-inch tape-to-tape jumper for 8mm LED tape with screw-down terminals, 20 AWG wire, 12-24 VDC rating.

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-TB8-60JPR-TTT-1
Technical Specifications
Brand
Diode LED
Manufacturer Part Number
DI-TB8-60JPR-TTT-1
Product Type
8mm tape-to-tape terminal block jumper
Compatibility
For use with 8mm tape light only
Connection Type
Screw terminal
Length
60 in
Wire Gauge
20 AWG
Input Voltage
12-24 VDC
Max Amperage
12V - 5A / 24V - 4A
Rated Use
Indoor (dry rated)
Dimensions
Width 0.4 in; Height 0.2 in
Weight
0.2 lb
Family
BLAZE
UPC
848333031106
