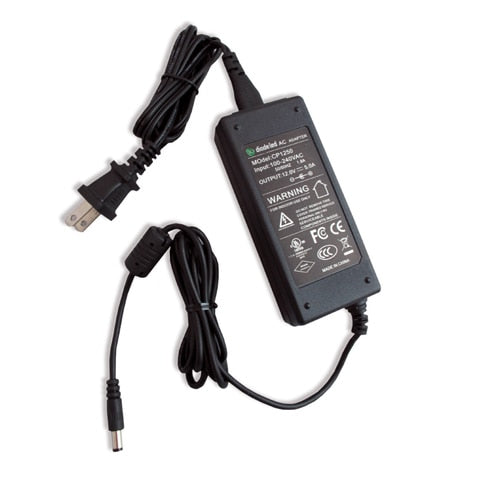

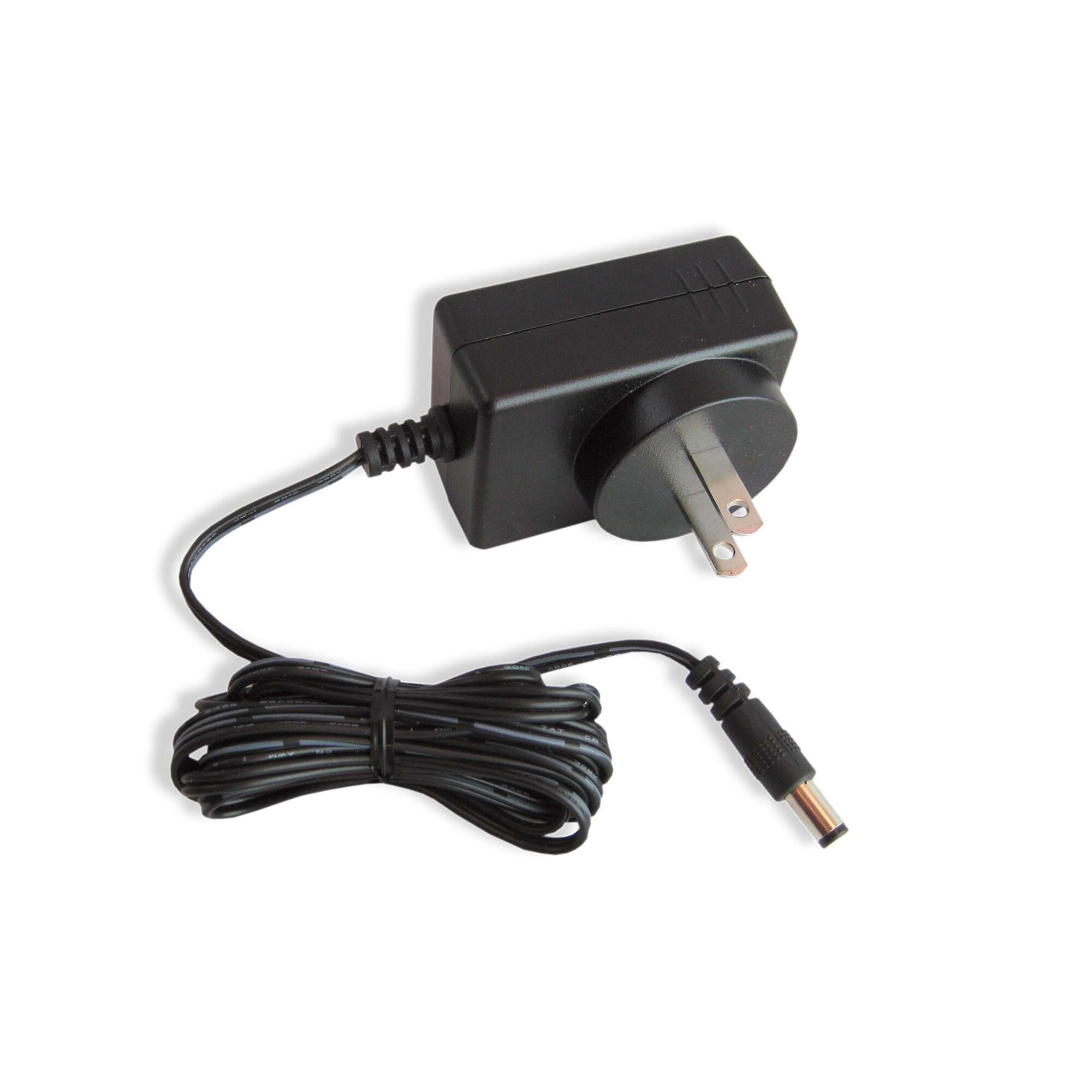

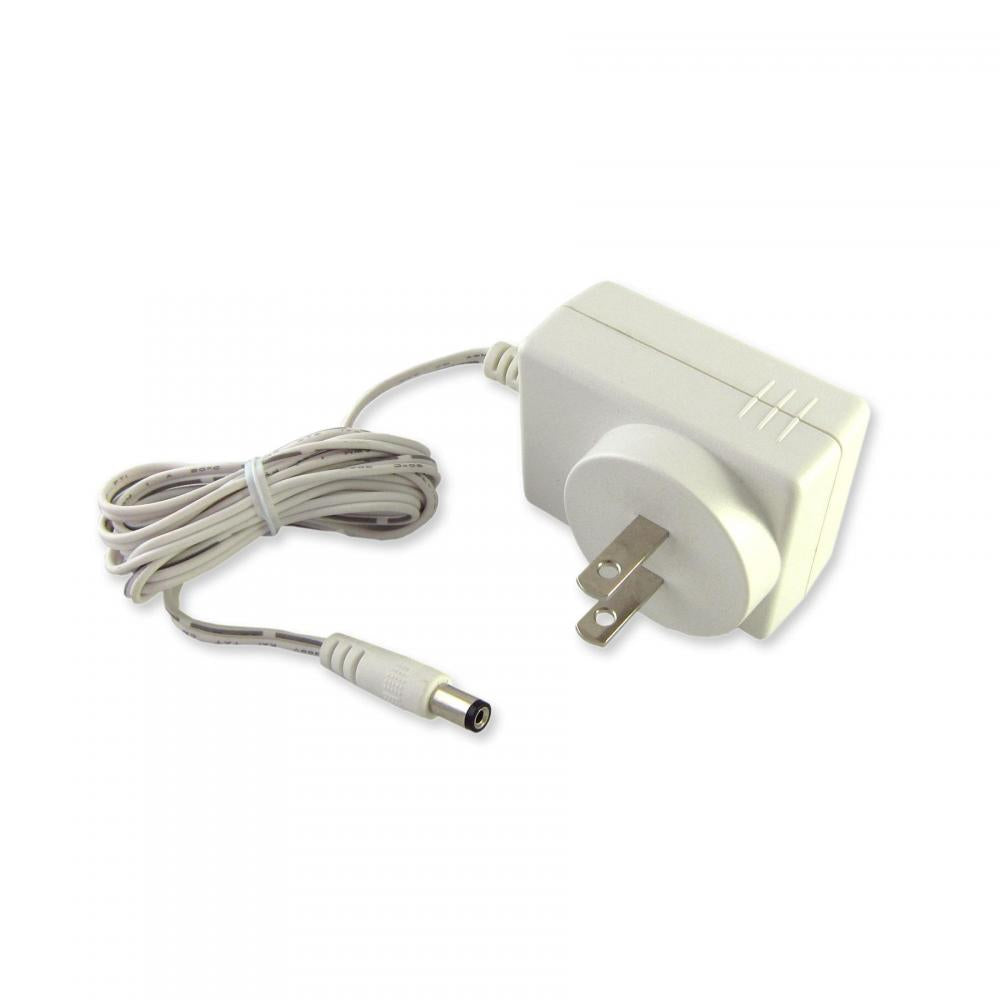

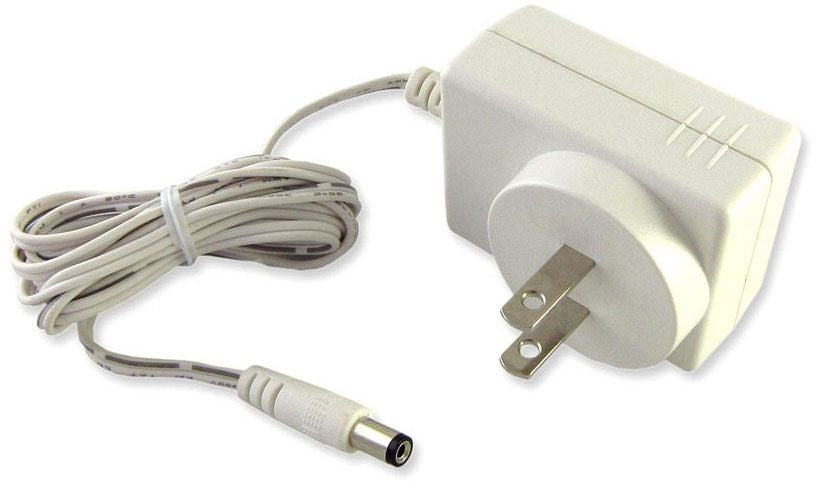

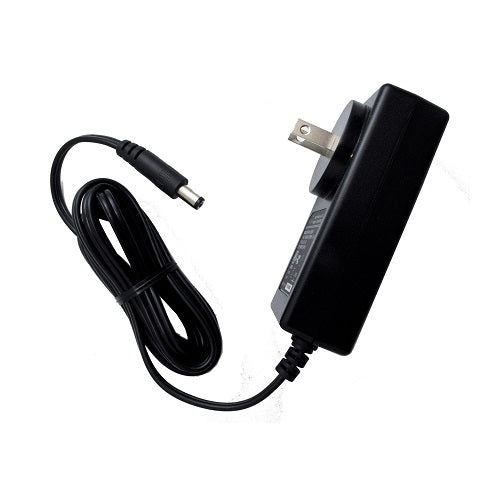

Diode Led DI-PA-24V48W-CL2-B Plug-In Adapter Class 2 48W (24V)

Product Description

Diode LED DI-PA-24V48W-CL2-B is a plug-in Class 2 adapter that delivers 24V DC output with up to 48W maximum power for low-voltage LED lighting applications. The unit connects to a standard 120V AC outlet and provides a compact, portable power source with integrated protection features. It is intended for indoor, dry-location use and supplies up to 2.0 A at the 24V output.

• 24V DC constant-voltage output, 48W maximum (up to 2.0 A)
• Plug-in design for standard 120V AC outlet; Class 2 certified
• Integrated protections: short circuit, over-current, over-voltage, over-temperature with auto-reset hiccup

Product Highlights

24V DC, 48W Class 2 plug-in adapter for indoor LED lighting; 2.0 A max, standard 120V AC input, integrated safety protections

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-PA-24V48W-CL2-B
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-PA-24V48W-CL2-B
• Product Type: Class 2 plug-in adapter
• Output Voltage: 24V DC
• Power (Maximum): 48W
• Output Current (Maximum): 2.0 A
• Input Voltage: 120VAC (standard 120V outlet)
• Primary Connection: 2-prong NEMA 1-15P male AC plug
• Secondary Connection: 5.5 mm x 2.1 mm coaxial DC plug (male)
• Certifications: cULus Listed, Class 2; Level VI efficiency
• Circuit Protection: Auto-reset hiccup; short circuit, over-current, over-voltage, over-temperature protection
• Environment: Indoor / dry locations
• Dimensions: 4.70 in L x 2.00 in W x 1.25 in H
• Weight: 0.625 lb
• UPC: 848333008535
• Country of Origin: China
