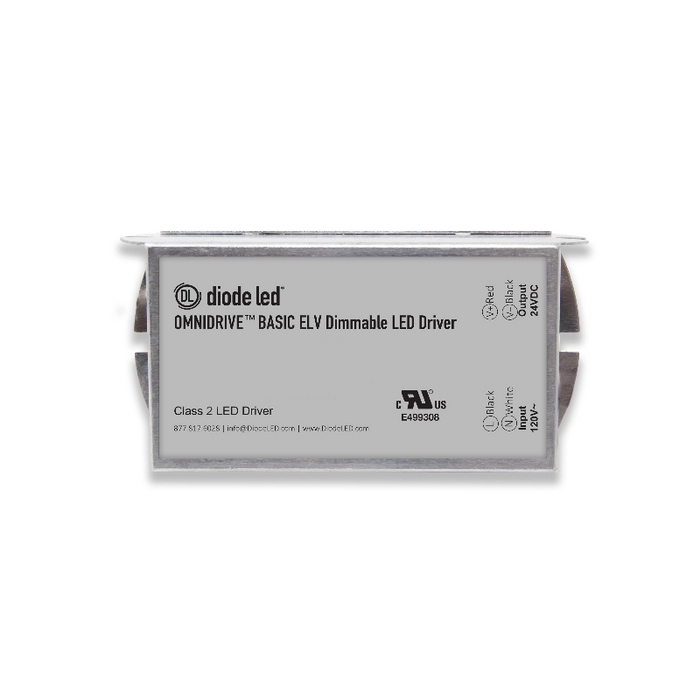

DIODE LED DI-ODBELV-12V60W-LPELV Omnidrive Basics ELV Electronic Dimmable Driver

Product Description

The DIODE LED DI-ODBELV-12V60W-LPELV is an electronic dimmable driver designed for low-voltage lighting applications. This unit operates on 12 volts DC and provides a power output of 60 watts. It is specifically developed for easy installation, supporting a wide array of dimmers for enhanced functionality.

• Flicker-free dimming, compatible with popular dimmers.
• Auto-reset protection for short circuits, overloads, and thermal conditions.

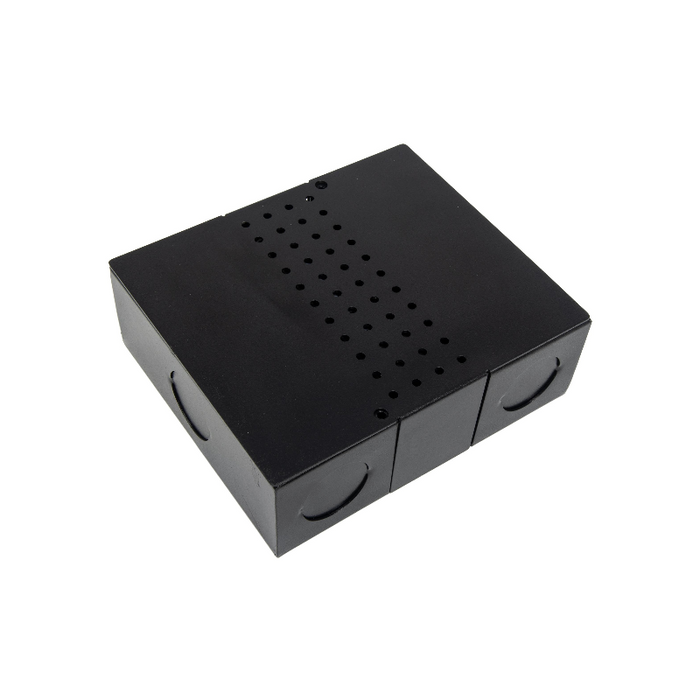

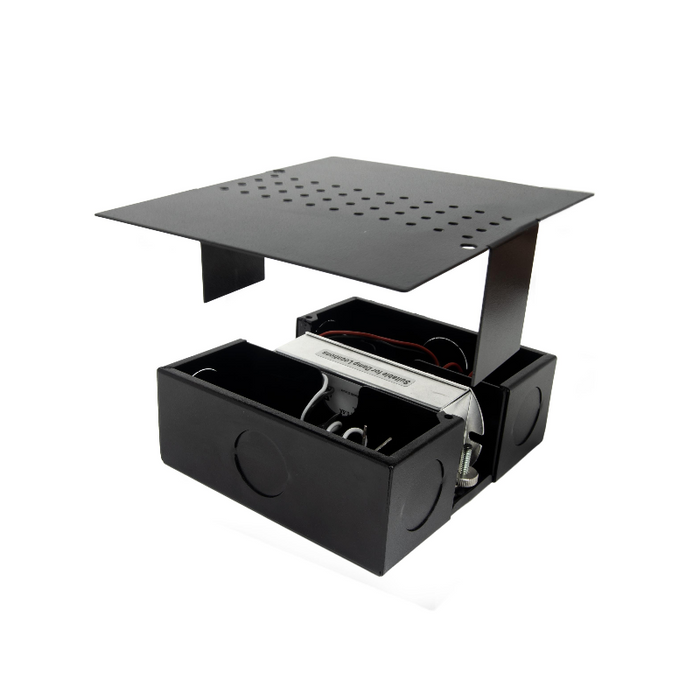

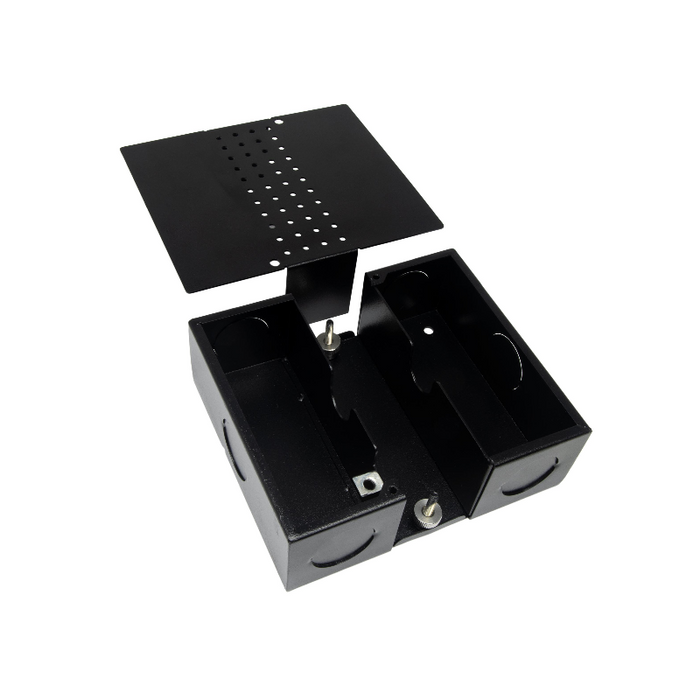

• UL Listed junction box included for added safety and convenience.

Product Highlights

This driver features smooth dimming capabilities down to five percent, ensuring optimal control over lighting conditions. It is suitable for static color, low-voltage, linear lighting solutions, making it a versatile choice for various projects.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-ODBELV-12V60W-LPELV

Technical Specifications

• Input Voltage: 120 VAC
• Output Voltage: 12 VDC
• Power Rating: 60 W
• Output Current: 5 A
• Dimmable: Yes
• Connection Type: Hard-Wired
• Junction Box Included: Yes

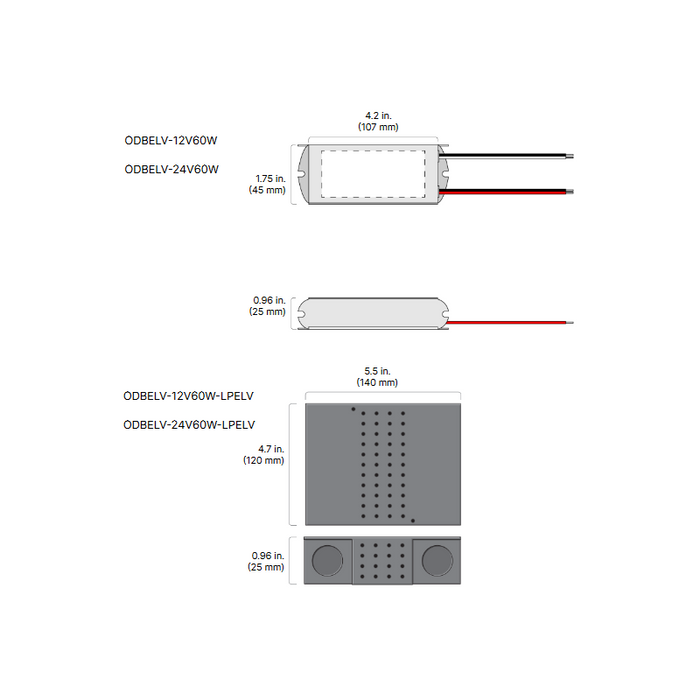

• Dimensions: 4.2 x 1.75 x 0.96 inches
• Temperature Rating: Ambient -22 to 194 degrees F (-30 to +90 degrees C)
• IP Rating: IP 20
