Diode Led DI-JBOX-LPS Lo-Pro Junction Box (Small)

Brand: DIODE LED
SKU: DI-JBOX-LPS
Availability: In Stock

Ships same day if ordered by 12 pm
$102.45
$102.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

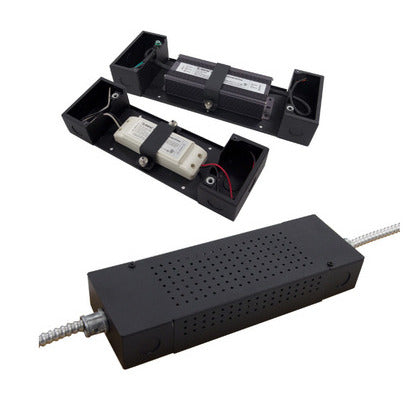

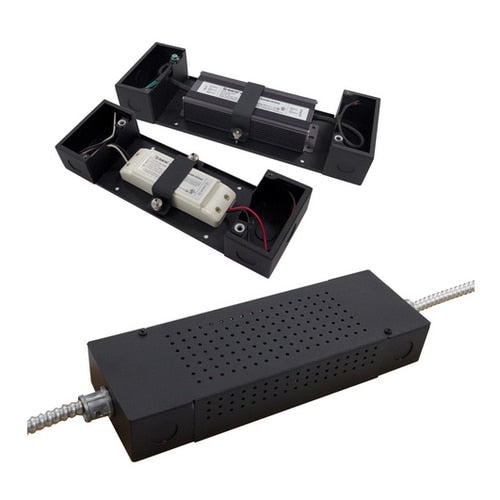

Diode LED DI-JBOX-LPS is a UL listed small Lo-Pro junction box designed for low-profile installations. Constructed from black powder-coated steel (NEMA 1), it provides three-sided ventilation and eight 0.87 in knockouts for flexible wiring. The enclosure accepts LED drivers, power supplies, and controls for indoor dry locations and air handling spaces per NEC 300.22(C). Included hardware supports cabinet or surface mounting and 22�14 AWG connectors.

  • UL listed low-profile steel enclosure with three-sided ventilation; NEMA 1 rating
  • Eight 0.87 in knockouts accepting 3/8 in strain reliefs; includes 22�14 AWG, 600V wire connectors
  • Includes driver mounting bracket and mounting hardware for cabinet or surface mounting; suitable for indoor/dry and air handling spaces per NEC 300.22(C)

Product Highlights

Small Lo-Pro junction box for LED drivers and power supplies; black powder-coated steel, three-sided ventilation, eight knockouts, includes mounting hardware and 22�14 AWG connectors; UL listed.

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-JBOX-LPS
  • Country of Origin: China
Technical Specifications
Brand
Diode LED
Manufacturer
Diode LED
Manufacturer Part Number (MPN)
DI-JBOX-LPS
Catalog Number
DI-JBOX-LPS
UPC / Barcode
848333010385
Product Type
Small Lo-Pro Junction Box / LED driver junction box
Material
Black powder-coated steel
Finish
Black powder-coated
Enclosure Rating
NEMA 1
Listing / Certifications
UL Listed; UL 508A, UL 1598, optional UL 2108 when paired with approved driver
Ventilation
Three-sided ventilation
Knockouts
Eight knockouts (0.87 in diameter) accepting 3/8 in strain reliefs and fittings
Knockout Diameter
0.87 in
Wire Connector Rating
22-14 AWG, 600V
Dimensions
11.25 in L x 3.75 in W x 1.90 in H
Weight
1.60 lb
Mounting
Cabinet mount or surface mount using included mounting screws
Included Accessories
Driver mounting bracket; ground screw; (2) thumb screws; (2) cover screws; (4) mounting screws; (6) 22-14 AWG wire connectors (600V); (2) 3/8 in NM cable strain reliefs
Suitable Applications
LED drivers, power supplies, controls, and electrical components
Suitable Locations
Indoor / Dry locations; suitable for air handling spaces per NEC 300.22(C)
