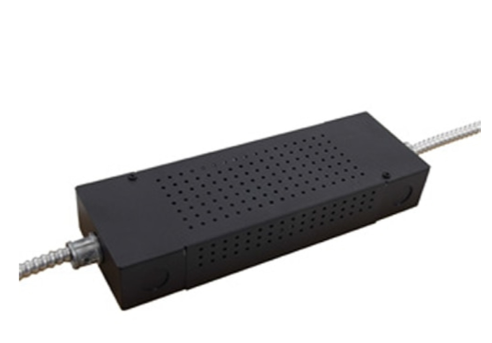

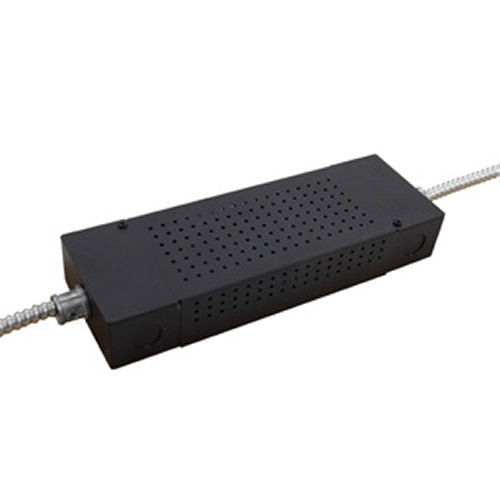

Diode Led DI-CV-MW24V90W-277-LPL Lo-Pro Jct Box Driver Combo 90W (24V)

Product Description

Diode LED DI-CV-MW24V90W-277-LPL is a Lo-Pro junction box and 90W constant-voltage LED driver combo that provides 24V DC output and accepts 120-277V AC input. The hard-wired driver supplies up to 90W for low-voltage LED tape, linear, under-cabinet, cove, display, and architectural accent lighting while the low-profile junction box offers mounting and service access. The assembly includes protections and supports common dimming and control systems.

• 24V DC constant-voltage output, 90W maximum; accepts 120-277V AC input (50/60Hz).
• Integrated low-profile rugged steel Lo-Pro junction box; IP67 rating and UL Listed, Class 2.
• Compatible with on/off switching, PWM dimmers, DMX systems and RGB(W) controllers; built-in short circuit, overcurrent, overvoltage and overtemperature protections.

Product Highlights

90W, 24V constant-voltage driver with integrated low-profile junction box, 120-277V AC input, IP67 and UL Listed, supports common dimmers and controls.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CV-MW24V90W-277-LPL
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-CV-MW24V90W-277-LPL
• Product Name: Lo-Pro junction box and driver combo
• Driver Type: Hard-wired constant voltage LED driver
• Output Voltage: 24V DC (constant voltage)
• Maximum Output Power: 90W
• Input Voltage: 120-277V AC
• Input Frequency: 50/60 Hz
• Output Current (Max): 3.75 A
• Enclosure: Lo-Pro low-profile rugged steel junction box
• Driver Housing: Class II plastic housing (driver)
• IP Rating: IP67
• Certifications: UL Listed, Class 2
• Dimensions (Driver): 5.9 in L _ 2.1 in W _ 1.4 in H
• Assembly Dimensions: 13.50 in _ 4.50 in _ 3.75 in
• Material: Rugged steel junction box
• Knockouts: 0.5 in.
• Control Compatibility: On/off switching, PWM dimmers, DMX systems, RGB(W) controllers and compatible low-voltage controls
• Protections: Short circuit, over current, over voltage, over temperature; auto-reset hiccup
• Primary Leads: SJTW 18/2 AWG
• Secondary Leads: SVT 18/2 AWG
• Country of Origin: China
