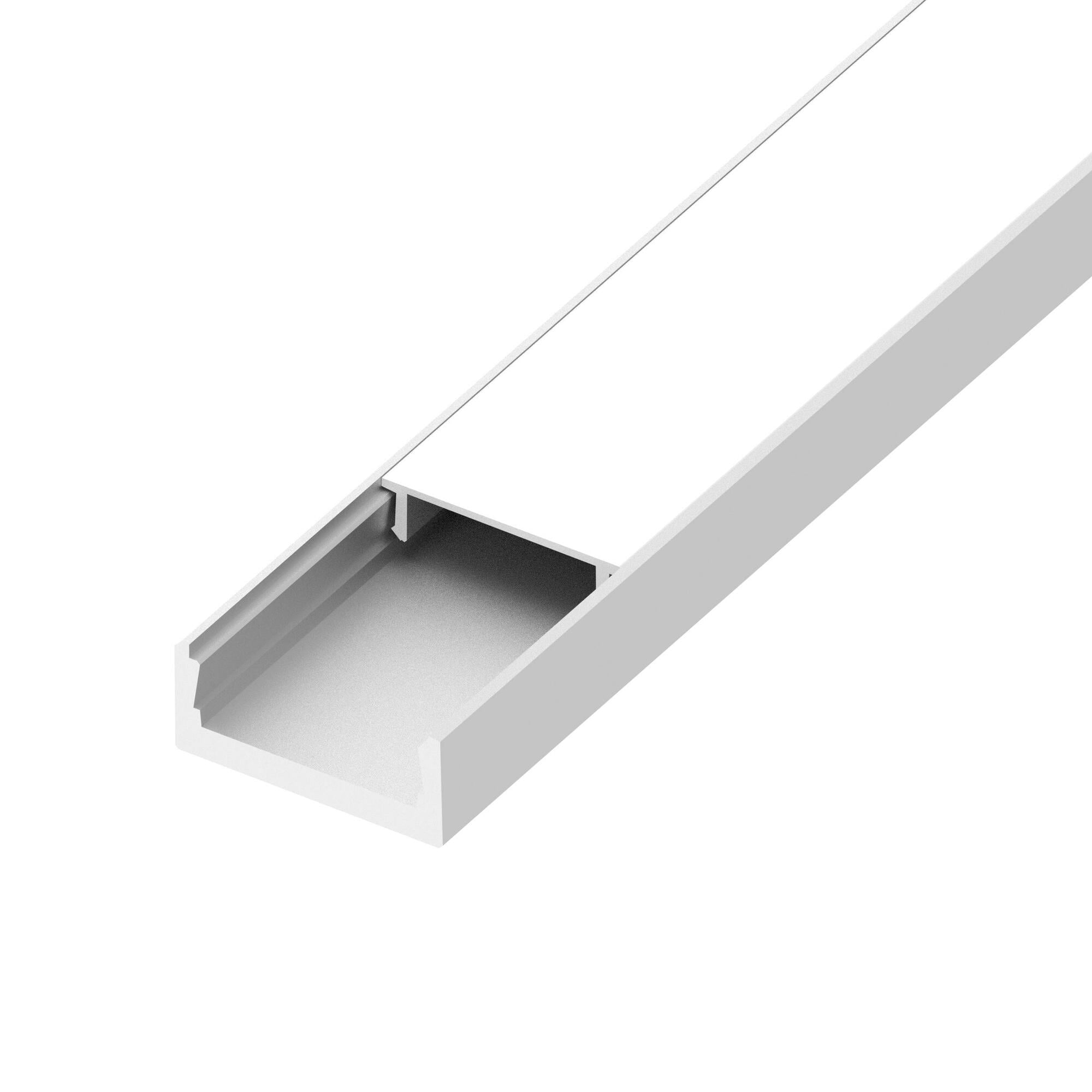

Diode Led DI-CPCHB-SL-48 Channel Bundle Slim (48 in.) Frosted Cover 1 Open End Cap 1 Closed End Cap 2 Mounting Clips

Product Description

Diode LED DI-CPCHB-SL-48 is a slim 48-inch channel bundle designed to house LED tape lighting with a frosted cover. The aluminum profile includes one open end cap, one closed end cap, and two mounting clips for millwork, surface, or recessed mounting. The rigid channel functions as a heat sink to cool tape light, protects from dust and debris, and delivers a diffused appearance for under-cabinet and linear LED installations.

• Includes frosted cover (lens), extrusion, 1 open end cap, 1 closed end cap, and 2 mounting clips
• Dimensions: 48 in length; width 0.82 in; height 0.38 in; weight 0.70 lb
• Mounting: millwork, surface mount, or recess mountable; channel acts as a heat sink and dust barrier

Product Highlights

Slim 48-inch aluminum channel bundle with frosted lens and included end caps and mounting clips; provides heat sinking and dust protection for LED tape lighting.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CPCHB-SL-48

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-CPCHB-SL-48
• Catalog Number: DI-CPCHB-SL-48
• UPC: 848333026645
• Length: 48 in (4 ft)
• Width: 0.82 in
• Height: 0.38 in
• Weight: 0.70 lb
• Cover: Frosted
• Included Components: Extrusion; frosted cover (lens); 1 open end cap; 1 closed end cap; 2 mounting clips; mounting hardware
• Mounting Type: Millwork; Surface mount; Recess mountable
• Finish Options: Aluminum; Black; White
• Purpose / Application: Houses LED tape lighting; provides diffused appearance, heat sinking, and protection from dust for under-cabinet and linear LED installations
• Product ID: 245775
• SKU: 1102161
• Alternate IDs: 31608; DIODICPCHBSL48; 89351; 2026093
