Diode Led DI-CPCHB-45-48W 45 Degree Channel Bundle 48 in

Product Description

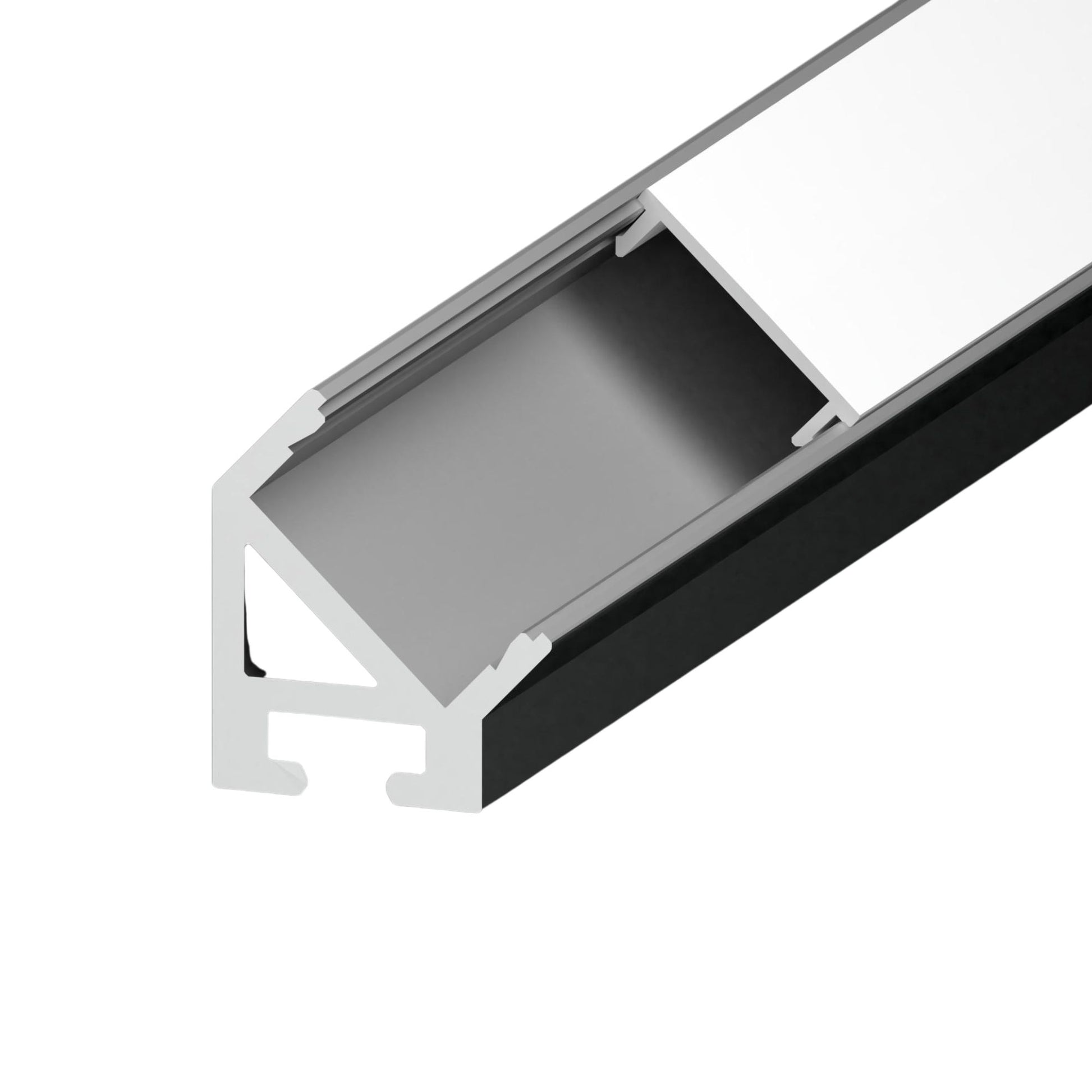

Diode LED DI-CPCHB-45-48W is a 48-inch, 45� angled channel bundle for LED tape light installations. The industrial-grade aluminum extrusion functions as a heat sink to cool and prolong LED tape life while providing a rigid, dust-resistant housing. The bundle includes a Classic Frosted lens, end caps, and mounting clips; it is field-cuttable, suitable for corner or surface mounting, and compatible with Streamlite and selected Diode LED tape lights.

• Aluminum 45� angled extrusion acts as a heat sink and provides a rigid, dust-proof housing
• Includes Classic Frosted lens, end caps, and surface mounting clips; field-cuttable for custom lengths
• Designed for corner or surface mounting; compatible with Streamlite connector and multiple Diode LED tape lights

Product Highlights

48 in 45� aluminum channel bundle with Classic Frosted lens, mounting clips, end caps, field-cuttable

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CPCHB-45-48W

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-CPCHB-45-48W
• Product Name: 45 Degree Channel Bundle
• Series: 45� Channel
• Product Type: LED tape light channel / channel component
• Length: 48 in.
• Profile Angle: 45�

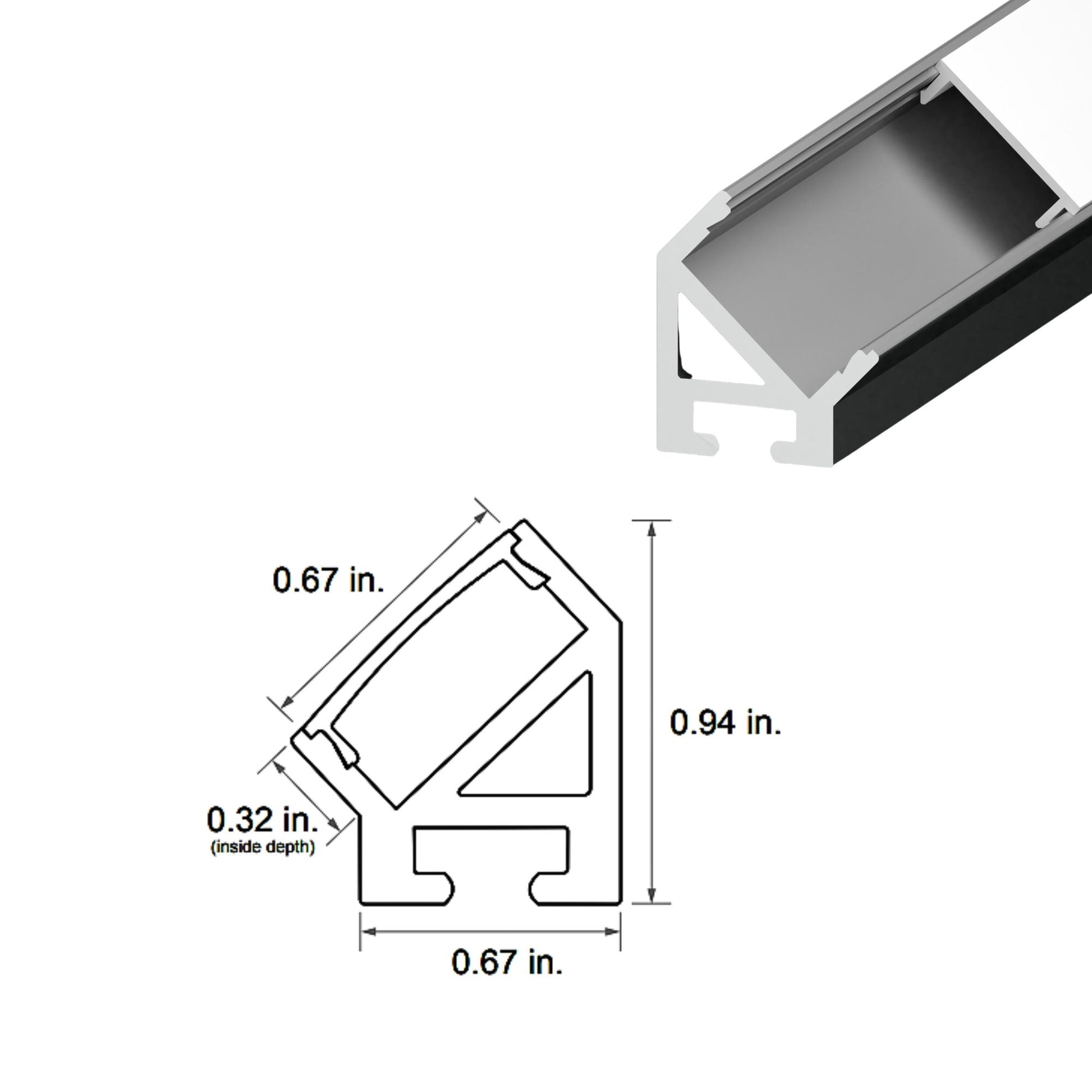

• Height: 0.94 in
• Width: 0.67 in
• Interior Width: 0.67 in
• Interior Depth: 0.32 in
• Material: Industrial-grade aluminum
• Finish: White
• Lens / Cover: Classic Frosted Lens
• Beam Angle: 120�
• IP Rating: IP20
• Mounting Type: Surface mount; corner mounting capable
• Included Components: 48 in. channel, Classic Frosted lens, 1 open end cap, 1 closed end cap, mounting clips
• Compatible Tape Lights: Streamlite connector compatible; compatible with select Diode LED tape lights (BLAZE, BLAZE X, DAZZLE PIXEL, STREAMLITE series, VALENT series)
• Field Cuttable: Yes
• Certifications: UL listed
• UPC: 848333030093
