Diode Led DI-CKT-24SP8-5 Clicktight Splice Connector 24 in. 5-Pack

Product Description

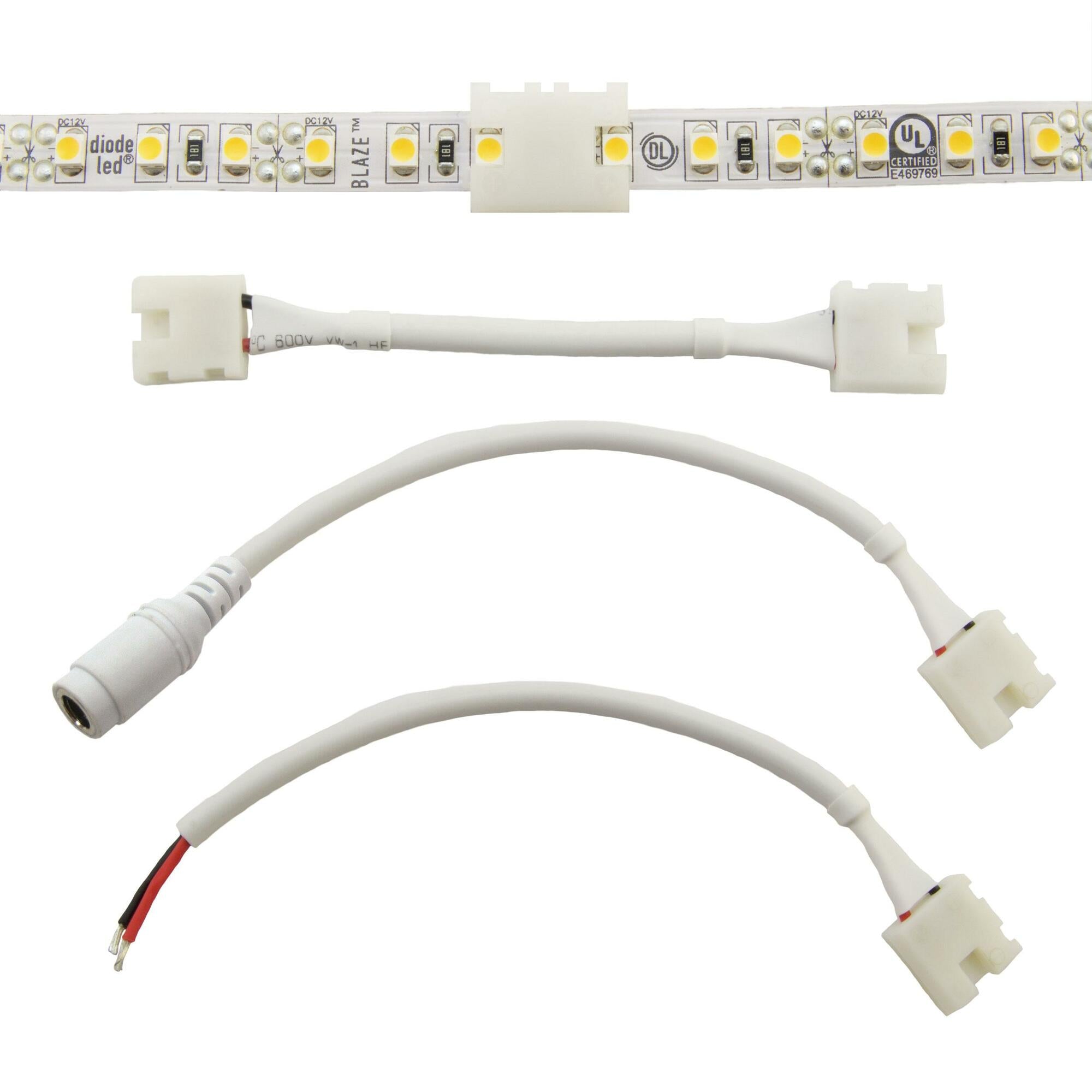

Diode LED DI-CKT-24SP8-5 is a solderless Clicktight splice connector with a 24 in. lead and diode window designed for 2464 wiring. It accepts UL 2464 20/2 AWG leads and is compatible with 8 mm single-color LED tape, including Avenue 24, Blaze, and Fluid View models. The connector supports Class 2 loads (60 W at 12 V, 96 W at 24 V) for indoor/dry installations and enables field splice, link, and DC plug connections without soldering.

• 24 in. UL 2464 20/2 AWG lead with diode/LED window for deeper tape insertion
• Solderless Clicktight splice for 8 mm single-color LED tape; compatible with Avenue 24, Blaze, Fluid View
• Class 2 maximum load: 60 W on 12 V circuits and 96 W on 24 V circuits; indoor/dry location use

Product Highlights

Solderless Clicktight splice connector with 24 in. UL 2464 20/2 AWG lead, diode window, compatible with 8 mm tape; 5-pack; supports 60 W (12 V) and 96 W (24 V).

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CKT-24SP8-5
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-CKT-24SP8-5
• Product Type: Clicktight splice connector
• Series: CLICKTIGHT Tape Light Connectors
• Package Quantity: 5-Pack
• Length: 24 in. (2 ft)
• Dimensions: 24 in. x 0.50 in. x 0.20 in.
• Weight: 0.20 lb
• Wire: UL 2464 20/2 AWG
• Compatible Tape Width: 8 mm
• Compatible Tape Lights: Avenue 24, Blaze, Fluid View
• Connector Design: Diode/LED window for deeper tape insertion
• Installation: Solderless
• Application: Splice connections, tape links, DC plug connections, bending extensions; attaches to hard-wired connection
• Maximum Class 2 Load: 60 W (12 V); 96 W (24 V)
• Environment: Indoor / Dry Location
• UPC: 848333013072
• Country of Origin: China
