Diode Led DI-CHB-S45-48AL S45 Channel (48 in Channel Bundle)

Brand: DIODE LED
SKU: DI-CHB-S45-48AL
Availability: Out Of Stock
$68.58
$68.58
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

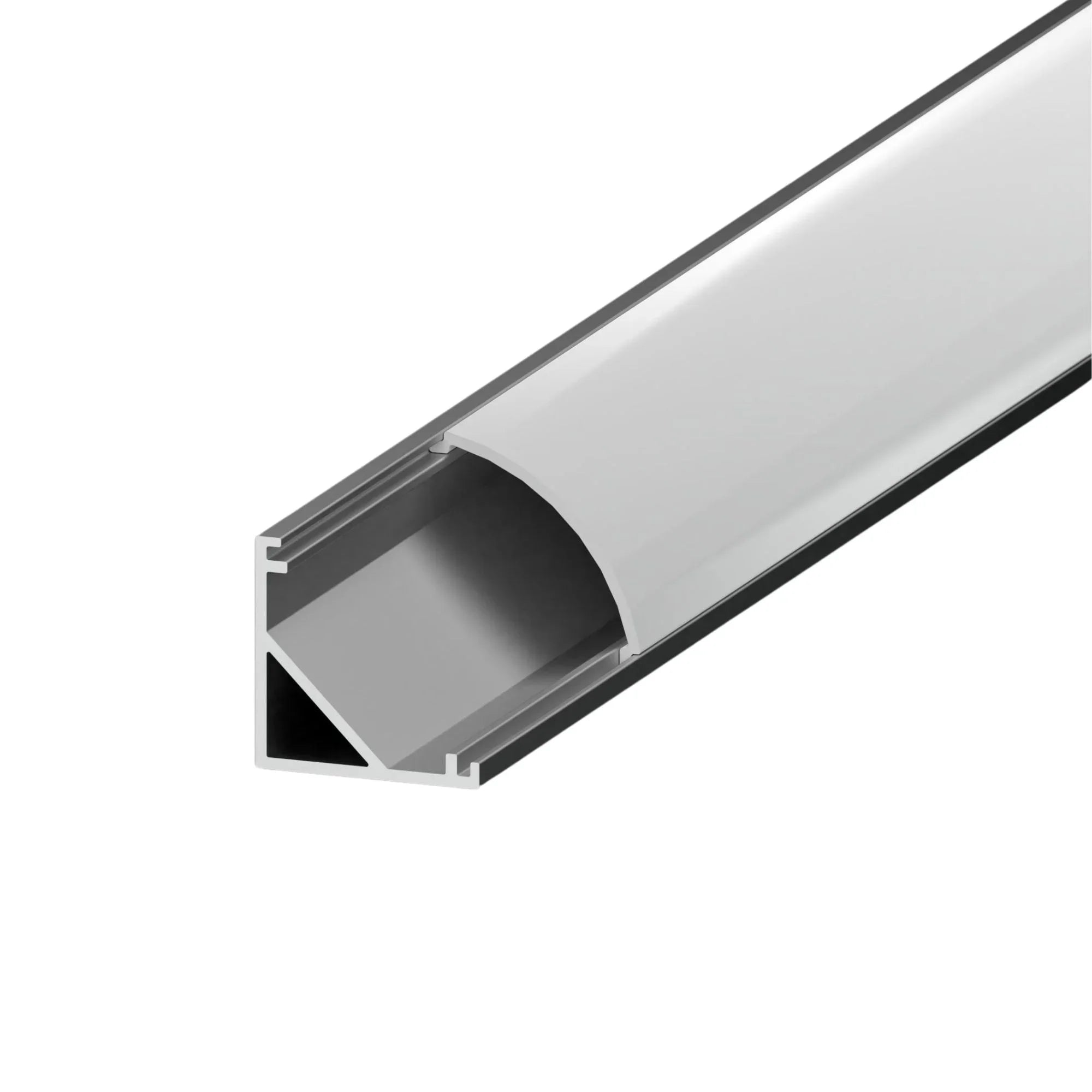

Diode LED DI-CHB-S45-48AL is a 48 in S45 channel aluminum extrusion designed to diffuse LED tape lights and produce a dotless effect with high-density tape. The rounded corner profile with a Classic Frosted lens provides even diffusion; the channel supports corner and surface/millwork mounting, includes end caps and mounting hardware, and provides a rigid housing and heat dissipation for LED tape.

  • Rounded corner aluminum extrusion with Classic Frosted lens for dotless diffusion of high-density LED tape.
  • Includes frosted lens, end caps, mounting clips, and mounting screws for 48 in channel installations.
  • Supports corner and surface/millwork mounting; provides rigid, dust-resistant housing and heat dissipation for LED tape.

Product Highlights

48 in aluminum LED tape channel with frosted lens, mounting hardware, corner/surface mounting.

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-CHB-S45-48AL
Technical Specifications
Brand
Diode LED
Manufacturer Part Number
DI-CHB-S45-48AL
Product Series
S45 Channel
Product Type
LED tape light channel

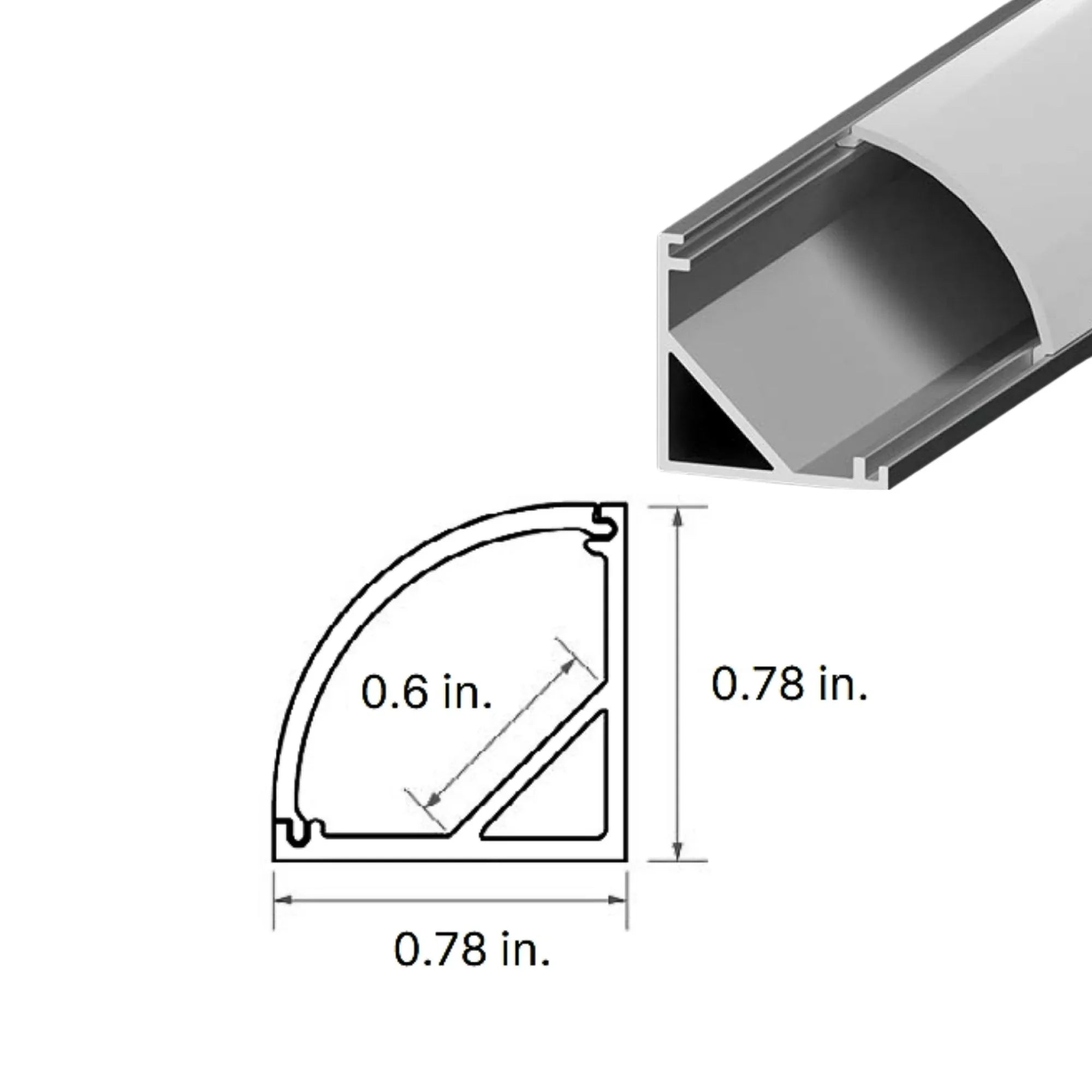

Length
48 in
Width
0.78 in
Height
0.78 in
Interior Depth
0.54 in
Interior Width
0.6 in
Weight
0.62 lb
Material
Aluminum extrusion
Finish
Aluminum (also available in Black and White)
Lens Type
Classic Frosted / Frosted Lens
Mounting Type
Corner mount; Surface / Millwork mount
Angle
45� (surface mount option)

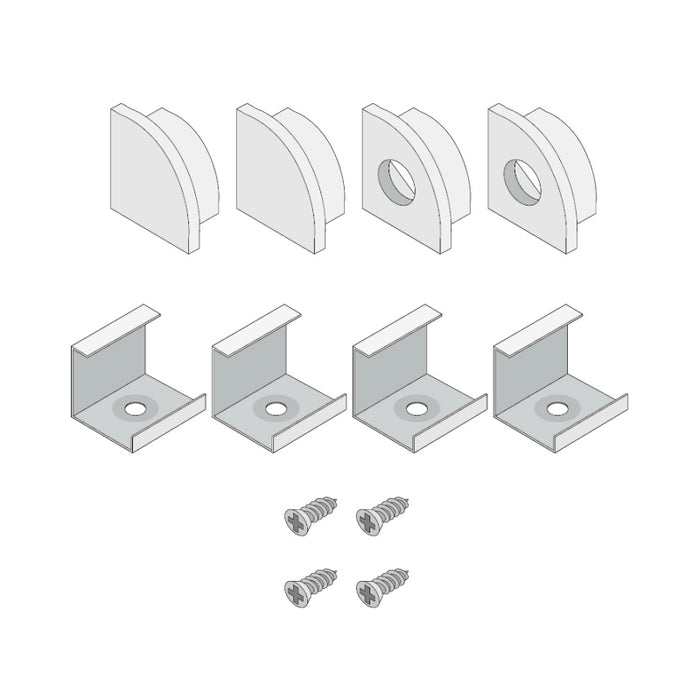

Included Accessories
Frosted lens, 1 open end cap, 1 closed end cap, 2 mounting clips, 2 mounting screws
Compatible Tape Lights
BLAZE, BLAZE COLORS, BLAZE MINI, BLAZE X, DAZZLE PIXEL RGB 12V, DAZZLE PIXEL RGB 24V, DAZZLE PIXEL RGBW 12V, DAZZLE PIXEL RGBW 24V, STREAMLITE, STREAMLITE ECO, STREAMLITE PIXEL RGBW, STREAMLITE RGBW, STREAMLITE TUNABLE WHITE, STREAMLITE WARM DIM, VALENT, VALENT MINI 8MM, VALENT MINI 10MM, VALENT RGBTW, VALENT RGBW, VALENT TUNABLE WHITE, VALENT WARM DIM, VALENT X, VALENT X TUNABLE WHITE

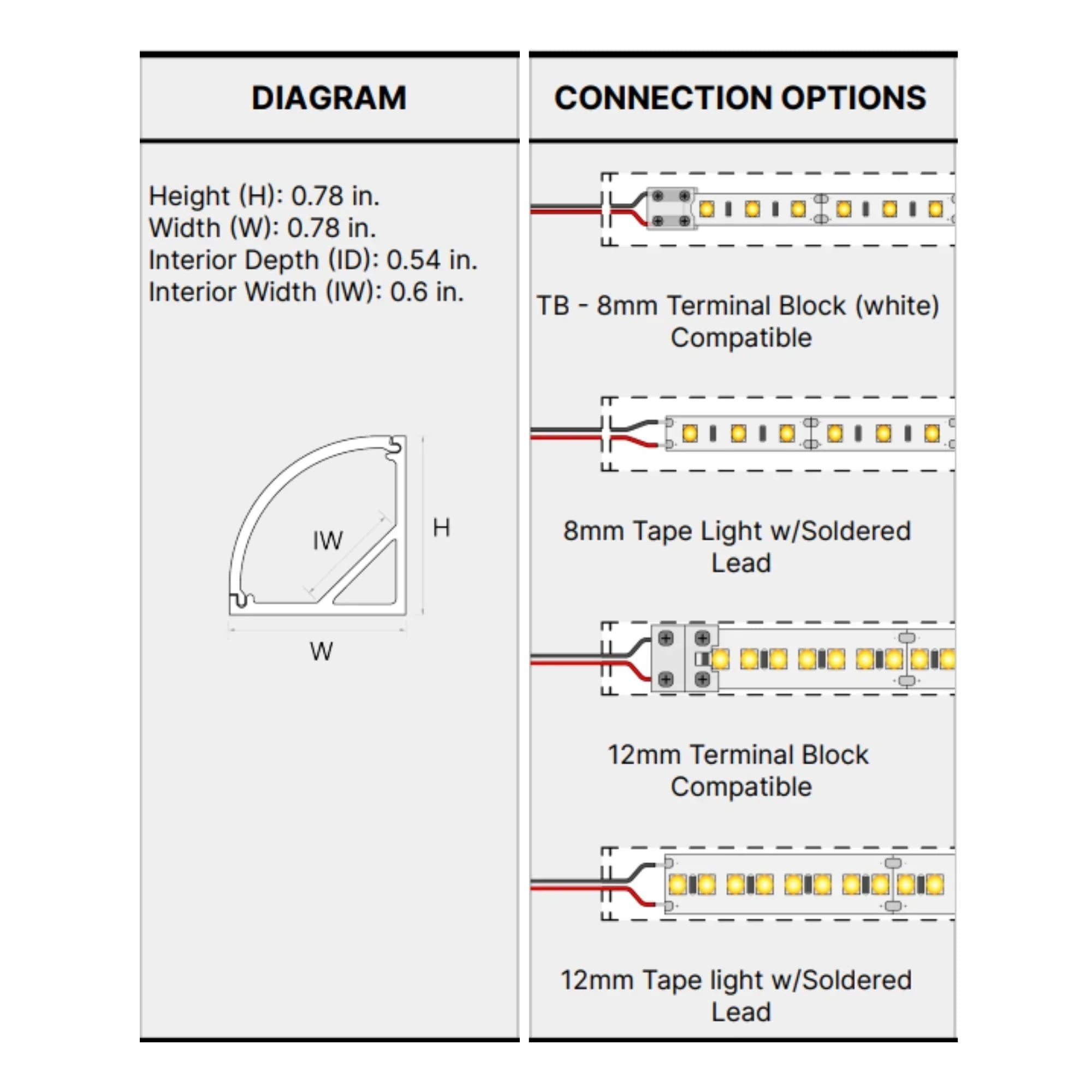

Connection Options
8mm terminal block compatible; Streamlite connector compatible
Beam Angle
120�
Location Rating
Wet rated (suitable for indoor and outdoor wet locations)
Family
S-Series Channels
Application
LED tape light installations; accent and under-cabinet lighting
SKU
DI-CHB-S45-48AL
