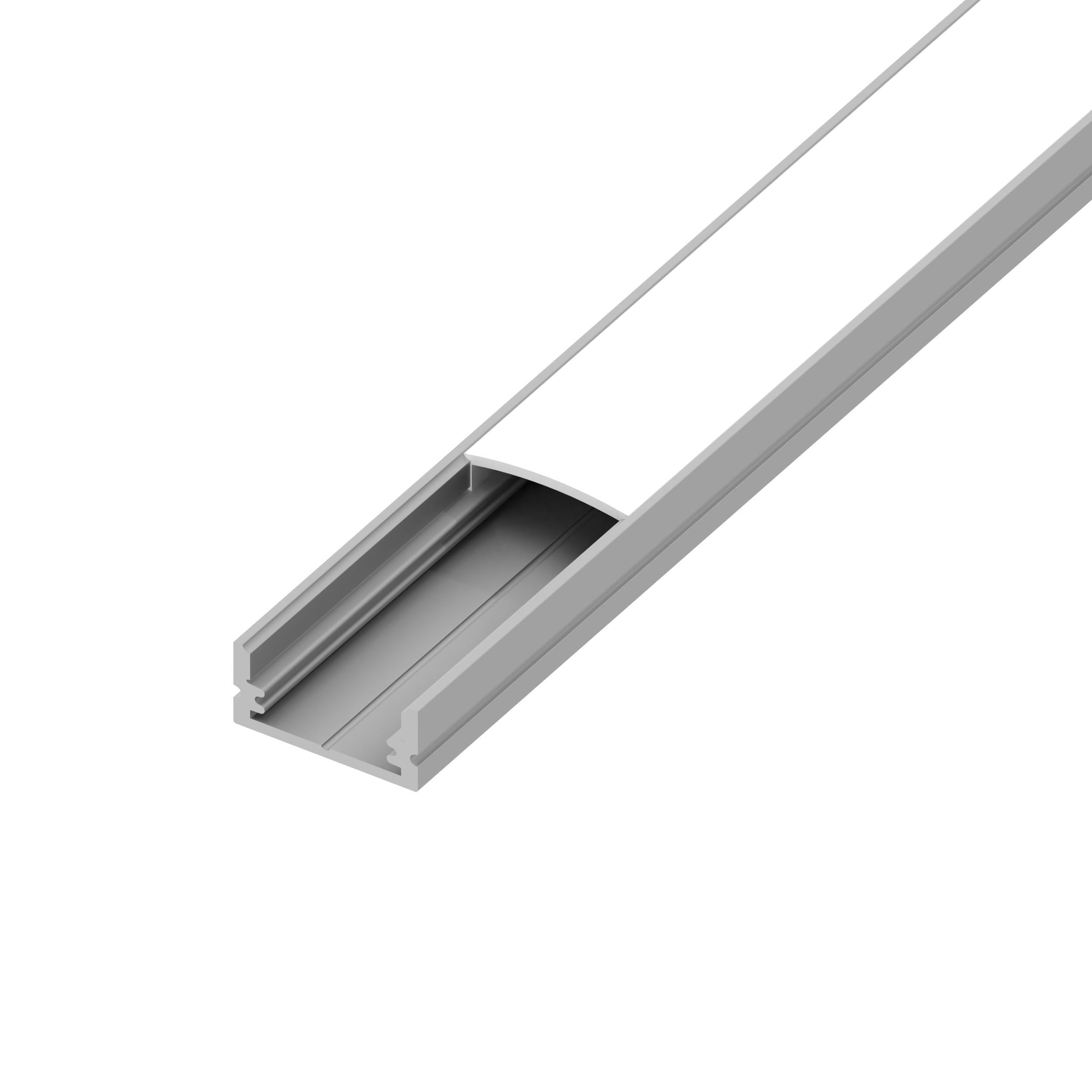

Diode Led DI-CHB-S1-96AL S1 channel bundle 96 in (120�)

Product Description

Diode LED DI-CHB-S1-96AL is a 96-inch S1 channel bundle that provides a slim aluminum extrusion with a classic frosted diffusing lens for LED tape light installations. The channel measures 96 in x 0.67 in x 0.31 in, includes end caps and mounting clips, supports surface and millwork mounting, and serves as a heat sink to help manage tape temperature while protecting strips from dust (IP20).

• Includes frosted diffusing lens and accessory pack: 2 open end caps, 2 closed end caps, and 4 mounting clips.
• Dimensions: 96 in length; profile height 0.31 in; exterior width 0.67 in; interior width 0.58 in (recommended tape width).
• Aluminum extrusion suitable for surface or millwork mounting; functions as a dust-protective housing and heat sink.

Product Highlights

Slim 96 in aluminum channel with frosted diffuser, mounting clips and end caps; IP20.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CHB-S1-96AL

Technical Specifications

• Brand: Diode LED
• MPN: DI-CHB-S1-96AL
• Product Type: LED tape light channel bundle
• Series: S1 Channel
• Material: Aluminum
• Finish: Aluminum / Brushed Aluminum
• Length: 96 in (8 ft)
• Product Dimensions: 96 in x 0.67 in x 0.31 in
• Profile (Height): 0.31 in
• Width (Exterior): 0.67 in
• Interior Width: 0.58 in
• Interior Depth: 0.25 in
• Diffuser / Lens: Classic frosted diffusing lens
• IP Rating: IP20 (channel only, indoor use)
• Weight: 0.70 lb
• Includes: Channel, frosted cover, 2 open end caps, 2 closed end caps, 4 mounting clips
• Mounting Type: Surface mount, millwork (recessed) mounting
• UPC: 84833303354
