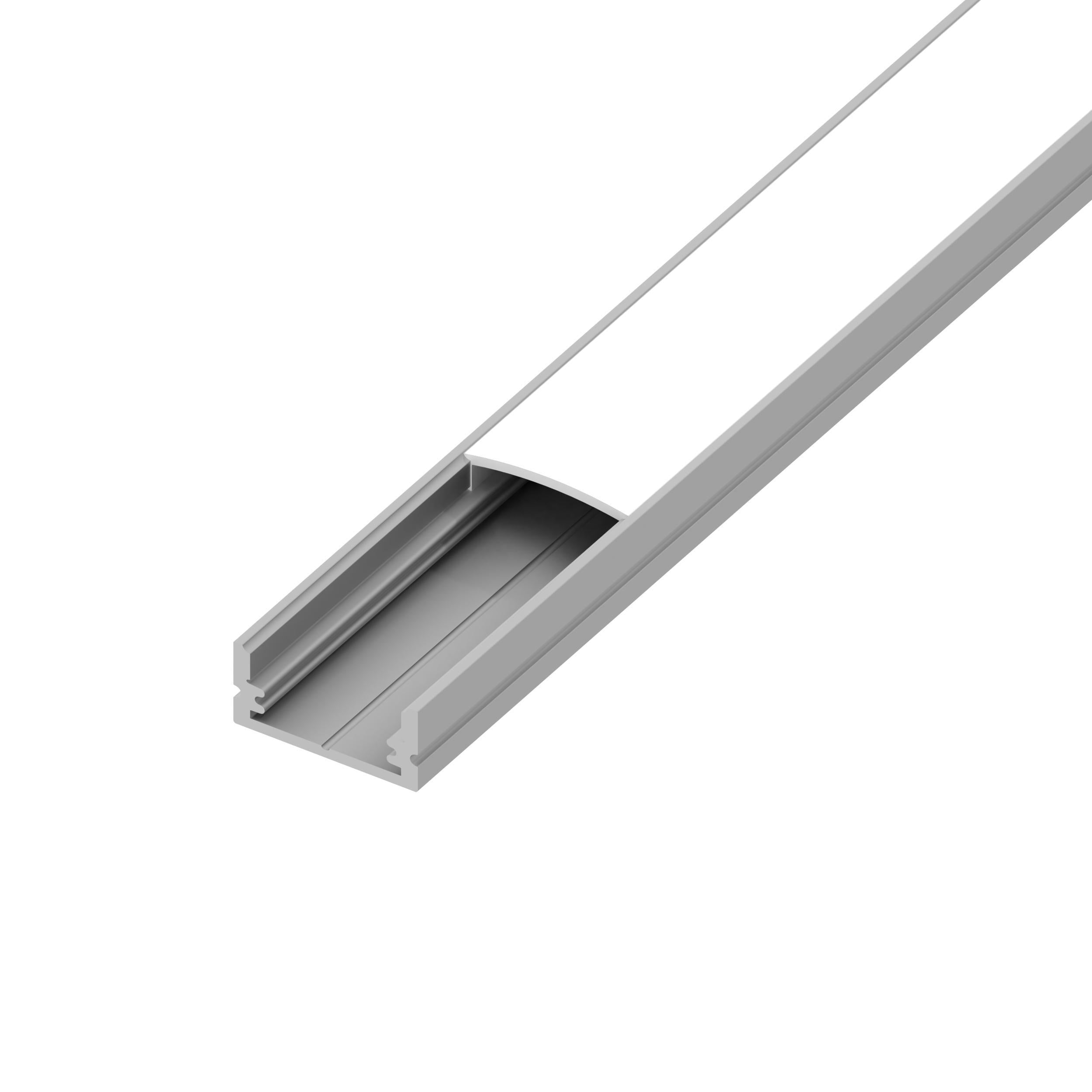

Diode Led DI-CHB-S1-48AL S1 Channel Bundle 48 in

Product Description

Diode LED DI-CHB-S1-48AL is a 48-inch S1 channel bundle featuring a low-profile aluminum extrusion and a classic frosted lens for even diffusion of LED tape light. The bundle includes channel hardware and accessory options for millwork or surface mounting. The slim profile (0.31 in H x 0.67 in W) provides a rigid, dust-resistant housing that can be recessed or surface mounted.

• Aluminum extrusion with classic frosted diffusing lens for even light distribution and dust protection.
• Includes 48 in channel, frosted lens/cover, end caps (1 open, 1 closed), mounting clips and accessory pack; mounting options include millwork (recessed) and surface mount.
• Slim profile (0.31 in H x 0.67 in W), interior depth 0.25 in, interior width 0.58 in; IP20, UL listed; acts as a rigid housing and heat sink for LED tape light.

Product Highlights

48-inch aluminum LED tape light channel with frosted lens, mounting clips, and end caps.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-CHB-S1-48AL

Technical Specifications

• Manufacturer Part Number: DI-CHB-S1-48AL
• Brand: Diode LED
• Series: S1 Channel
• Product Type: LED tape light channel / channel bundle
• Length: 48 in
• Height: 0.31 in
• Width: 0.67 in
• Interior Depth: 0.25 in
• Interior Width: 0.58 in
• Lens: Classic Frosted
• Mounting Type: Millwork (recessed), Surface mount; magnetic U-clip; surface mounting clips
• Material / Finish: Aluminum
• Included Components: 48 in channel, frosted lens/cover, 1 open end cap, 1 closed end cap, 2 surface mounting clips, accessory pack (options vary)
• Beam Angle: 120�
• IP Rating: IP20
• Listing: UL Listed
• UPC: 848333011610
• SKU: 89565
• Compatible Tape Light Families: BLAZE, BLAZE COLORS, BLAZE MINI, BLAZE X, DAZZLE PIXEL RGB 12V/24V, DAZZLE PIXEL RGBW 12V/24V, STREAMLITE families, VALENT families
