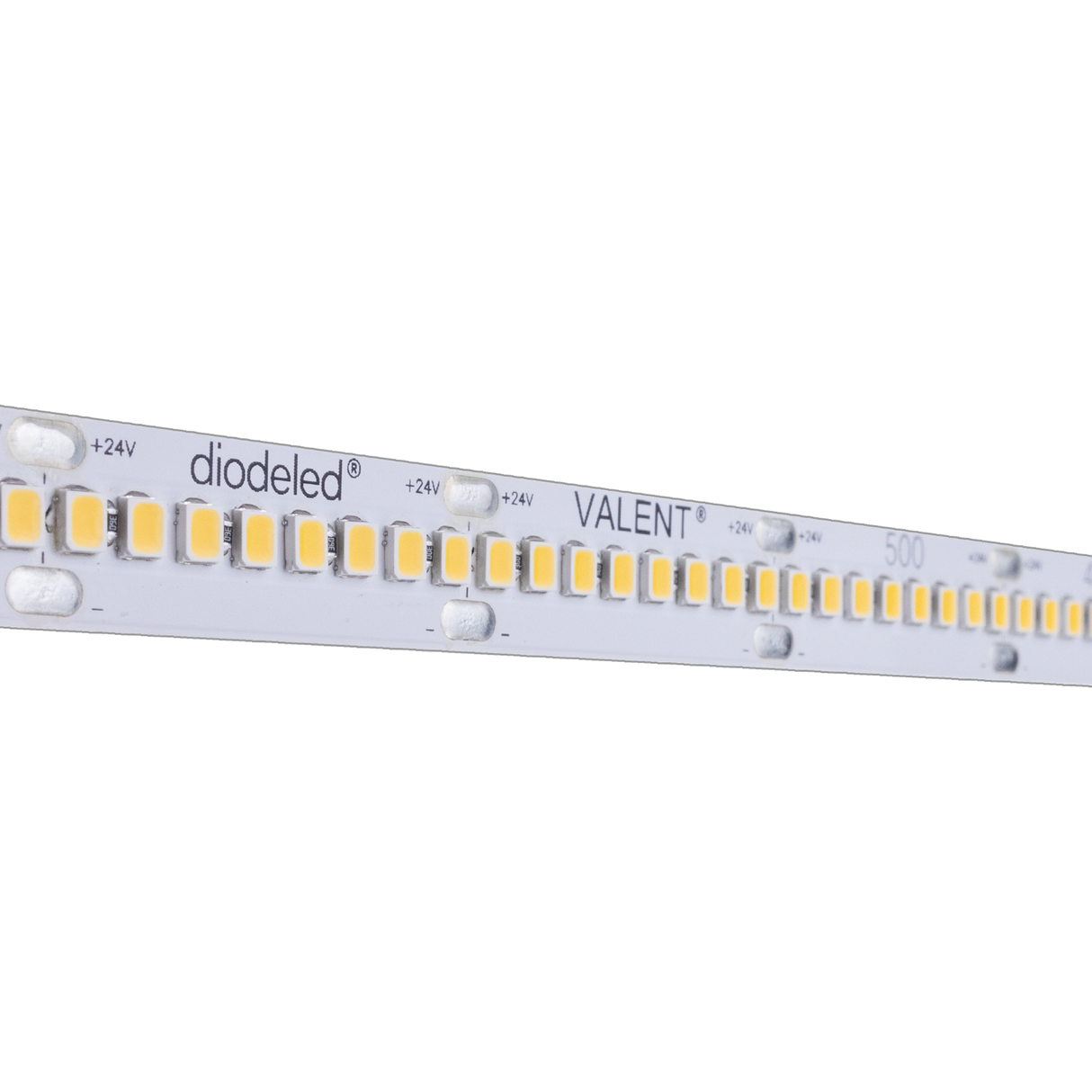

Diode Led DI-24V-VL2-27-100 Valent 200 LED Tape Light 172W (100ft Reel)

Product Description

Diode LED DI-24V-VL2-27-100 is a 24V high-density LED tape light supplied on a 100 ft reel for linear lighting installations. The tape delivers 1.72 W/ft and produces approximately 221 lm/ft with 90+ CRI at 2700K, supports dimming, and is rated for more than 50,000 hours. It is designed for continuous runs with 72 LEDs per foot and a 0.47 in x 0.10 in tape profile.

• High-density 72 LEDs/ft (2835 chips) with 1.32 in cut points for dotless linear light
• Electrical: 24 VDC input, 1.72 W/ft (172 W total for 100 ft), dimmable, maximum recommended run 55 ft
• Photometric and durability: 221 lm/ft, 2700K color temperature, 90+ CRI, rated >50,000 hours; UL Listed and damp location rated

Product Highlights

24 VDC high-density LED tape, 1.72 W/ft and 221 lm/ft, 100 ft reel, 72 LEDs/ft, cuttable every 1.32 in, >50,000 hours

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-24V-VL2-27-100

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-24V-VL2-27-100
• Product Type: High-density LED Tape Light
• Series: Valent 200
• Length: 100 ft
• Input Voltage: 24 VDC
• Power Consumption: 1.72 W/ft
• Total Wattage: 172 W (100 ft reel)
• Luminous Flux: 221 lm/ft
• Color Temperature: 2700 K
• CRI: 90+
• Rated Life: >50,000 hours (TM-21 / LM-80)
• Dimmable: Yes
• Maximum Run Length: 55 ft
• Cut Points: Every 1.32 in
• LED Density: 72 LEDs/ft
• LED Chip Type: 2835
• Dimensions (Tape Profile): 0.47 in W x 0.10 in H
• Lead Wire: 36 in. bare lead, 20/2 AWG UL 2464 with strain relief
• Environment: Indoor / Damp Location (IP20)
• Certifications: UL Listed 2108; RoHS
