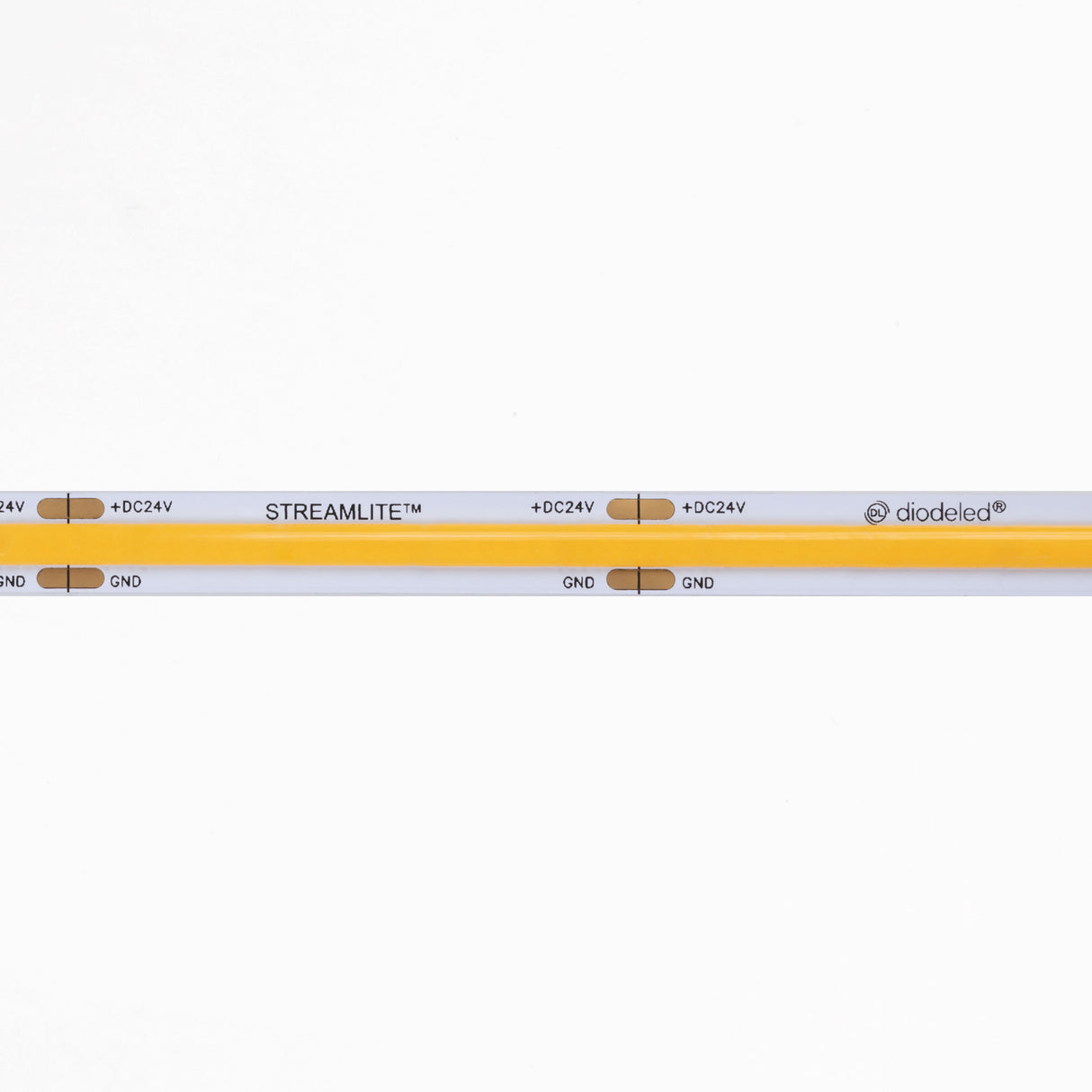

Diode Led DI-24V-STMLT-30-100 Streamlite LED Tape Light 3.3W/ft (100 ft Reel, 180�)

Product Description

Diode LED DI-24V-STMLT-30-100 is a 100 ft Streamlite diffused linear LED tape light that operates at 24V DC and consumes 3.3W per foot, producing up to 262 lumens per foot with a CRI of 90+. The ultra-compact profile (0.31 in x 0.08 in) provides dot-free, 180� beam angle illumination with 1.8 in cut points and a maximum run length of 20 ft. The tape includes a 36 in 20/2 AWG bare lead with strain relief and is rated for indoor/damp locations (IP20).

• 24 V DC operation, 3.3 W per foot, up to 262 lm/ft with CRI 90+
• Dot-free diffused illumination, 180� beam angle, 0.31 in x 0.08 in profile
• 100 ft reel with 1.8 in cut points, 36 in 20/2 AWG bare lead, max run 20 ft

Product Highlights

Diffused, dot-free 24V LED tape light; 3.3W/ft and 262 lm/ft; 100 ft reel with 1.8 in cut points, 20 ft max run, IP20, UL Listed, >50,000 hr life.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-24V-STMLT-30-100

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-24V-STMLT-30-100
• Series: STREAMLITE
• Product Type: Diffused linear LED tape light
• Input Voltage: 24 V DC
• Power Consumption: 3.3 W/ft (330 W for full 100 ft reel)
• Length: 100 ft
• Lumens: 262 lumens per foot
• Color Temperature: 3000 K
• Color Rendering Index (CRI): 90+
• Beam Angle: 180�
• Maximum Run Length: 20 ft per run
• Cut Points: 1.8 in
• Lead Wire: 36 in bare lead, 20/2 AWG with strain relief (see notes)
• Profile (W x H): 0.31 in x 0.08 in
• LED Density: 160 LEDs per ft
• Rated Life: >50,000 hours
• Operating Temperature: -4 �F to 176 �F
• Location Rating: Indoor/Damp (IP20)
• Certifications: UL Listed 2108
• Dimmable: Yes (requires compatible dimmer/driver)
