Description

Product Description

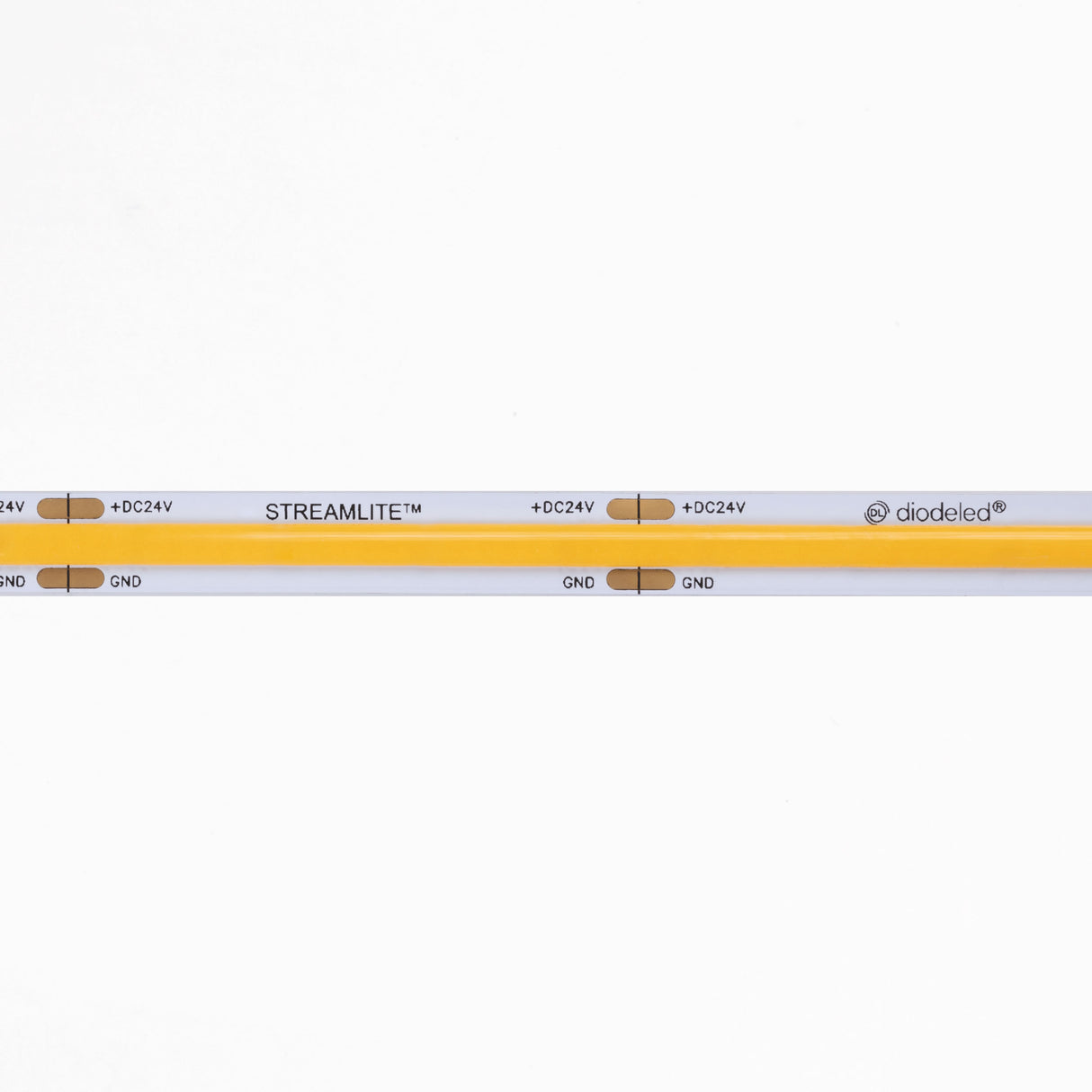

Diode LED DI-24V-STMLT-27-100 is a 24VDC Streamlite diffused linear LED tape light supplied on a 100 ft reel that provides dot-free, uniform illumination. This 2700K warm white tape produces 244 lumens per foot at 3.3W/ft, features 90+ CRI, 160 LEDs per foot and a 180� beam angle. It is dimmable at 24VDC, has cut points every 1.8 inches and a maximum continuous run of 20 ft, and is rated IP20 for indoor/damp locations.

  • Dot-free diffused linear LED tape, 2700K producing 244 lm/ft at 3.3 W/ft with 90+ CRI and 160 LEDs/ft
  • 24VDC input, 24V dimmable, maximum continuous run 20 ft with cut points every 1.8 in
  • 100 ft reel with 36 in bare lead (20/2 AWG UL 2464) and strain relief; IP20 indoor/damp rating and >50,000 hr rated life

Product Highlights

Dot-free 2700K Streamlite LED tape, 24VDC, 3.3 W/ft, 244 lm/ft, 100 ft reel, 180� beam, IP20, UL Listed

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-24V-STMLT-27-100
Technical Specifications
Brand
Diode LED
Manufacturer Part Number
DI-24V-STMLT-27-100
Series
STREAMLITE
Product Type
Dot-free diffused linear LED tape light
Length
100 ft (reel)
Input Voltage
24VDC
Power Consumption
3.3 W/ft
Total Power
330 W (3.3 W/ft _ 100 ft) � note: maximum continuous run is 20 ft, so total reel power refers to powering entire reel without regard to max continuous run
Color Temperature
2700K
Lumens per foot
244 lm/ft
CRI
90+
Dimmable
Yes (24VDC dimmable)
Maximum Run Length
20 ft
Cut Points
Every 1.8 in
Beam Angle
180�
LED Density
160 LEDs/ft
Dimensions (profile)
0.31 in W _ 0.08 in H
Lead Wire
36 in bare lead 20/2 AWG UL 2464 with strain relief
Rated Life
>50,000 hours (TM-21 / LM-80)
Environment / IP Rating
Indoor / Damp (IP20)
Operating Temperature
-4 �F to 176 �F
Certifications
UL Listed 2108
UPC
848333036798
