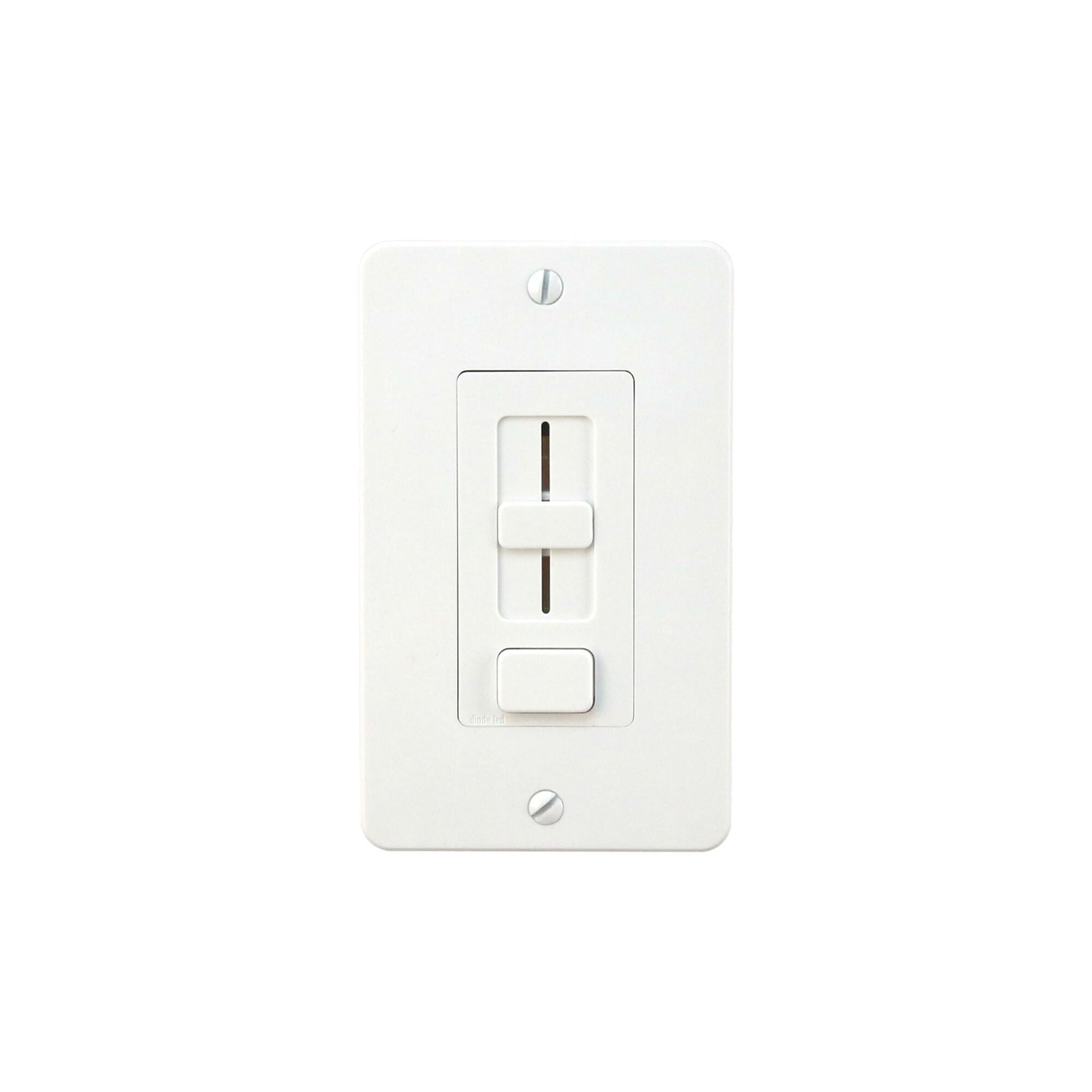

Diode Led DI-24V-SE-60W Switchex Driver and Dimmer Switch 60W

Product Description

Diode LED DI-24V-SE-60W is a Switchex driver and dimmer switch combo that provides 24V DC output with a maximum power rating of 60W for low-voltage LED systems. The unit integrates a regulated constant-voltage LED driver and a single-pole preset dimmer with push on/off in a compact device designed for in-wall mounting. It supports smooth dimming and includes protections for common fault conditions.

• Integrated 24V DC constant-voltage driver and single-pole preset dimmer providing up to 60W (2.5 A) output.
• Dimming range 100% to 5% with no minimum load; adjustable output dial (+1V) for voltage drop compensation and protections for short circuit, thermal runaway, and over voltage.
• Designed for single-gang wall mounting; includes interchangeable faceplates, wire connectors, mounting hardware; certified to cULus, RoHS, and CE standards.

Product Highlights

All-in-one 24V DC 60W LED driver and in-wall dimmer with 100%�5% dimming, adjustable output compensation, and integrated protections; includes faceplates and mounting hardware.

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-24V-SE-60W

Technical Specifications

• Brand: Diode LED
• MPN: DI-24V-SE-60W
• Product Type: Switchex driver and dimmer switch combo (LED driver & in-wall dimmer)
• Input Voltage: 120 VAC, 60 Hz (in-wall mains input)
• Output Voltage: 24 V DC
• Maximum Load: 60 W (2.5 A at 24 V)
• Output Current: 2.5 A
• Dimming Range: 100% to 5%
• Dimming Type: Single-pole preset dimmer with push on/off
• Minimum Load: No minimum load required (manufacturer claim)
• Voltage Adjustment: Adjustable output dial (+1 V) for voltage drop compensation
• Protections: Short circuit, thermal runaway, over voltage protection
• Mounting Type: Wall mount (fits standard single-gang electrical box)
• Included Components: Switchex driver/dimmer, interchangeable faceplates, voltage barrier partition, wire connectors, mounting screws
• Certifications: cULus, RoHS, CE
• Operating Temperature: 32�F to 104�F (0�C to 40�C)
• Environment: Indoor (manufacturer states 'Indoor / Damp Location'); IP20
• Dimensions: 4.1 x 2.8 x 1.5 inches
• Weight: 9.12 ounces
• UPC: 848333004957
