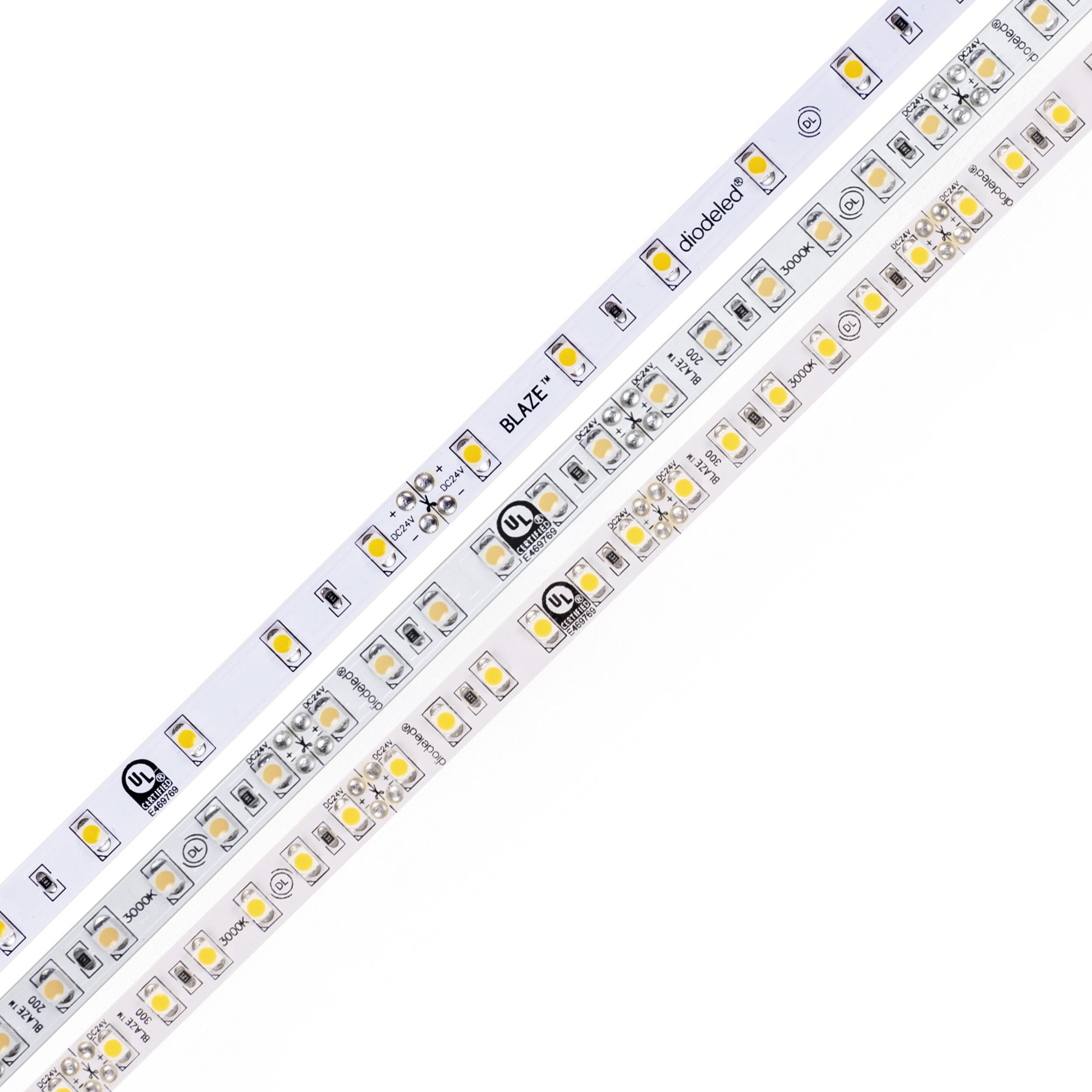

DIODE LED Diode Led DI-24V-BLBSC3-30-100 Blaze 300 LED Tape Light 4.5W/ft (100 ft Spool)
DIODE LED Diode Led DI-24V-BLBSC3-30-100 Blaze 300 LED Tape Light 4.5W/ft (100 ft Spool)

Diode Led DI-24V-BLBSC3-30-100 Blaze 300 LED Tape Light 4.5W/ft (100 ft Spool)

Brand: DIODE LED
SKU: DI-24V-BLBSC3-30-100
Availability: In Stock

Ships same day if ordered by 12 pm

$1,331.03
$1,331.03
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

Diode LED DI-24V-BLBSC3-30-100 is a Blaze 300 series 24V LED tape light supplied on a 100 ft spool for continuous linear lighting runs. It produces approximately 344 lumens per foot at about 4.5 W per foot with 36 LEDs per foot and 90+ CRI, and is rated for 50,000 hours. The tape is dimmable, cuttable at 2 in intervals, and intended for indoor/damp location use.

  • 24 V DC input; 100 ft spool; adhesive-backed tape for linear installations.
  • Approximately 344 lm/ft; 4.5 W per ft (450 W total for 100 ft); 36 LEDs per ft; 90+ CRI; 50,000 hour rated life.
  • Dimmable; maximum continuous run up to 22 ft for many configurations; beam angle 120�; cuttable at 2 in intervals.

Product Highlights

Blaze 300 series, 24V tape light on 100 ft spool; 344 lm/ft, 4.5 W/ft, 90+ CRI, 50,000 hour life; indoor/damp rated.

Product Information

Standard Information

  • Brand: DIODE LED
  • Manufacturer Part Number: DI-24V-BLBSC3-30-100
  • Country of Origin: China
Technical Specifications
Manufacturer
Diode LED
Manufacturer Part Number
DI-24V-BLBSC3-30-100
Brand
Diode LED
UPC
848333026102
Product Category
Tape Light - LED Strip
Input Voltage
24 V DC
Power Consumption
4.5 W per ft
Total Wattage (100 ft spool)
450 W
Length
100 ft (spool)
Color Temperature (CCT)
3000K
CRI
90+
Lumens per ft
344 lm/ft
Rated Life
50,000 hours
Dimmable
Yes
Maximum Run
Up to 22 ft (for DI-24V-BLBSC3 family)
Beam Angle
120�
LED Density
36 LEDs per ft
Cutting Interval
2 in
Width
0.31 in
Height
1/8 in
Weight
6.53 lb
Operating Temperature Range
-4 �F to 176 �F
Environment / IP Rating
Indoor / Damp Location (IP20)
Certifications
CE; RoHS; UL Component Recognized; UL Listed
Connection Type
Tape Light
Mounting
Adhesive backing
Flexibility
Top bend (slight flexibility)
Special Features
Title 20 / 24 Compliant (when configured appropriately)
