Diode Led DI-24V-BLBSC1-27-016 Blaze 100 LED Tape Light 24V (16.4 ft spool) DI-24V-BLBSC1-27-016

Product Description

Diode LED DI-24V-BLBSC1-27-016 is a 16.4 ft BLAZE 100 LED tape light that operates at 24V for low-voltage indoor lighting. It delivers 113 lumens per foot with 90+ CRI and a 2700K color temperature while drawing approximately 1.46 W per foot. The strip is dimmable with a compatible driver, field-cuttable every 3.93 inches, and supports continuous runs up to 55 ft for under-cabinet, cove, display, and task lighting applications.

• 24V low-voltage tape light on a 16.4 ft spool; 90+ CRI and 2700K
• 113 lumens per foot; approximately 1.46 W per foot (23.95W total); dimmable
• Field-cuttable every 3.93 in; supports up to 55 ft continuous run; 120� beam angle; IP20 indoor/damp rating

Product Highlights

16.4 ft BLAZE 100 tape light, 24V, 113 lm/ft, 1.46 W/ft, 90+ CRI, dimmable, field-cuttable, up to 55 ft run

Product Information

Standard Information

• Brand: DIODE LED
• Manufacturer Part Number: DI-24V-BLBSC1-27-016
• Country of Origin: China

Technical Specifications

• Brand: Diode LED
• Manufacturer Part Number: DI-24V-BLBSC1-27-016
• Input Voltage: 24V DC
• Length: 16.4 ft (spool)
• Wattage: 24 Watts (listed 23.95W)
• Power Consumption per Foot: 1.46 W/ft
• Lumens per Foot: 113 lm/ft
• Color Temperature: 2700K
• Color Rendering (CRI): 90+
• LEDs per Foot: 18 LEDs/ft
• Max Run: Up to 55 ft continuous

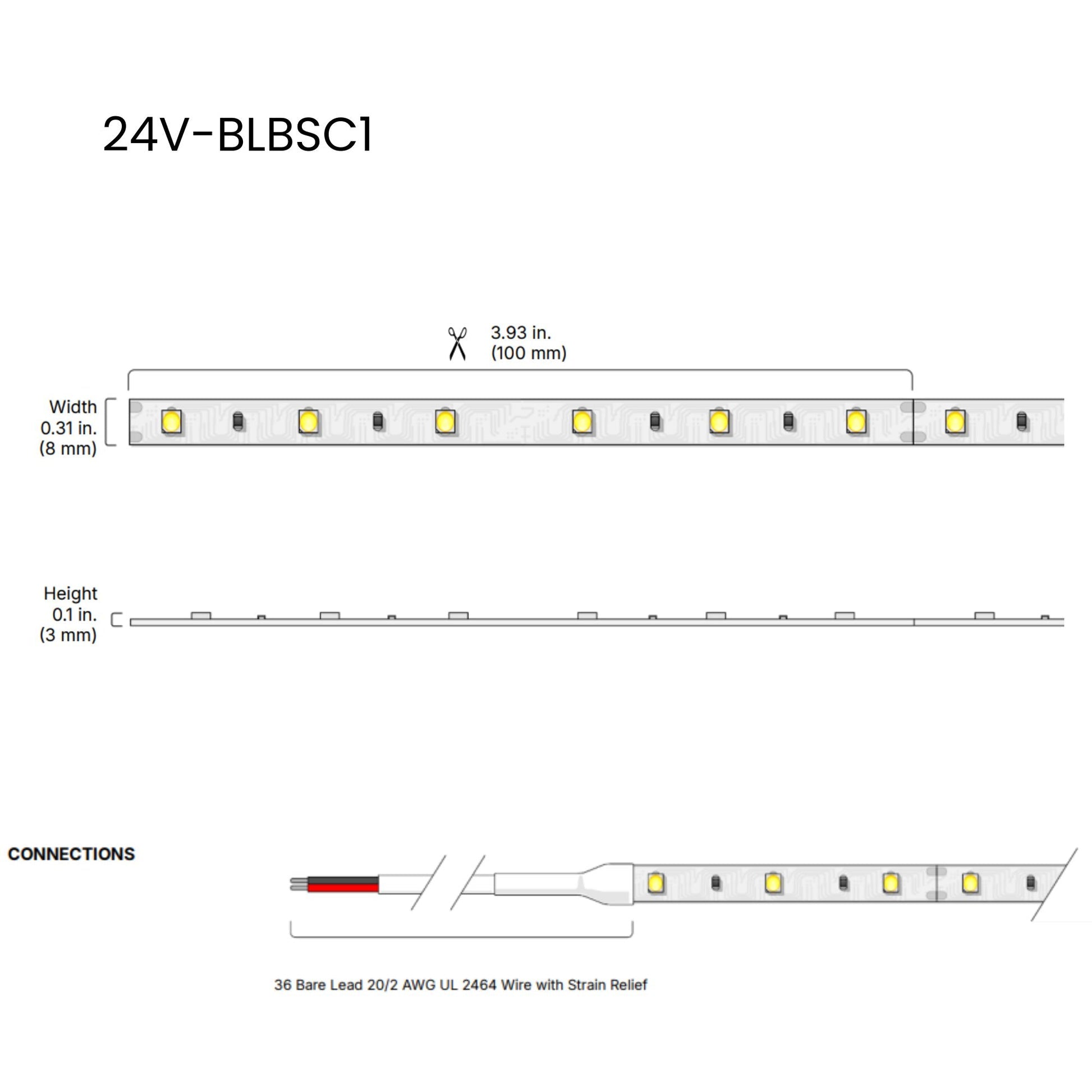

• Cuttable: Field cuttable every 3.93 in
• PCB Width: 0.31 in
• Beam Angle: 120�
• Dimmable: Yes (with compatible driver)
• Rated Hours: 50,000 Hours
• IP Rating: Indoor / Damp Location (IP20)
• Certifications: CE; RoHS; UL Listed; UL Component Recognized
• Package Quantity: 1
• UPC: 848333020797
• Product Family / Series: BLAZE 100
• Connection Type: Tape light
• Dimensions (L x W x H): 196.8 in x 0.31 in x 0.1 in
• Weight: 2 lb
