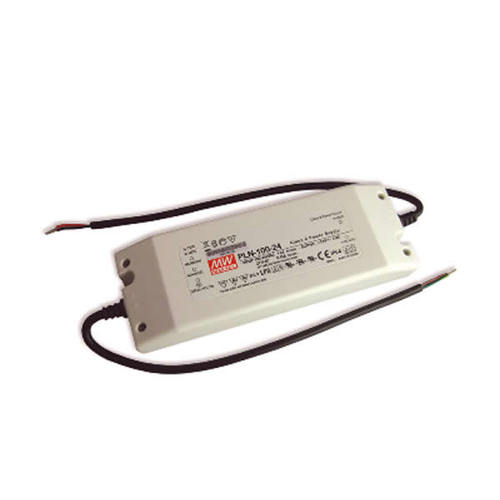

Diode LED DI-0954 Hardwired Constant Voltage LED Driver

Product Description

The Diode LED DI-0954 is a hardwired constant voltage LED driver designed for powering low voltage LED lighting. It is suitable for both indoor and outdoor applications, including wet and dry locations. This driver ensures reliable performance with various protective features.

• Short circuit, over current, over voltage, and over temperature protections
• Compatible with LO-PRO J-Box (large) DI-JBOX-LPL junction boxes
• Supports PWM and RGB(W) dimmers/controls

Product Highlights

The DI-0954 provides efficiency and reliability for your LED setups, ensuring consistent power and protection under various conditions.

Product Information

Standard Information

• Brand: Diode LED
• MPN: DI-0954

Technical Specifications

• Amperage Rating: 1.1/0.55/0.45 A
• Application: For low voltage LED tape light and fixtures, outdoor/indoor, wet/dry locations
• Color: White
• Height: 1.38 inches
• Input Voltage: 100 to 277 VAC
• Length: 7.87 inches
• Material: Plastic
• Mfg Standards/Approvals: CE Marked, CSA C22.2 NO 223-M91, cULus R/C 1310, UL Listed
• Output Voltage: 24 VDC
• Package Weight: 1.14 lb
• Power Factor: >0.95
• Power Rating: 96 W
• Temperature Rating: -22 to 122 degrees F
• Type: Hardwired Constant Voltage
• Width: 2.78 inches
