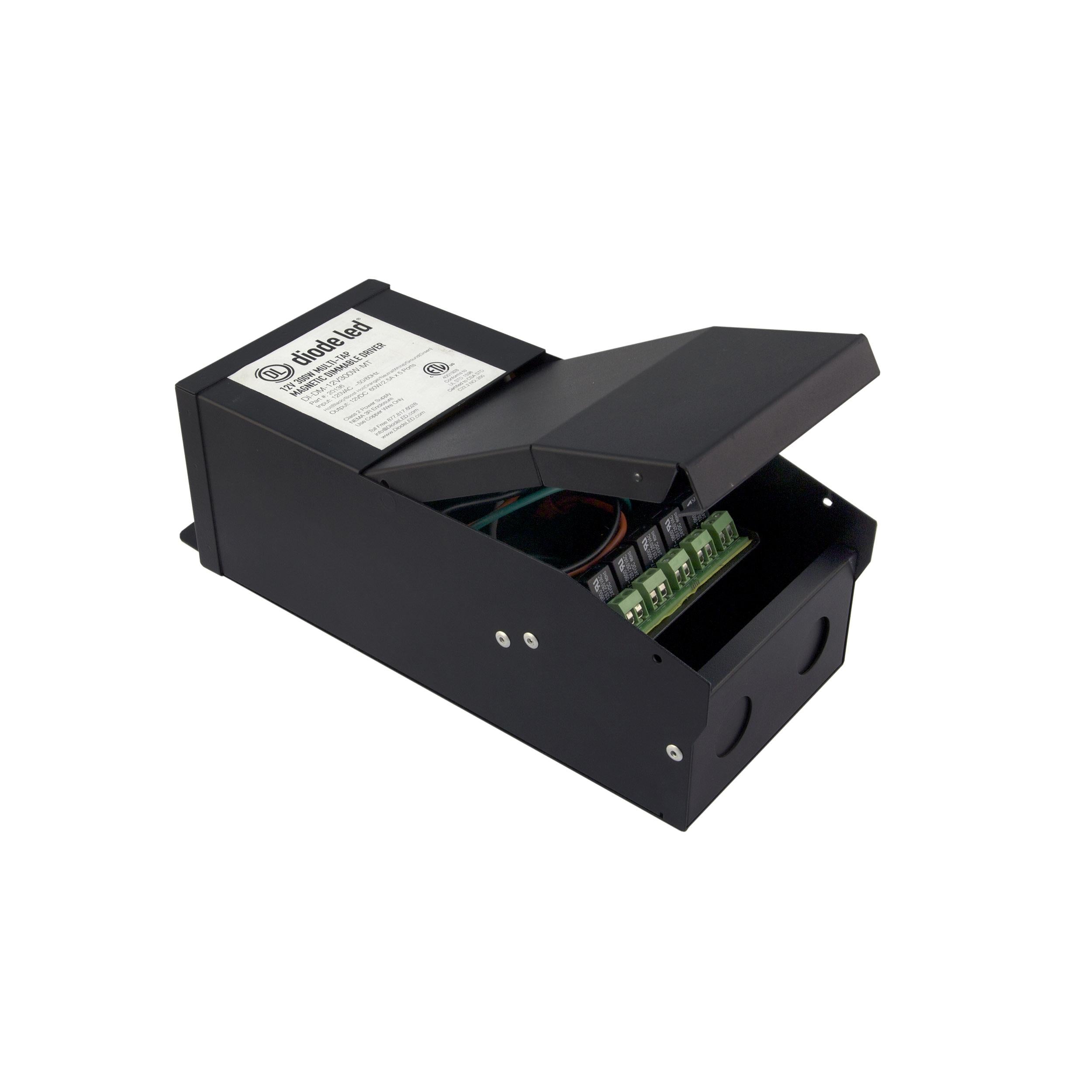

Diode LED DI-0922 Magnetic Dimmable LED Driver

Product Description

The Diode LED DI-0922 is a magnetic dimmable LED driver designed to operate low voltage LED fixtures in both indoor and outdoor settings. This driver is suitable for use in dry and wet locations, offering flexibility for various applications. The NEMA 3R enclosure includes a built-in junction box, simplifying installation in diverse environments.

• NEMA 3R enclosure with built-in junction box
• Fanless design with cooling through free air convection
• Dimmable with compatible MLV dimmers

Product Highlights

This unit provides an ambient temperature range of -4 to 104 degrees Fahrenheit and features a steel construction for durability. It operates at an input voltage of one hundred twenty volts alternating current (VAC) and produces a stable twelve volts direct current (VDC) output.

Product Information

Standard Information

• Brand: Diode LED
• MPN: DI-0922

Technical Specifications

• Power Rating: 60 W
• Output Voltage: 12 VDC
• Amperage Rating: 760 mA
• Input Voltage: 120 VAC
• Temperature Rating: -4 to 158 degrees Fahrenheit
• Weight: 3.2 lb
• Height: 2.3 in
• Width: 2.6 in
• Length: 6.6 in
• Material: Steel
• Mfg Standards/Approvals: ETL 4001928, UL 5085-1/5085-3
• Power Factor: 0.84
• Efficiency: 78.8%
