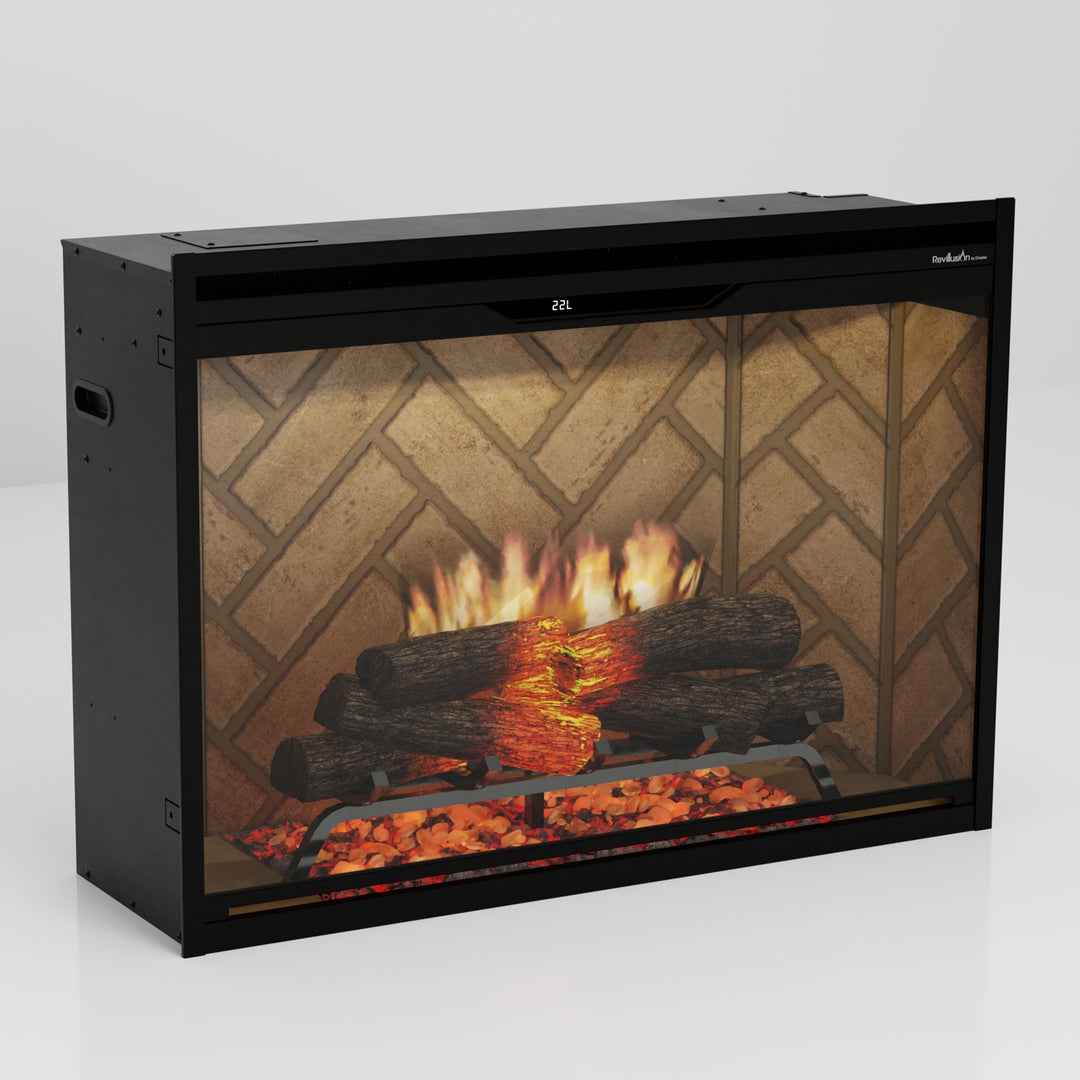

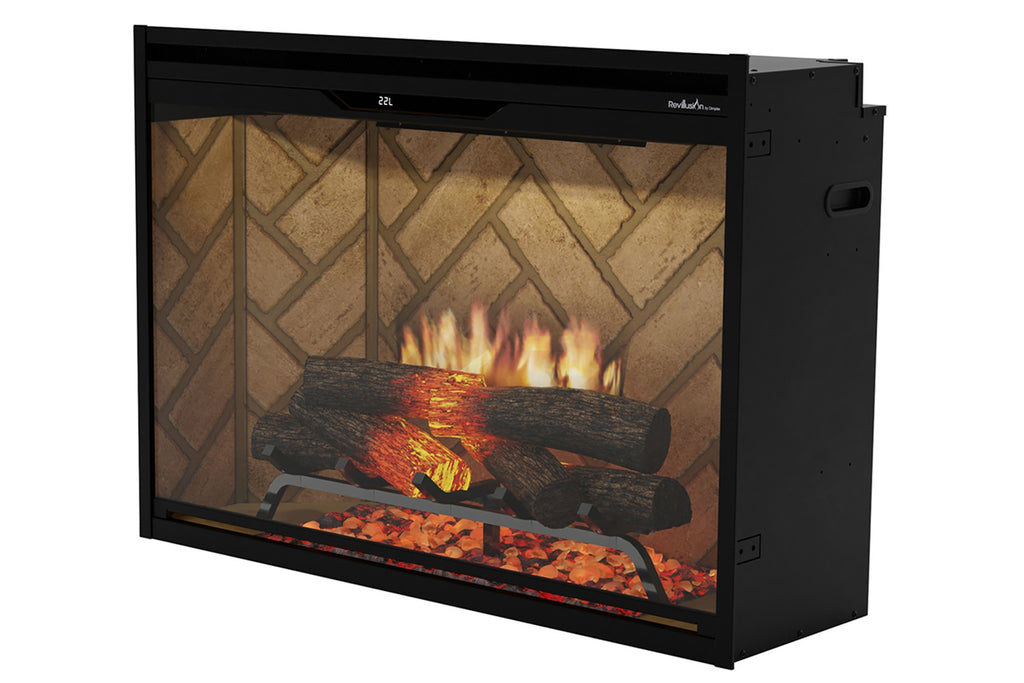

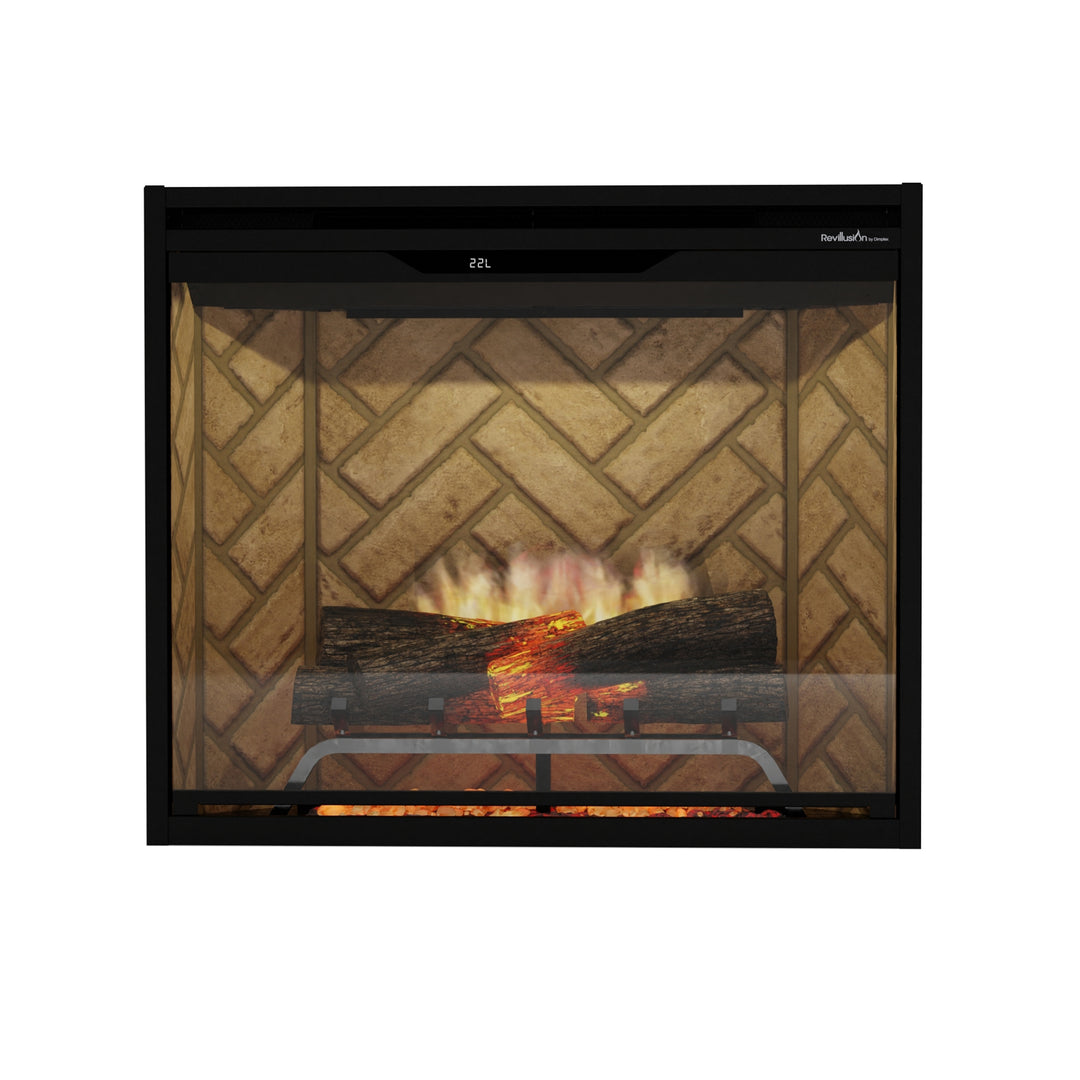

Dimplex 500005735 Revillusion 36 inches Built-In Electric Firebox with Herringbone Liner REBF36-WCFG

Product Description

The Dimplex 500005735 Revillusion 36" Built-In Electric Firebox with Herringbone Liner brings unused wood-burning fireplaces back to life and can be installed in a wall or pre-existing fireplace. It features larger, brighter, more random flames from within the Realogs, which are life-like hardwood-cast logs tiered on a grate. The reflective flame panel shows off the dazzling flames, making them appear to come from within the logs.

• Revillusion 36" fully-recessed, built-in firebox
• Larger, brighter, more random flames from within the Realogs
• Can be direct wired into 120V, 208V or 240V, 15 amp dedicated circuit

Product Highlights

This firebox includes a herringbone liner, enhanced tumbled glass ember bed, mood-maker remote, and tempered front glass. It can be operated manually or with the included multi-function remote.

Product Information

Standard Information

• Brand: DIMPLEX
• Manufacturer Part Number: 500005735

Technical Specifications

• Installation Type: Built-In
• Nominal Fireplace Size (in.): 36
• Style: Traditional
• Fuel Type: Electric
• Blower: Included
• Heat Type: Flame Only / Heat On / Off
• Connectivity: Not WiFi Compatible
• BTUs: 4400 / 6745 / 8794
• Watts: 1375 / 1975 / 2575

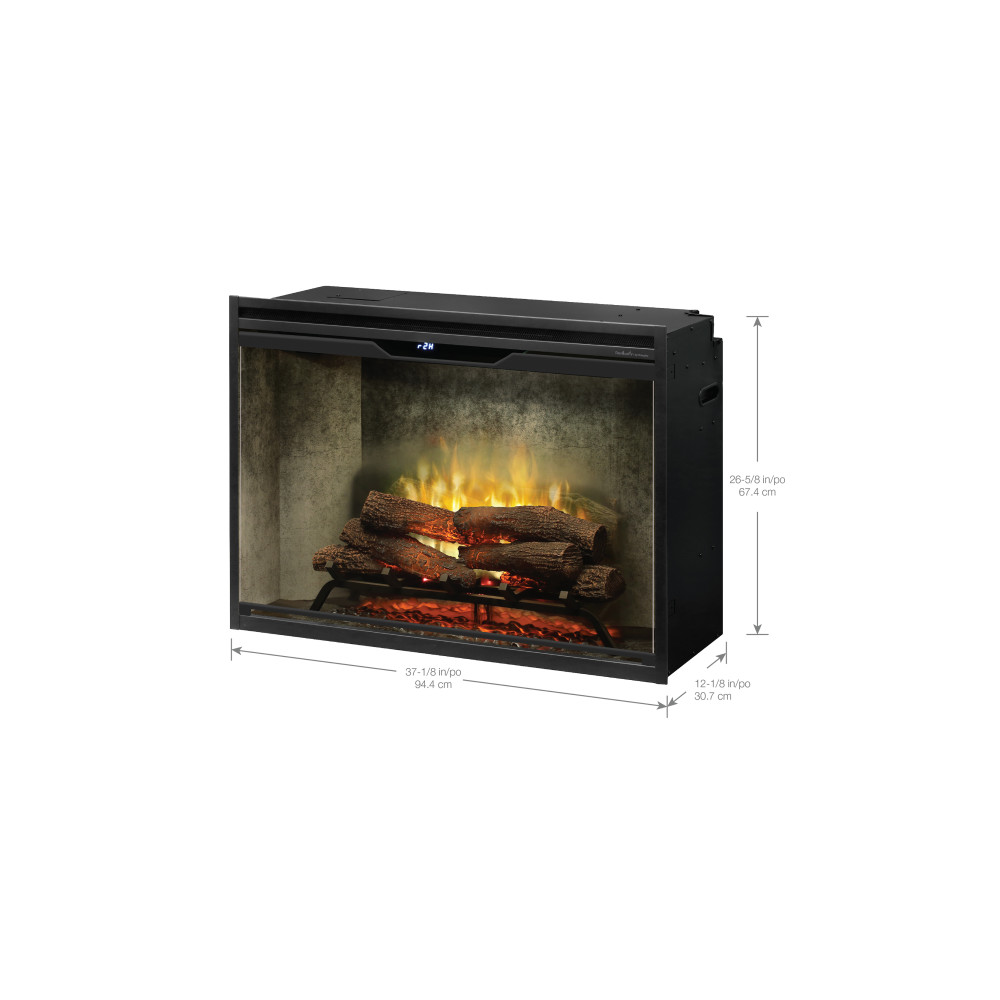

• Depth (in.): 12.125
• Width (in.): 37.125
• Height (in.): 26.675
• Framing Depth (in.): 12.5
• Framing Width (in.): 36.625
• Framing Height (in.): 26.188
• Voltage: 120 / 208 / 240 V
• Amps: Varies
• Connection: Hardwire or Plug-In (Kit Included)
• Plug Kit Included: Yes
• Log Set Included: Yes
• Remote Control Included: Yes
• 120V / 240V Plug-in or Hardwire: Yes
• Optional Custom Trim Kit: Yes
• Finish/Color: Black&Grey
• Media Bed: Log Set
• Installation: Built-in
• Heat Location: Front Top Vents
• Remote Control: Mood Maker
• Wiring: Wired In | Plug In
• Bulb Type: LED
• Heating Area: Up to 400 | 800 sqft
