Dimplex 500005448 Revillusion 36 inches Built-In Electric Firebox with Black Liner REV36-BL

Product Description

The Dimplex 500005448 Revillusion 36" Built-In Electric Firebox brings unused wood-burning fireplaces back to life and can be installed in a wall or pre-existing fireplace. It features larger, brighter, more random flames from within the Realogs. The reflective flame panel helps to show off the dazzling display of flames. With Dimplex's ThruView Full-Depth Design, you can see right through the flames.

• Features larger, brighter, more random flames from within the Realogs
• Realogs are life-like hardwood-cast logs and sit tiered on a grate
• Can be direct wired into 120V, 208V or 240V, 15 amp dedicated circuit

Product Highlights

The Revillusion firebox is virtually a zero clearance design. It includes a black liner, an enhanced tumbled glass ember bed, as well as mood-maker remote, tempered front glass and 120V plug kit.

Product Information

Standard Information

• Brand: DIMPLEX
• Manufacturer Part Number: 500005448

Technical Specifications

• Installation Type: Built-In
• Nominal Fireplace Size (in.): 36
• Style: Traditional
• Fuel Type: Electric
• Blower: Included
• Heat Type: Flame Only / Heat On / Off
• Connectivity: Not WiFi Compatible
• BTUs: 4400 / 6745 / 8794
• Watts: 1375 / 1975 / 2575

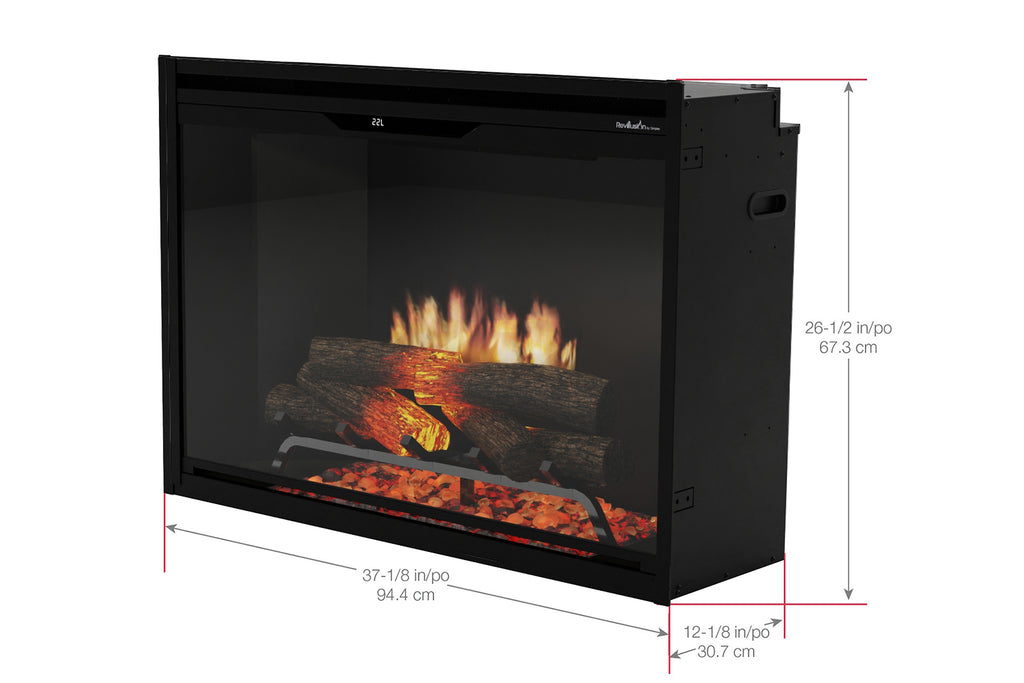

• Depth (in.): 12.125
• Width (in.): 37.125
• Height (in.): 26.625
• Viewing Width (in.): NA
• Framing Depth (in.): 12.5
• Framing Width (in.): 36.625
• Framing Height (in.): 26.188
• Voltage: 120 / 208 / 240
• Amps: Varies
• Connection: Hardwire or Plug-In (Kit Included)
• Brand: Dimplex
• Media Bed: Logs
• Installation: Built-in
• Heat Location: Front Top Vents
• Remote Control: Multi-Function
• Wiring: Direct Wire / Plug Kit
• Bulb Type: LED
• Flame Only Watts: 40
• Heating Area: Up to 1000 sqft
• Plug Kit Included: Yes
• Log Set Included: Yes
• 120V / 240V Plug-in or Hardwire: Yes
• Optional Custom Trim Kit: Yes
