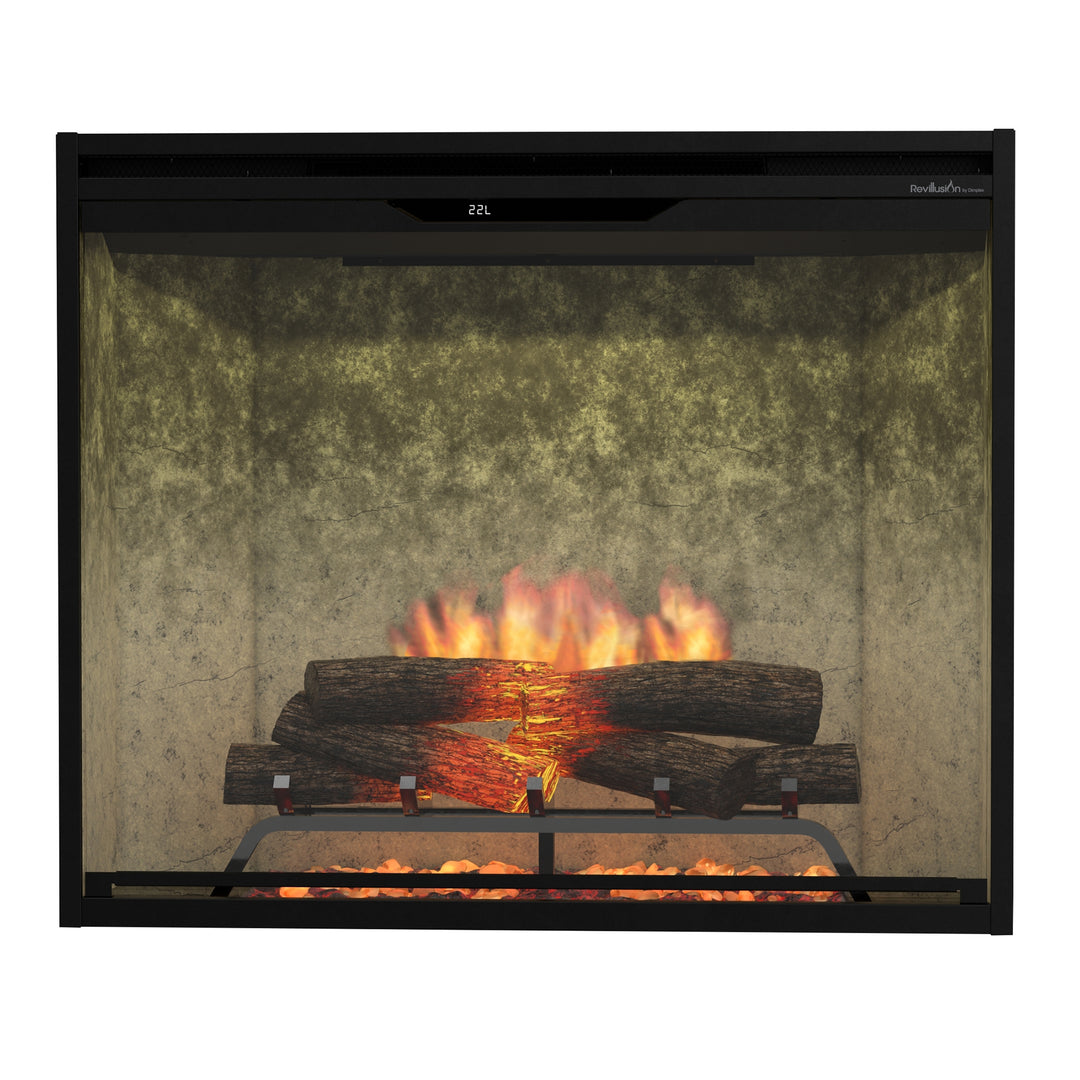

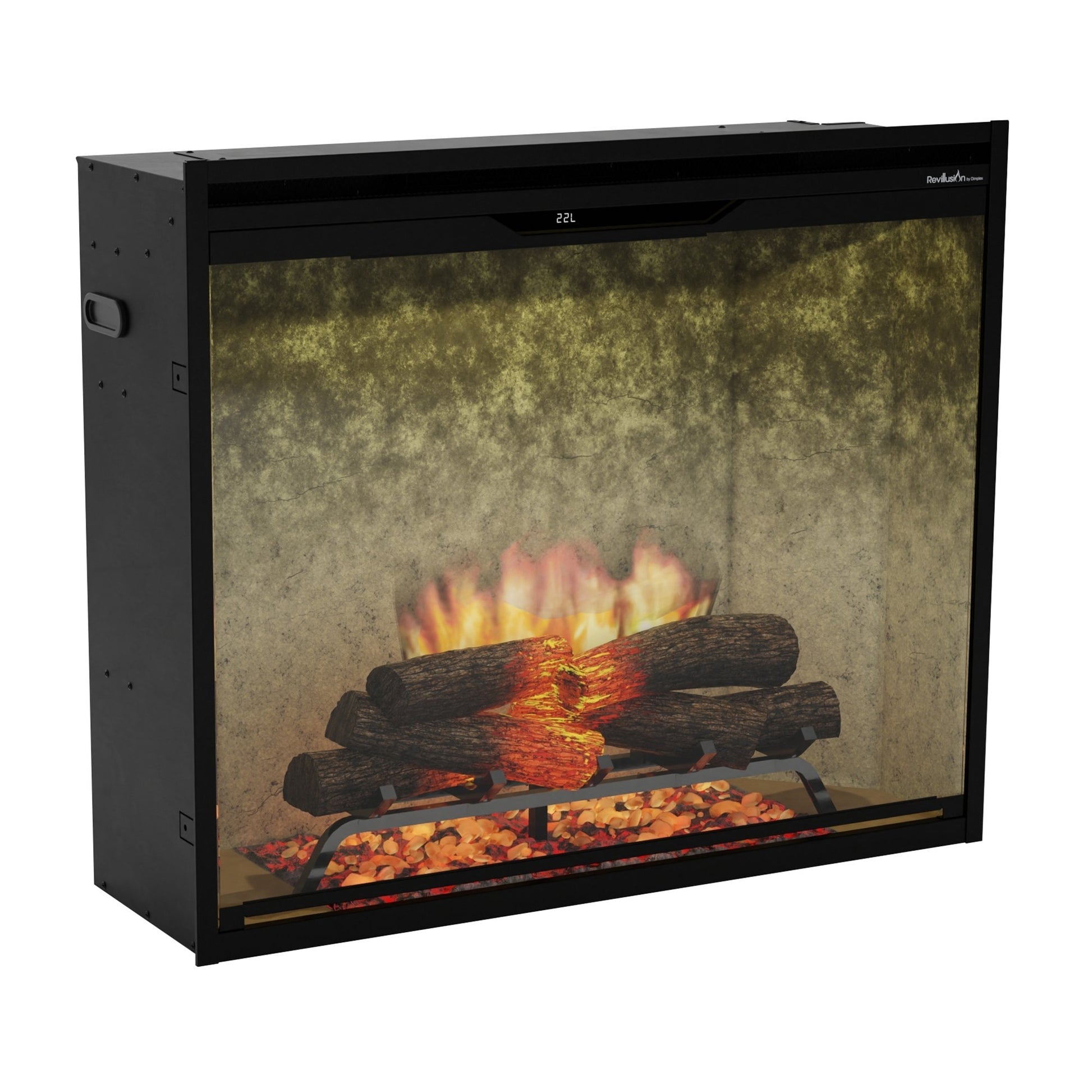

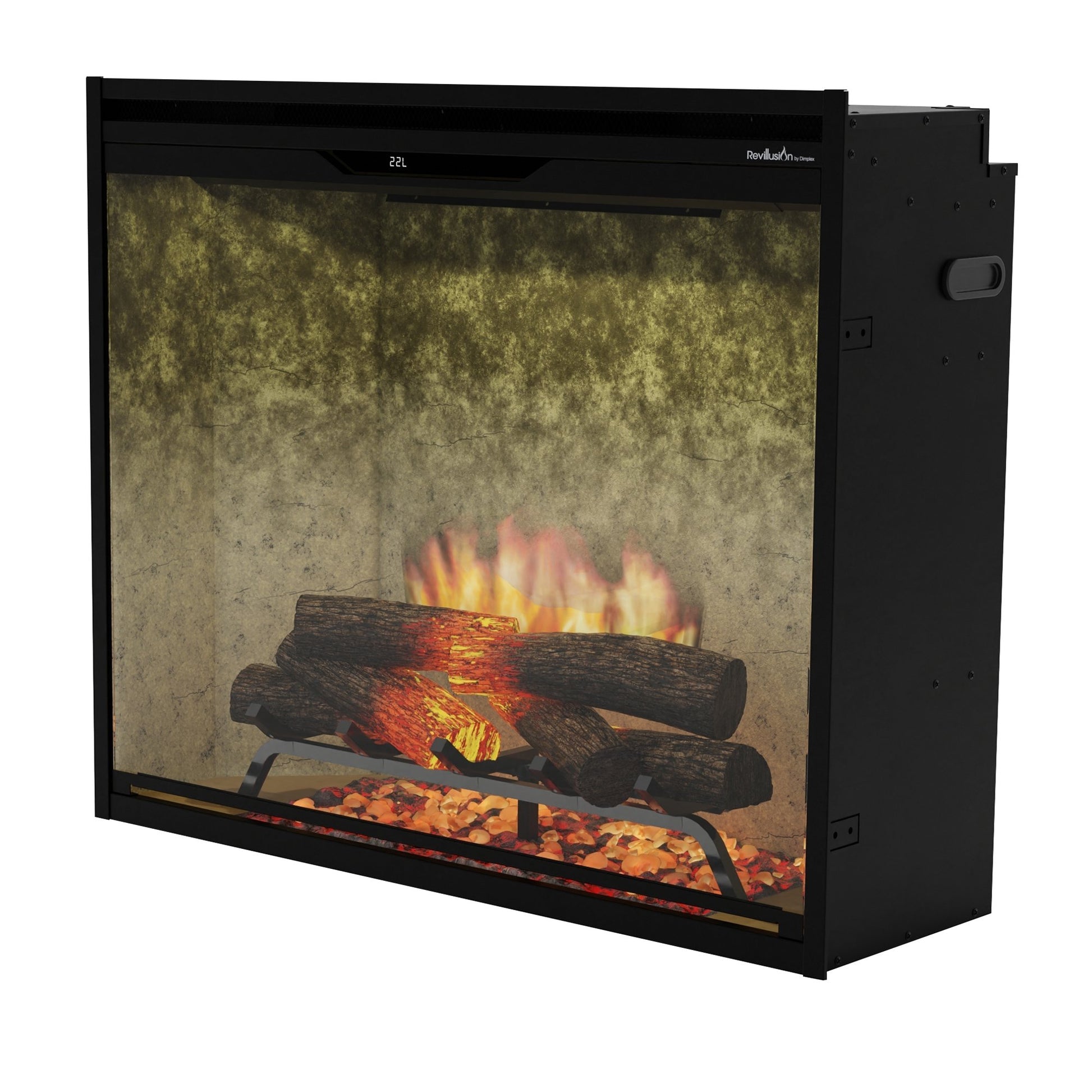

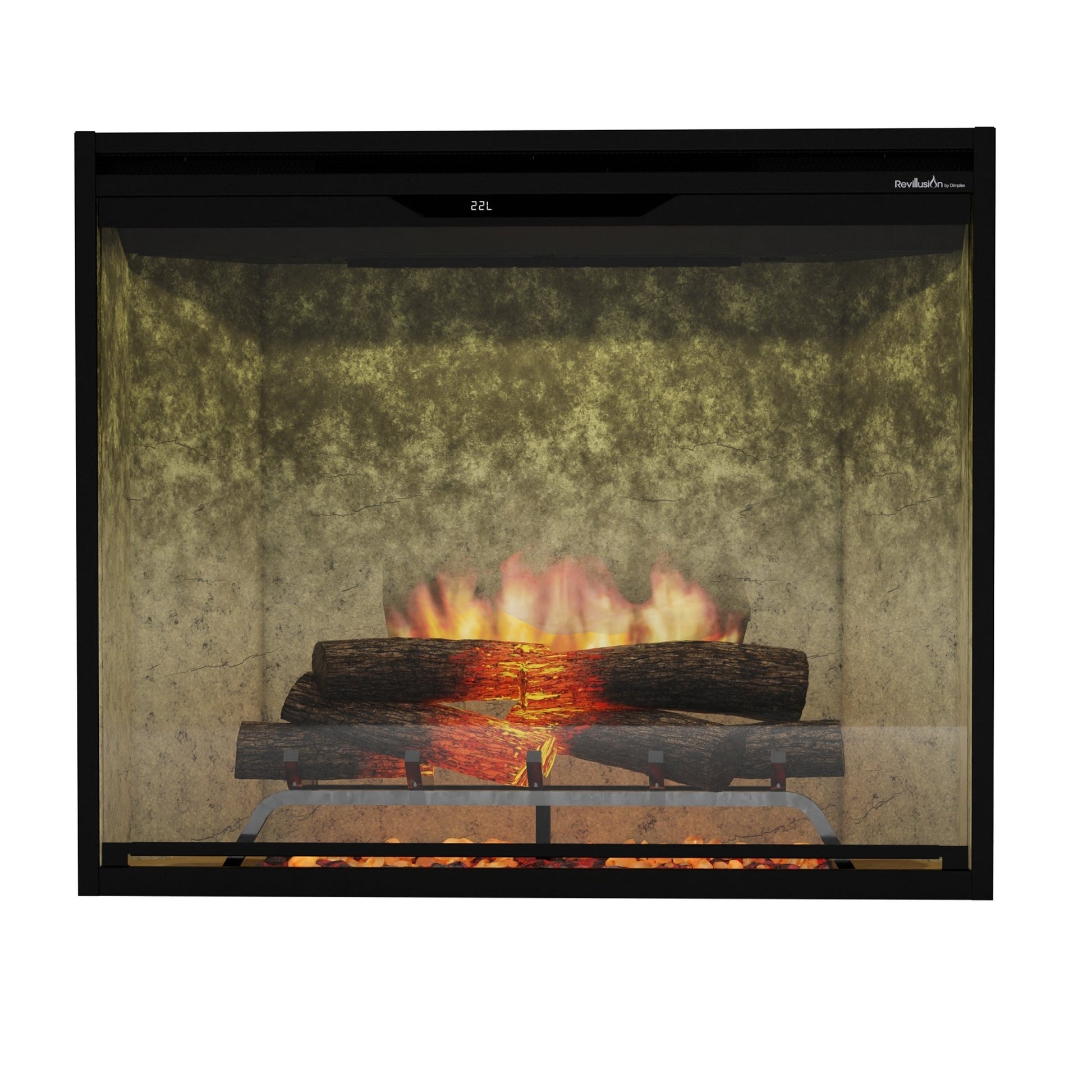

Dimplex 500005136 Revillusion 36 inches Portrait Built-In Electric Firebox with Weathered Concrete Liner REPLACES RBF36P-WCFG 500002399

Product Description

The Dimplex 500005136 Revillusion is a 36" portrait built-in electric firebox with a weathered concrete liner, designed for installation in a wall or pre-existing fireplace. It features larger, brighter flames from Realogs, life-like hardwood-cast logs tiered on a grate. The ThruView full-depth design allows viewing through the flames to the back of the firebox.

• Revillusion 36" portrait fully-recessed, built-in firebox
• Features larger, brighter, more random flames from within the Realogs
• Can be direct wired into 120V, 208V or 240V

Product Highlights

This electric firebox includes a weathered concrete liner, enhanced tumbled glass ember bed, mood-maker remote, and tempered front glass. It operates manually or with the included remote.

Product Information

Standard Information

• Brand: DIMPLEX
• Manufacturer Part Number: 500005136

Technical Specifications

• Installation Type: Built-In
• Nominal Fireplace Size (in.): 36
• Style: Traditional
• Fuel Type: Electric
• Blower: Included
• Heat Type: Flame Only / Heat On / Off
• Connectivity: Not WiFi Compatible
• BTUs: 4400/ 6745 / 8794
• Watts: 1375 / 1975 / 2575
• Depth (in.): 12.125
• Width (in.): 37.125
• Height (in.): 31
• Framing Depth (in.): 12.5
• Framing Width (in.): 36.625
• Framing Height (in.): 30.625
• Voltage: 120 / 208 / 240
• Amps: Varies
• Connection: Hardwire or Plug-In (Kit Included)
• Plug Kit Included: Yes
• Log Set Included: Yes
• Remote Control Included: Yes
• 120V / 240V Plug-in or Hardwire: Yes
• Optional Custom Trim Kit: Yes
• Heating Capacity: 1000 sq. ft.
• Flame Effect Realism: Ultra-realistic, patented, lifelike pulsating glow
• Adjustable Flame Brightness: Yes
• Thermostatic Control: Yes
• Multiple Heat Settings: Yes
• Timer Function: Yes
• Finish/Color: Weathered Concrete
• Media Bed: Logs
• Model: REV36P-WC
• Heat Location: Front Top Vents
• Wiring: Direct Wire / Plug Kit
• Bulb Type: LED
• Flame Only Watts: 40
• Heating Area: Up to 1000 sqft
