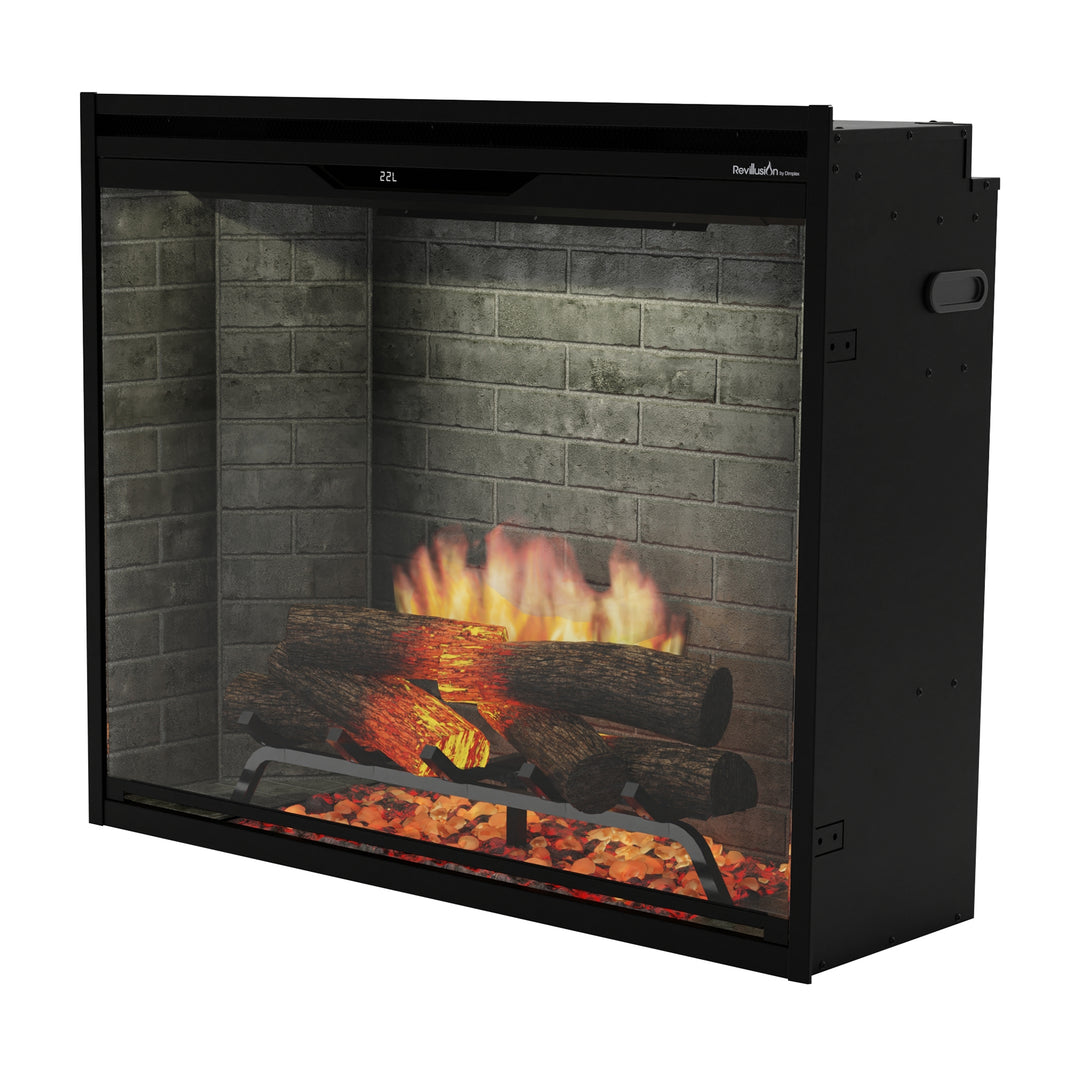

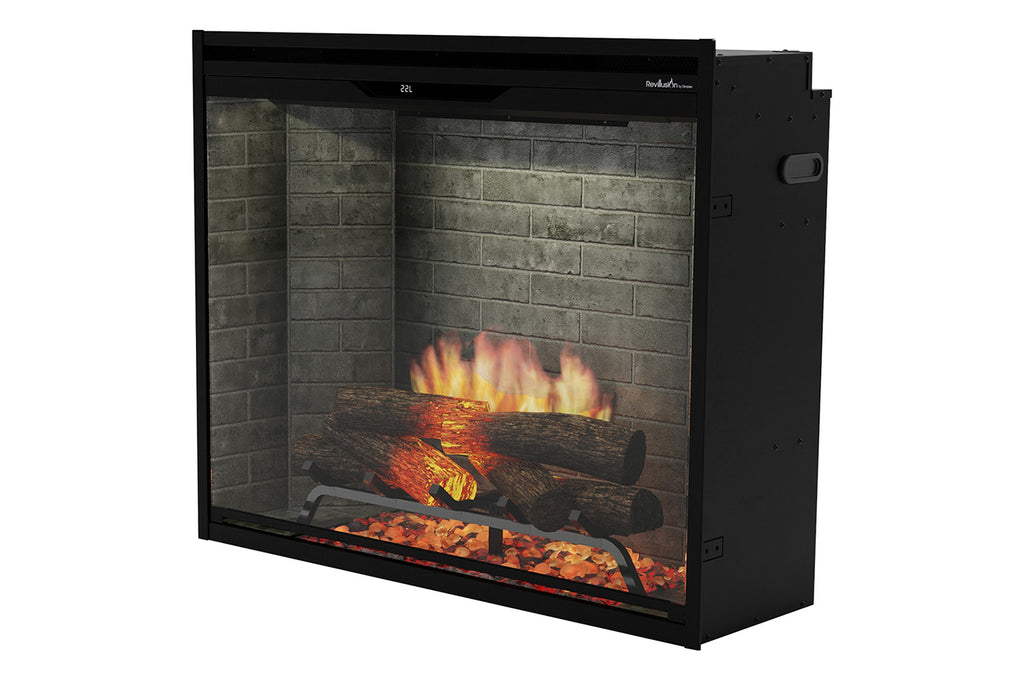

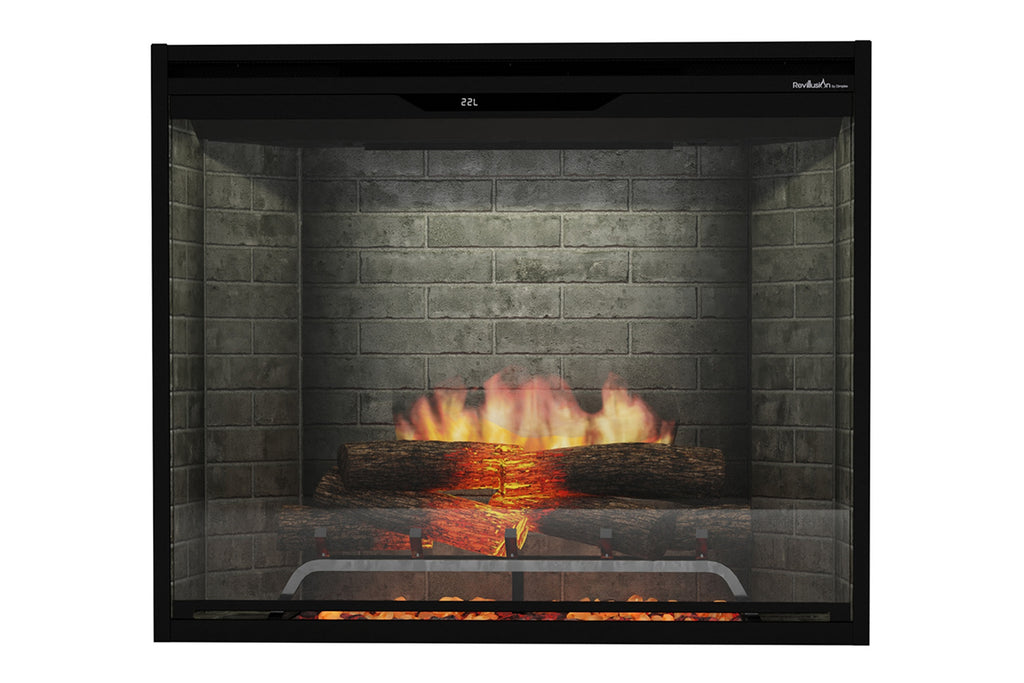

Dimplex 500005135 Revillusion 36 inches Portrait Built-In Electric Firebox with Neutral Brick Liner

Product Description

The Dimplex 500005135 Revillusion 36" Portrait Built-In Electric Firebox brings unused wood-burning fireplaces back to life. This electric firebox can be installed in a wall or pre-existing fireplace. It features brighter, more random flames from within the Realogs, which are life-like hardwood-cast logs tiered on a grate for greater depth. The firebox measures 37-1/8"w x 31"h x 12-1/8" d.

• Features larger, brighter, more random flames from within the Realogs.
• Can be direct wired into 120V, 208V or 240V, 15 amp dedicated circuit and operated manually or with the included remote.
• Includes a neutral (gray) brick liner, enhanced tumbled glass ember bed, mood-maker remote, tempered front glass, and a 120V plug kit.

Product Highlights

Enhance your space with the Dimplex Revillusion electric firebox, offering realistic flames and customizable lighting for a cozy ambiance.

Product Information

Standard Information

• Brand: DIMPLEX
• Manufacturer Part Number: 500005135

Technical Specifications

• Installation Type: Built-In
• Nominal Fireplace Size (in.): 36
• Style: Traditional
• Fuel Type: Electric
• Blower: Included
• Heat Type: Flame Only / Heat On / Off
• Connectivity: Not WiFi Compatible
• BTUs: 4400 / 6745 / 8794
• Watts: 1375 / 1975 / 2575
• Depth (in.): 12.125
• Width (in.): 37.125
• Height (in.): 31
• Viewing Width (in.): NA
• Framing Depth (in.): 12.5
• Framing Width (in.): 36.625
• Framing Height (in.): 30.625
• Voltage: 120 / 208 / 240
• Amps: Varies
• Connection: Hardwire or Plug-In (Kit Included)
• Plug Kit Included: Yes
• Log Set Included: Yes
• Remote Control Included: Yes
• 120V / 240V Plug-in or Hardwire: Yes
• Optional Custom Trim Kit: Yes
• Media Bed: Log Set
• Finish/Color: Black&Grey
• Heat Location: Front Top Vents
• Wiring: Wired In | Plug In
• Bulb Type: LED
• Heating Area: Up to 400 | 800 sqft
• Flame Only Watts: 40
• Model: REV36P
