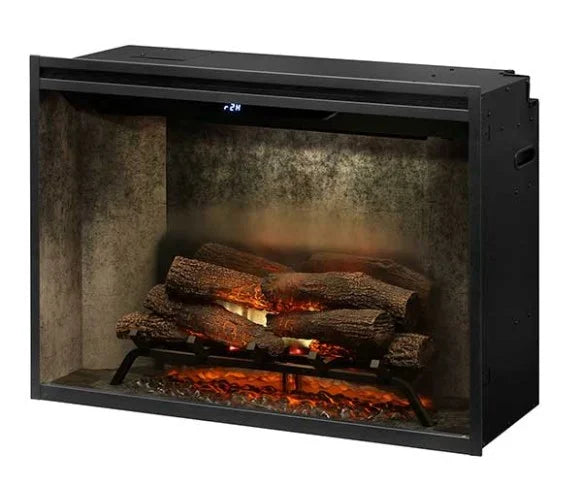

Dimplex 500002401 Revillusion 36-inch Built-In Firebox with Glass Pane and Plug Kit, Weathered Concrete

Product Description

The Dimplex 500002401 Revillusion 36-inch Built-In Firebox pairs lifelike flames with a modern Weathered Concrete interior. Configured with a front glass pane and includes a plug kit for straightforward power, no gas lines or venting required. Use with or without heat for year-round ambiance and fine-tune the appearance with the included controls.

• Revillusion Flame Technology produces ultrarealistic flames that mimic natural fire with the ability to dim the flames.
• Features Realogs handcrafted and molded from real wood logs, which contain an inner lit LED light that add a glowing, pulsating effect.
• Enjoy a full view of the fireplace interior with the ability to see clearly through the flames —no obtrusion.

Product Highlights

The Revillusion provides a clear, see-into-the-box view and protective glass finish making it a practical centerpiece for living rooms, rentals, and light-commercial spaces.

Product Information

Standard Information

• Brand: DIMPLEX
• Manufacturer Part Number: 500002401
• Country of Origin: Ireland

Technical Specifications

• BTUs: 4,400 | 6,745 | 8,794
• Display/Controls: Capacitive touch built-in controls
• Flame Only: Yes
• Framing Dimensions: 36 5/8" W x 26 3/16" H x 12 1/2" D
• Heat Operation: Primary-Heat - Option to use 240V supply for up to 8794 BTU
• Heater Only: Yes
• Heating Range: Up to 500 sq. ft.
• Installation: Front Sided
• Interior Surround: Weathered concrete (WC) interior
• Media: Realogs Plus
• Outdoor Rated: No
• Remote Features: Mood-maker Remote
• Technology: Revillusion Flame
• Voltage: 120 V | 208 V | 240 V
• Wattage: 1,375 W | 1,975 W | 2,575 W
• Wiring: Direct-wire (120, 208 or 240 volt circuit )
• Brand: Dimplex
• Width (Inches): 36-inch
• Overall Width (Inches): 30″ – 39″
• Installation Options: Fully Recessed
• Style: Traditional
• Shape: Square
• Media Option: Log
• Linear View: Standard
• Fireplace Interior: Weathered Concrete
• Amperage: 12.5 AMPs
