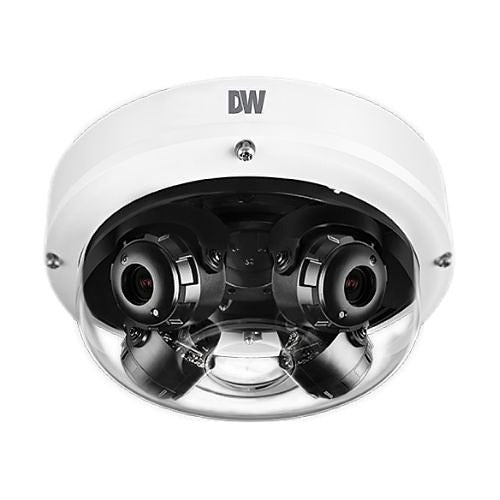

Digital Watchdog DWC-PVX20WATX 360 Panoramic Ip Camera

Product Description

The DIGITAL WATCHDOG DWC-PVX20WATX is a 360-degree panoramic IP security camera designed for wide-area surveillance coverage in demanding environments. The unit integrates four 5-megapixel image sensors with varifocal lenses, delivering a combined 20-megapixel capture capability across a full 360-degree field of view. Built-in Intelligent Video Analytics (IVA) enable on-camera event detection without requiring a separate analytics server. Rated IP67 for dust and water ingress protection, this camera is suited for outdoor and semi-exposed installation by licensed security integrators and surveillance technicians.

The DWC-PVX20WATX fits commercial and institutional surveillance applications where a single mounting point must cover an entire area without blind spots. Typical deployments include open parking structures, large retail floors, warehouse interiors, building perimeters, and public gathering spaces. The panoramic multi-sensor design reduces the number of cameras required to achieve full coverage, simplifying cabling and reducing head-end channel counts. It is intended for integration into IP-based video management systems compatible with Digital Watchdog infrastructure.

Key Features

• Four independent 5MP sensors provide a combined 20MP 360-degree panoramic view
• Varifocal lenses on each sensor allow field-of-view adjustment during installation
• On-board Intelligent Video Analytics (IVA) support event-based recording and alerting
• IP67-rated housing resists dust ingress and water jets for outdoor suitability
• Single-unit 360-degree coverage reduces camera count and installation complexity

Compatibility

Designed for integration into IP-based network video recording systems that support multi-sensor panoramic cameras. Consult Digital Watchdog documentation for confirmed VMS and NVR compatibility.

Installation Notes

Installation should be performed by a qualified security integrator or low-voltage technician familiar with IP camera commissioning. Power down all connected network infrastructure before making cable terminations. The IP67 rating requires proper sealing of conduit entries and cable penetrations to maintain the ingress protection rating after installation. Verify network switch PoE budget and port compatibility before mounting, as multi-sensor cameras typically draw higher power than single-sensor units.
