Dig S-305DC-10 S-305DC 6-12 VDC Solenoid & Adapters

Product Description

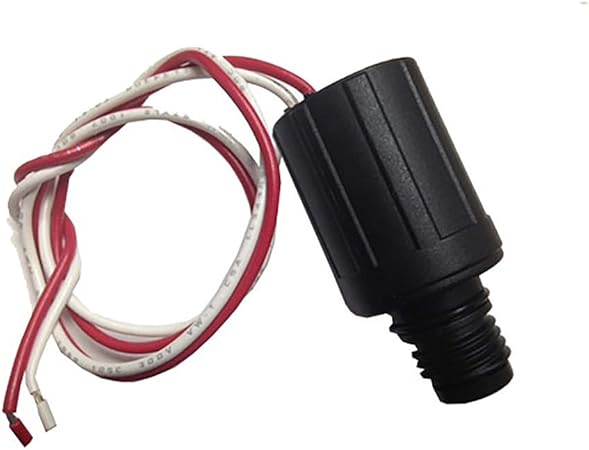

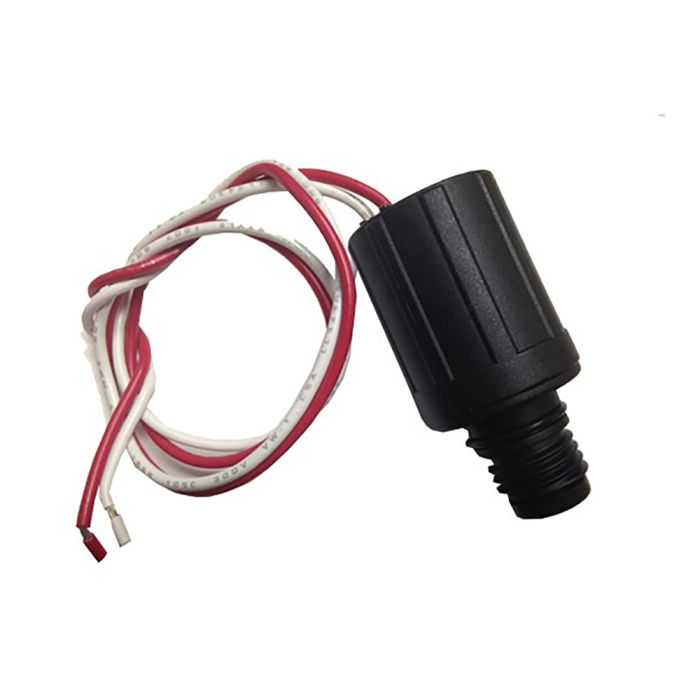

The DIG S-305DC-10 is an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate. It is used with DIG range of battery operated controllers, LEIT 2 ET system and others. With seven solenoid adapters available, the S-305DC can replace conventional solenoids on most valves using DC power.

• Adaptable to a wide range of valves using one of our seven adapters
• Potted technique for sealed, waterproof construction
• Two 16 gauge, color-coded 18 wires

Product Highlights

Adaptable to a wide range of valves, the S-305DC-10 features a sealed, waterproof construction and is designed for use with battery operated controllers and the LEIT 2 ET system.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: S-305DC-10

Technical Specifications

• Latching Solenoid: 6-12 VDC, two-way, normally closed
• Solenoid thread: 11/16"-12 UN
• Operating pressure: 10-150 PSI (.7-10.5 BAR)
• Coil Resistance: 4.7 +/- 0.3 Ohms
• Pulse Width: minimum 10 mSec
• Operation mode: Red + and white – to latch open Red – and white + to released and closed
• Lead wires: 18” (45 cm) UL-1015, AWG 16, 300V- red and white wires
• Diameter: 1.225” (3.1 cm)
• Overall Length: 2.5” (6.35 cm) without adapter
• Control orifice: .065 (1.7 mm)
• Temperature range: 32°F to 170°F (3°C to 77°C)
• Solenoid housing: glass-reinforced nylon
• Inside housing stainless steel parts: 430F stainless
• Plunger rubber cap: EPDM
• O-ring: Buna-N
• Brand Name: DIG
• Manufacturer Part Number: S-305DC
• Material Type: Plastic
• Power Source: Battery
• Leads: 18” (46 cm) AWM 1007 / 1569 16 AWG 300V VW-1- red/white
