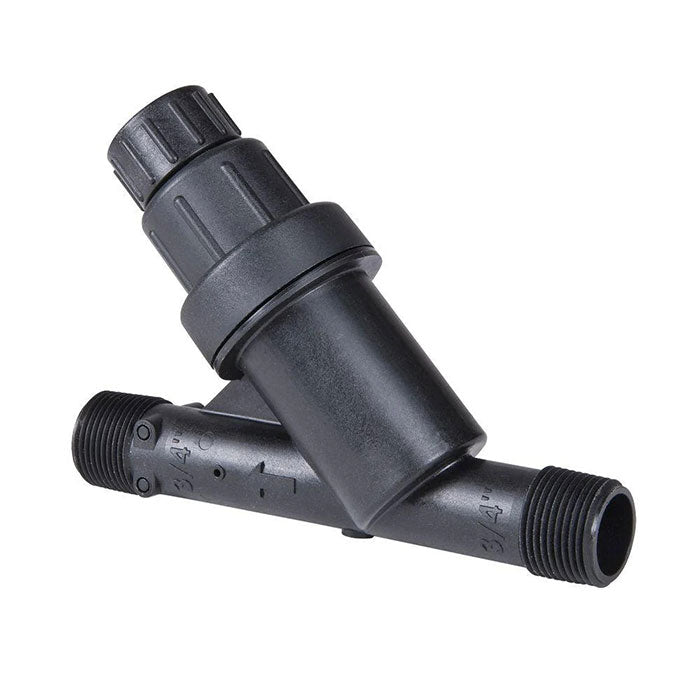

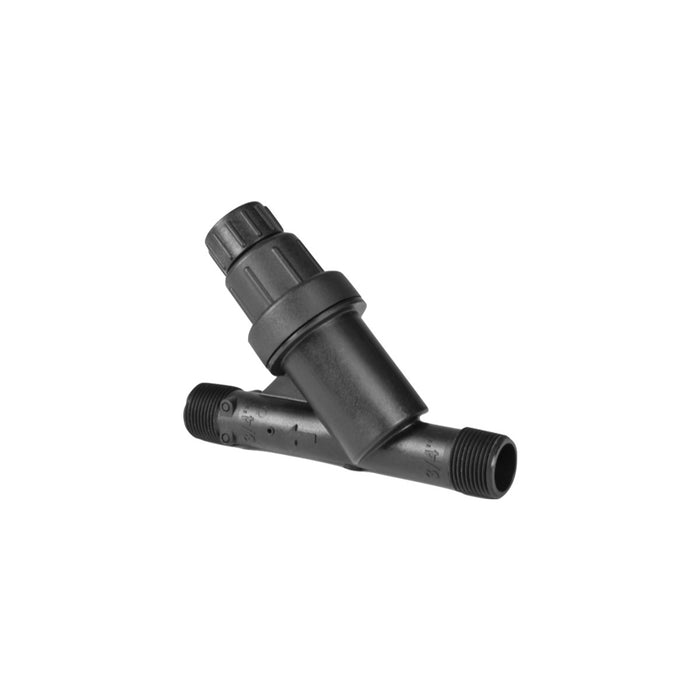

Dig PRF-25-075 3/4 feet' MPT 25psi Pressure-Regulating Filter

Product Description

The DIG PRF-25-075 is a two-in-one, 3/4" filter and pressure regulator that combines a 155-mesh stainless steel filter with a 25-PSI pressure regulator. Its compact design fits in smaller-sized areas, allowing several drip zones inside an irrigation box. It is best installed upstream of the control valve for reliable operation.

• Combines two units in one for faster and easier installation.
• All-purpose screen filter with built-in pressure regulator for drip irrigation or micro sprinkler systems.
• One-piece construction with a 155-mesh stainless steel screen filter and a pressure regulator.

Product Highlights

This filter reduces incoming water pressure and protects downstream drip irrigation components. The stainless steel screen resists most common chemicals and is easy to clean.

Product Information

Standard Information

• Brand: DIG
• Manufacturer Part Number: PRF-25-075
• Country of Origin: China

Technical Specifications

• Operating pressure: 20 to 120 PSI (up to 8.3 bar)
• Screen: stainless steel 155 mesh/100 micron
• Preset pressure rating: 25 PSI (1.7 bar)
• Temperature range: up to 130 0F
• Inlet and outlet size: 3/4" MNPT
• Material Body: glass-filled polypropylene
• Material Screen: stainless steel
• Mesh Size: 155 Mesh
• Micron Rating: 100 Micron
• Pipe Size: 3/4 in.
• Connection Type: Mipt
• Housing Material: Plastic
• Item: Filter
• Type: Pressure Regulating
• Brand Name: DIG
• Model: PRF-25-075
• Country of Origin: China
• Flow rate: 3/4” up to 6 GPM
• Irrigation Part Type: Pressure Regulators, Screen Filter
• Hardware Diameter: 3/4 Inch
