Dig P09-155 Wye Filter 155 Mesh 3/4 Inch 8 Gpm

Product Description

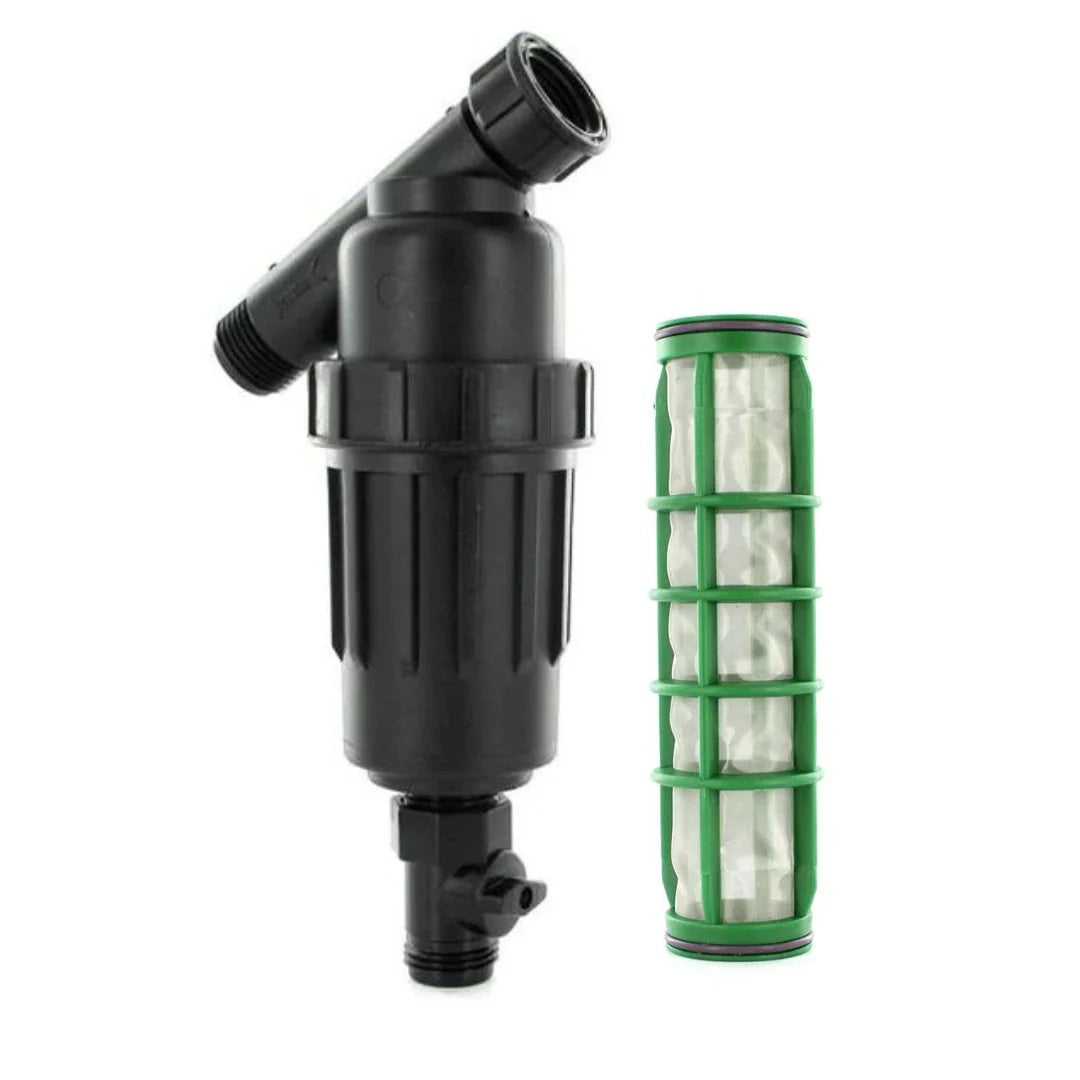

The DIG P09-155 is a 3/4-inch wye-style inline screen filter designed for drip and micro-irrigation systems. It uses a 155-mesh filtration screen to block sediment, debris, and particulate matter that can clog emitters, drip lines, and micro-spray heads. Rated at 8 gallons per minute (GPM), it connects via female hose thread (FHT) inlet and male hose thread (MHT) outlet, making it compatible with standard garden hose and irrigation fittings. Irrigation contractors and landscape technicians install this filter at the head of a drip zone or at the point of connection to protect downstream components.

This filter is suited for residential and light commercial drip irrigation, micro-spray, and bubbler systems where water quality requires mechanical prefiltration. It is typically installed at the zone valve outlet or at the beginning of a lateral line. The wye body orientation allows the screen to be serviced without fully disassembling the line, which reduces maintenance time during the irrigation season.

Key Features

• 155-mesh screen captures fine particulate that damages drip emitters and micro-spray nozzles
• 3/4-inch FHT x MHT connections fit standard hose-thread irrigation fittings without adapters
• 8 GPM flow rating suits typical residential drip and micro-irrigation zone demands
• Wye body design allows screen access for cleaning without full line disassembly
• Compact and lightweight at 0.36 pounds for easy inline installation

Compatibility

Designed as an OEM-style inline screen filter for 3/4-inch hose-thread drip and micro-irrigation systems using standard FHT x MHT connections.

Installation Notes

This filter is installed by irrigation technicians as part of a drip or low-volume irrigation system. Shut off the water supply and relieve line pressure before installing or servicing the filter. Hand-tighten FHT and MHT connections, then snug with pliers — do not overtighten, as this can crack the filter body. Follow local plumbing and irrigation codes for backflow prevention requirements upstream of the filter.

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: FHT x MHT
• Mesh Rating: 155 Mesh
• Flow Rate: 8 GPM
• Weight: 0.36 pounds

Standard Information

• Brand: DIG
• Manufacturer Part Number: P09-155
